BOP 13-2 set

Two-Speed Hand Drill up to 13 mm

BOP 13-2 set
BOP 13-2 set
BOP 13-2 set
BOP 13-2 set
BOP 13-2 set
BOP 13-2 set

BOP 13-2 set
Two-Speed Hand Drill up to 13 mm

Universal two-speed drill, up to 13 mm with ideal speed range for steel and stainless steel.

Product number: 7 205 55 61 00 0

BOP 13-2 set

Add to Shopping Cart

Details

  • Mechanical two-speed gearbox for optimum speed adjustment for a wide range of uses.
  • FEIN high-power motor with good speed stability for constant drilling progress in almost any application.
  • Metal gear head and distortion-free barrel-type motor housing for superb service life.
  • Reversible.
  • High-precision metal drill chuck.
  • High concentricity.
  • Self-tightening drill chuck clamping jaws.
  • FEIN Sensitive Handle.
  • Variable speed control.
  • 5 metre cable.
  • 43 mm diameter collar for use in the drill jig.

Technical data

Technical data
Input
550 W
Output
300 W
Speed, full load
0 - 440 / 0 - 1,300 rpm
Speed, no load
0 - 680 / 0 - 2,200 rpm
Torque at max. output power
20 / 7 Nm
Stall torque
50 / 16 Nm
Drill chuck clamping width
1.5 - 13 mm
Capacity in steel Ø
13 mm
capacity in Ø stainless steel
13 mm
Capacity in alu Ø
16 mm
Capacity in wood Ø
37 mm
Tapping
M 10
Thread of spindle
1/2"-20 UNF
Collar Ø
43 mm
Width across corners
23 mm
Width across corners
23 mm
Cable with plug
5 m
Weight according to EPTA
2.00 kg
Vibration and sound emission values
Sound pressure level LpA
82 dB
Uncertainty of measured value KpA
3 dB
Sound power level LWA
93 dB
Uncertainty of measured value KWA
3 dB
Sound peak value LpCpeak
96 dB
Uncertainty of measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh,D 3,0 m/s²
Uncertainty of measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 11,16 MB

Download Manual instruction (11,16 MB)

Price includes

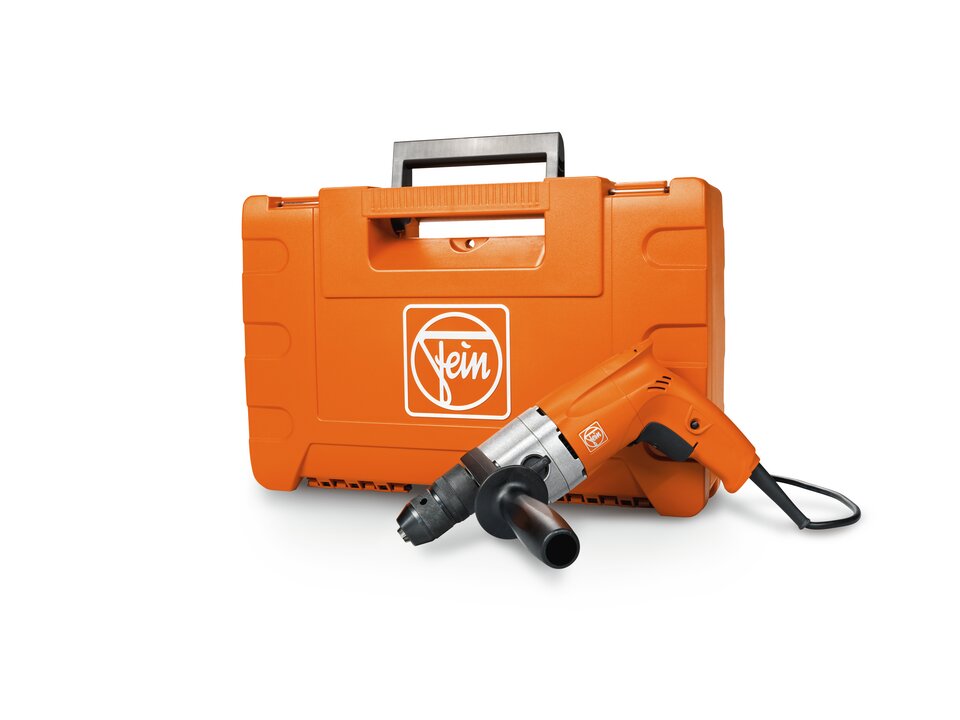

  • 1 SUPRA SKE single sheath metal quick clamping drill chuck
  • 1 additional handle
  • 1 plastic carrying case

Application

Twist drilling
well suitable
Tapping
well suitable
Countersinking
well suitable
suitable
well suitable

Product feature

  • Reversible rotation
  • Acceleration electronics
