Fabricator M12 Tapping-Set 3/4 in Weldon
Fabricator M12 Tapping-Set 3/4 in Weldon

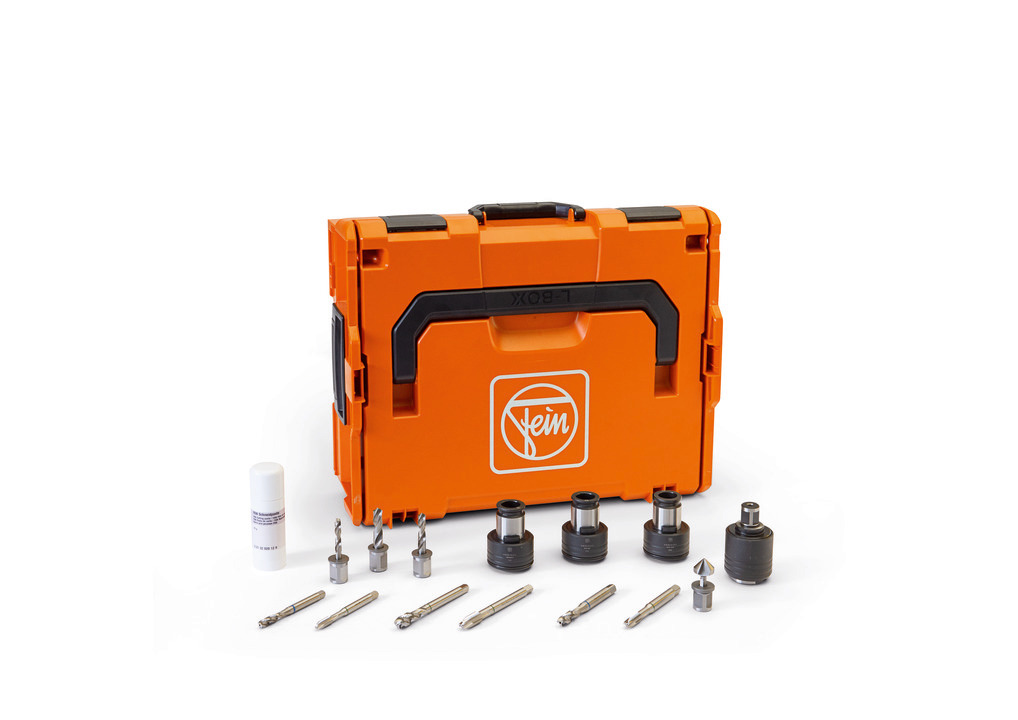

User set comprising a large number of tapping accessories in an L-BOXX
Product number: 3 39 01 680 40 0
Details
- The most common tapping drills for through holes and blind holes in one set. Perfect for metal and machine construction.
- Tapping quick change chuck: Can be used with all core drills with reverse running and make your tapping even more precise and more efficient.
- Tapping inserts and tool tapping drills: All from one source, in one set for M8, M10, M12 tapped bores in through holes and blind holes.
- L-BOXX system: Keep things stowed clearly, tidily and safely. Thanks to the tray for small parts, there is room for all accessories and the L-BOXXs can also be joined together and stacked with ease.
Downloads
Price includes
- 1 x size 2 tapping quick-change chuck
- Tapping collet with safety clutch (1 each of M8 / M10 [DIN 371], M12 [DIN 374/376])
- HSS machine taps for through holes, 1 each of M8 / M10 [DIN 371B], M12 [DIN 376B]
- HSS machine taps for blind holes (1 each of M8 / M10 [DIN 371C], M12 [DIN 376C])
- HSS twist drills, 35 mm cutting depth (1 each of diameter 6.8 / 8.5 / 10.2 mm)
- 1 x HSS 90° countersink bit, diameter 16.5 mm
- 1 cutting paste
- 1 L-BOXX 136 for accessories
