Slitting Shear up to 14 gauge

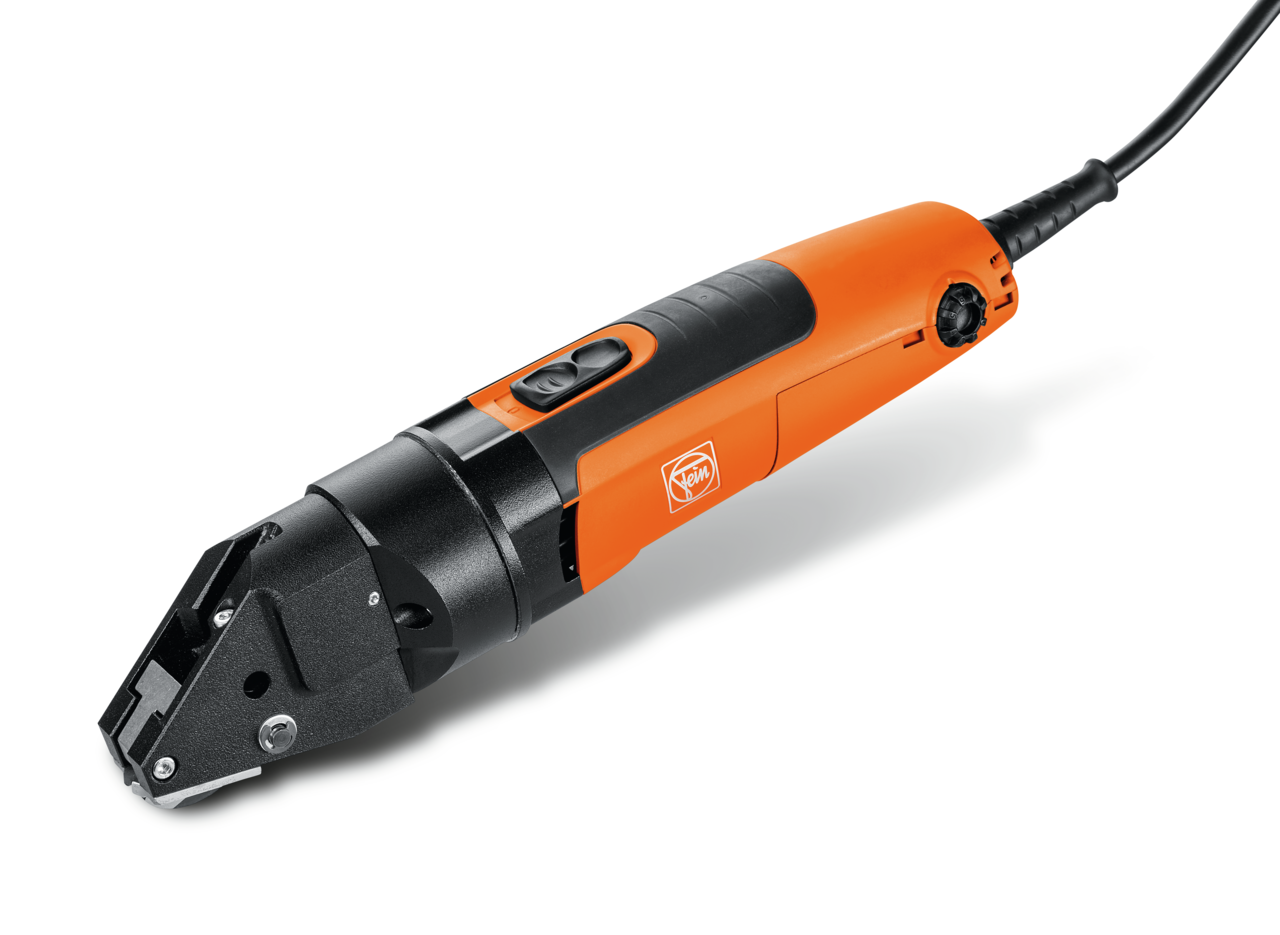

High-performance slitting shears for stainless steel processing, spiral seam pipes and profiles.

Product number: 7 230 33 61 09 0

BSS 2.0 E

Add to Shopping Cart

Details

  • The high-strength blades make it ideal for stiffening profiles in drywall work and cuts in stainless steel.
  • Durable cutting head for stationary use. The tool can be easily clamped into a vice.
  • Left and right curve cuts and distortion-free cutting possible with one continuous chip.

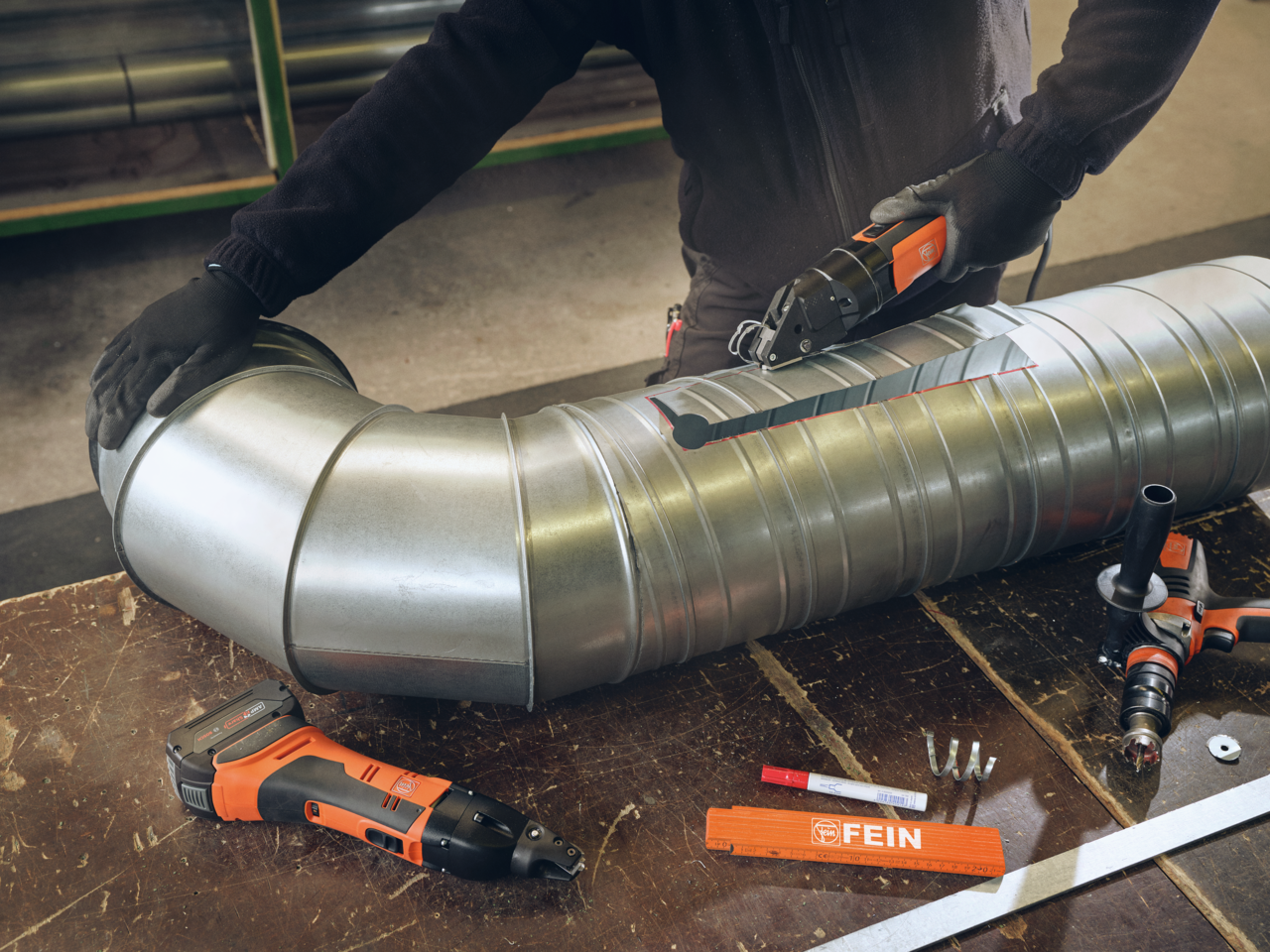

  • Powerful motor with enough torque even for the most difficult jobs. Suitable for spiral-seam pipes with connecting folds 4 x 1/32 in [4 x 0.75 mm].
  • Ideal for trimming profiled sections.
  • Best suited for trimming and cutting.
  • Motor with outstanding performance and durability.
  • Cutting blade with outstanding service life.
  • 16 ft. [5 m] cable.
  • Clean swarf removal prevents injuries or scratches on workpieces.
  • Stainless steel up to 16 gauge [1.5 mm].
  • Wide range of accessories.

Technical data

Technical data
Power consumption
350 W
Power output
210 W
Strokes
1,300 - 2,600 spm
Cutting speed
6.6 [2] - 13.1 [4] ft/min[m/min]
Steel 58,000 lbf/in²
0/1 [2] in[mm]
Steel 87,000 lbf/in²
1/16 [1.5] in[mm]
Steel 116,000 lbf/in²
0/1 [1.3] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
1/8 [3] in[mm]
Cutting width
3/16 [5] in[mm]
Radius of smallest curve
9-3/4 [245] in[mm]
Immersion dia.
1/2 [12] in[mm]
Cable with plug
16.4 [5] ft[m]
Weight
3.75 [1.70] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
76,2 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
87,2 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
91 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
10,8 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 4,99 MB

Download Manual instruction (4,99 MB)

Price includes

  • 1 cutting blade (31308123008), mounted
  • 1 pair of cutting bars (31308113009), mounted

Application

Coil cuts
well suitable
Inside cutouts
well suitable
Profile cuts
well suitable
Notches
well suitable
suitable
well suitable

Product feature

  • Variable speed
