ABSS 18 1.6 E AS Set
Cordless slitting shears for up to 1.6 mm
ABSS 18 1.6 E AS Set
Cordless slitting shears for up to 1.6 mm
Handy, maneuverable and fast cordless slitting shears for cuts and cut-outs in sheet metal up to 16 gauge [1.6mm] in thickness. Includes BC 1880 CV AS charger, 2x CORE 18V 4.0 Ah AS lithium-ion batteries, additional curve cutter, permanent marker and painter’s tape.
Product number: 7 130 05 65 09 0
Details
- 590 [180] ft[m] cutting capacity (in 22 [0.8] gauge[mm] sheet metal) with one battery charge (4 Ah).
- Rapid performance due to excellent view of the cutting line through the open-front cutting head.
- Left and right curve cuts and distortion-free cutting possible with one continuous chip.
- QuickIN for rapid, tool-free blade changing, with no further adjustment required.
- Excellent ergonomics and low weight.
- Cutting blade with outstanding service life.
- Proven MultiMaster motor with outstanding power and durability.
- Compatible with AMPShare/Bosch Professional 18 V batteries from 2008 on.
- Maximum cutting speed with AMPShare 18V batteries: COOLPACK 2.0 technology ensures a longer battery service life in comparison to batteries without COOLPACK technology. It makes longer operation times possible. ECP protects batteries against overloading, overheating and deep discharge.
- Easily transported with our stackable L-BOXX system.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
Technical data
Technical data
Battery voltage
18 V
Battery capacity
4 Ah
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Strokes
2,200 - 3,500 spm
Cutting speed
16.4 [5] - 26.2 [8] ft/min[m/min]
Steel 58,000 lbf/in²
0/1 [1.6] in[mm]
Steel 87,000 lbf/in²
3/64 [1.2] in[mm]
Steel 116,000 lbf/in²
0/1 [0.8] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
3/32 [2] in[mm]
Cutting width
3/16 [5] in[mm]
Radius of smallest curve
3-1/2 [90] (1-1/4 [30] )¹ in[mm]
Immersion dia.
1/2 [15] (1/4 [8] )¹ in[mm]
Weight without battery
2.73 [1.24] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
76,4 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
84,4 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
89,9 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah 4,6 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads

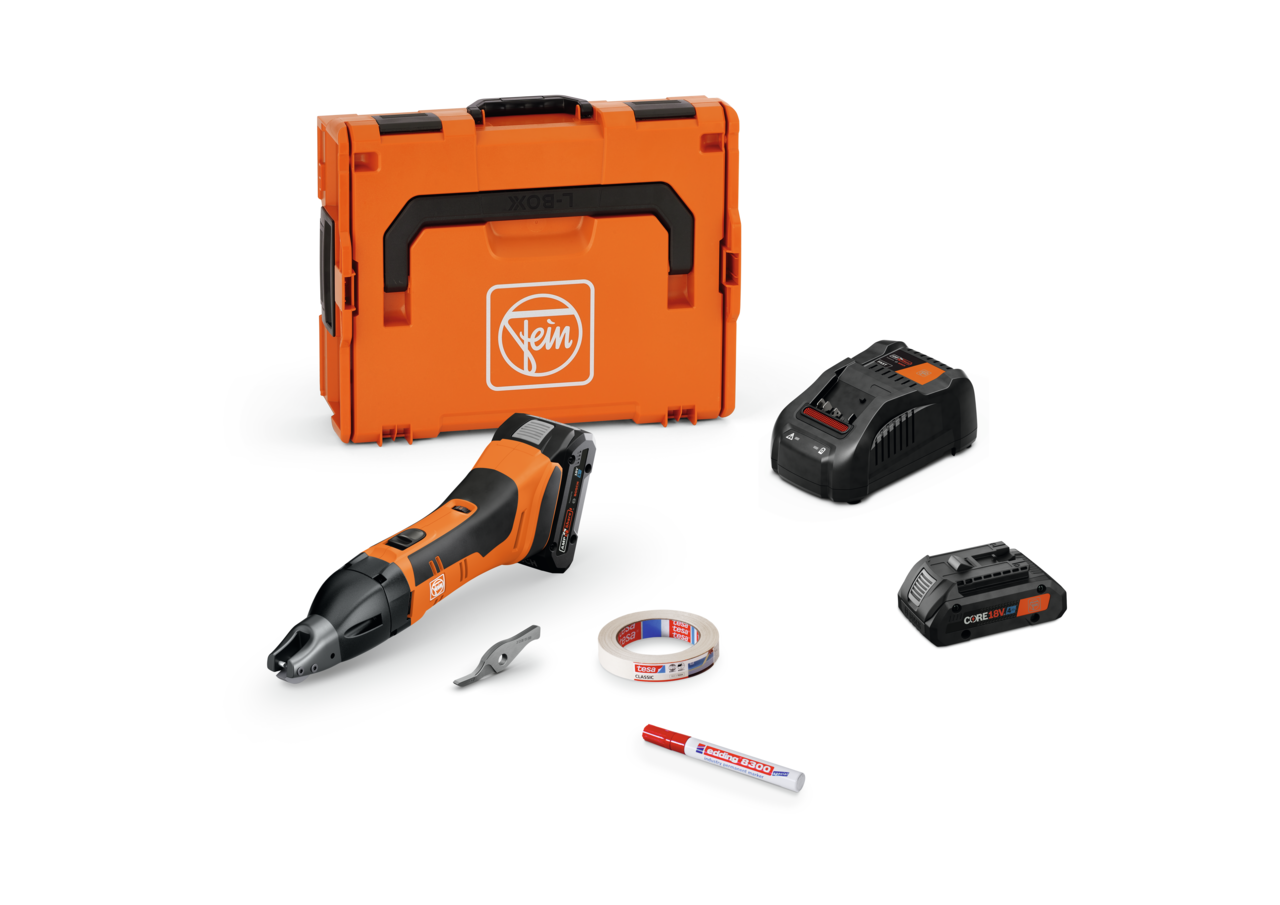

Price includes
- 1 cordless slitting shears
- 1 cutter blade (31308150009), mounted
- 1 cutter blade (31308150009)
- 1 pair of dies (31308153014), mounted
- 1 allen key 2,5 mm
- 1 permanent marker (32133037000)
- 1 roll painter's tape (32133038000)
- 2 Li-ion battery packs (18 V / 4 Ah)
- 1 rapid charger BC 1880 CV AS (92604335010)
- 1 tool case (L-BOXX 136)
Application
Product feature
- QuickIN
- Variable speed
- Full visibility of cutting line
