ABLS 18 1.6 E AS Set
Cordless sheet metal shears for up to 16 gauge [1.6mm]
ABLS 18 1.6 E AS Set
Cordless sheet metal shears for up to 16 gauge [1.6mm]
Handy, curve-compatible cordless sheet metal shears for cutting and trimming thin sheet metal. Includes BC 1880 CV AS charger, 2x CORE 18V 4.0 Ah AS lithium-ion batteries, second plunger and table blade, permanent marker and a painter’s tape.
Product number: 7 130 06 65 09 0
Details
- 725 [221] ft[m] cutting capacity (in 22 [0.8] gauge [mm] sheet metal) with one battery charge (4 Ah).
- Outstanding ergonomics and compact design for optimal mobility of the shear.
- Indexible cutting blades with four sides for clean and burr-free cutting with low operating costs.
- Good curve precision with low sheet-metal distortion.
- Perfect for trimming and cutting.
- Unrestricted view of the cutting line.
- Proven MultiMaster motor with outstanding power and durability.
- Compatible with AMPShare/Bosch Professional 18 V batteries from 2008 on.
- Maximum cutting speed with AMPShare 18V batteries: COOLPACK 2.0 technology ensures a longer battery service life in comparison to batteries without COOLPACK technology. It makes longer operation times possible. ECP protects batteries against overloading, overheating and deep discharge.
- Easily transported with our stackable L-BOXX system.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
Technical data
Technical data
Battery voltage
18 V
Battery capacity
4 Ah
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Strokes
2 200 - 3 500 spm
Cutting speed
19.7 [6] - 29.5 [9] ft/min[m/min]
Steel 58,000 lbf/in²
0/1 [1.6] in[mm]
Steel 87,000 lbf/in²
3/64 [1.2] in[mm]
Steel 116,000 lbf/in²
0/1 [1] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
3/32 [2] in[mm]
Radius of smallest curve
1/2 [15] in[mm]
Weight without battery
3.17 [1.44] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
76,8 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
84,8 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
90,7 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah 5,2 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads

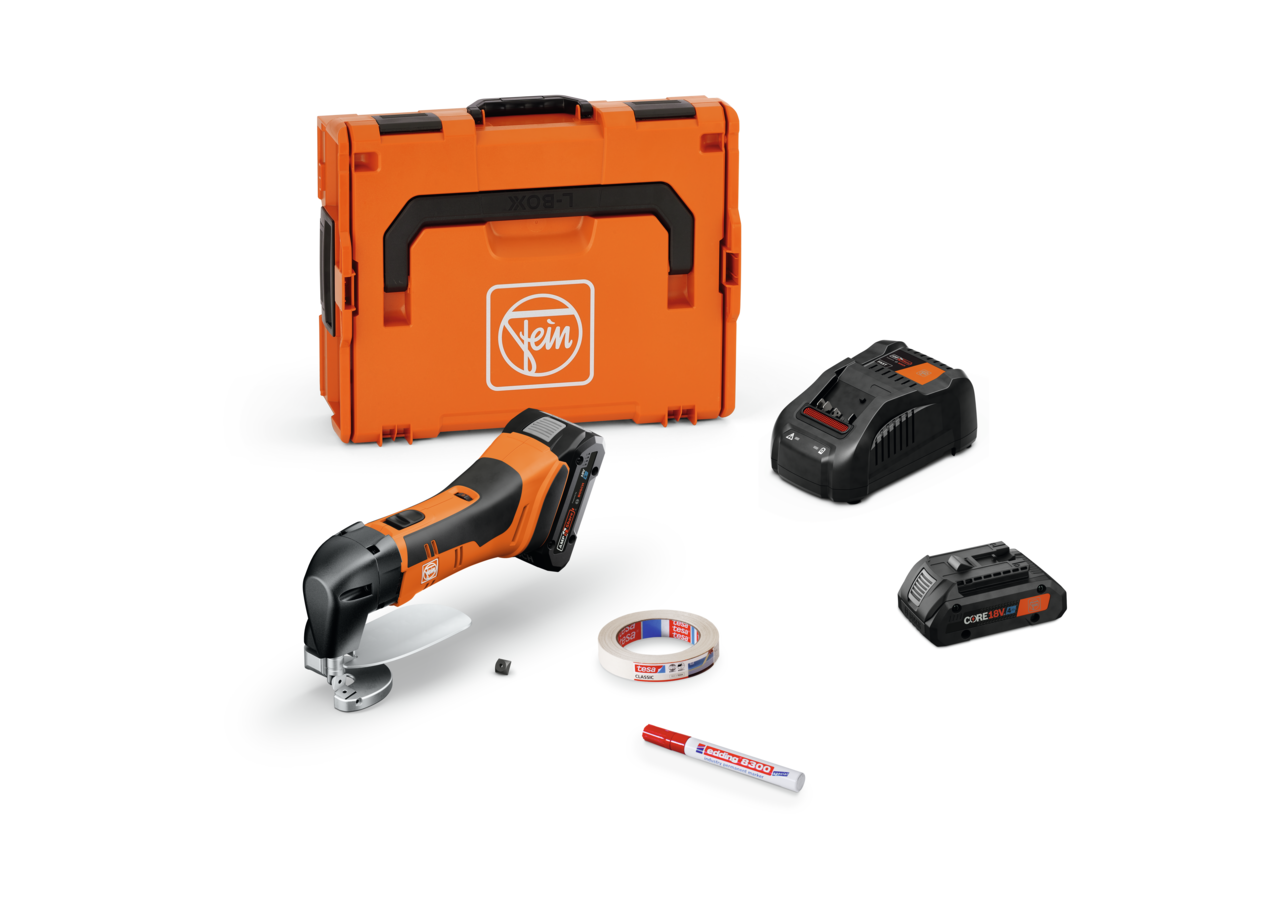

Price includes
- 1 cordless sheet metal shears
- 2 pair of blades (31308072000), mounted
- 1 allen key 2 mm
- 1 Allen key 3 mm
- 1 hand guard
- 1 permanent marker (32133037000)
- 1 roll painter's tape (32133038000)
- 2 Li-ion battery packs (18 V / 4 Ah)
- 1 rapid charger BC 1880 CV AS (92604335010)
- 1 tool case (L-BOXX 136)
Application
Product feature
- Reversing blade: 4-fach
- Variable speed
- Hand guard
