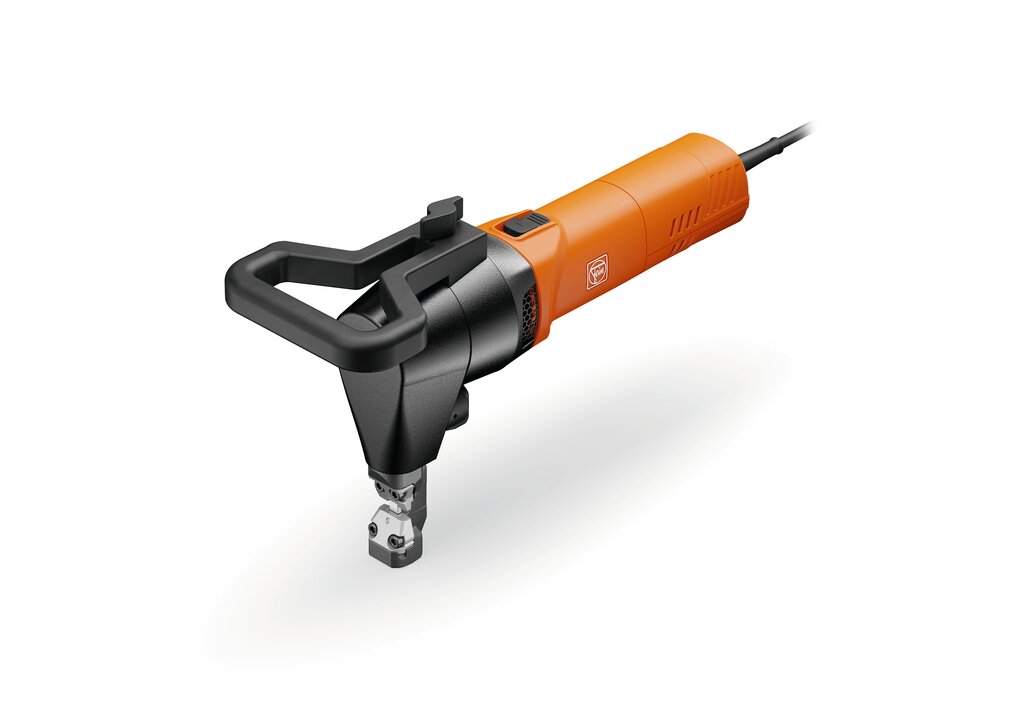

BLK 5.0 E
Nibbler up to 6 gauge
BLK 5.0 E
Nibbler up to 6 gauge
Powerful nibbler for heavy dismantling and cutting applications.
Product number: 7 232 47 61 09 0
Details
- Suitable for cuts greater than 90° edges: for example, on guide rails or tank dismantling.
- Extraordinary performance thanks to 1,700 W motors with outstanding manageability at optimal power-to-weight ratio at the same time.
- Extensive user protection: Restart protection, blocking protection, overload protection, soft start.
- Cutting direction: 4 x 90°, tool-free configuration.
- Variable number of strokes.
- Tool-free rapid change system for dies and punches.
- Ergonomic handle suitable for guiding in all directions.
- Chip protection mesh in fan area.
- Wide range of accessories.
Technical data
Technical data
Power consumption
1,700 W
Power output
1,000 W
Strokes
820 spm
Cutting speed
4.9 ft/min[m/min]
Steel 58,000 lbf/in²
1/4 [5] in[mm]
Steel 87,000 lbf/in²
1/8 [3.3] in[mm]
Steel 116,000 lbf/in²
0/1 [2.5] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
9/32 [7] in[mm]
Cutting width
5/16 [8] in[mm]
Immersion Ø with die
1-11/16 [43] in[mm]
Radius of smallest curve (inside/outside)
3-1/2 [90] / in[mm]
Cable with plug
13.1 [4] ft[m]
Weight
8.38 [3.80] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
85 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
96 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
100 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
10 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 5 steel die (31309107000), mounted
- 1 5/P5 steel punch (31309141000), mounted
- 1 accessory handle, mounted
- 1 plastic carrying case (L-BOXX 238)
Application
Product feature
- Cutting direction: 4x90°
- QuickIN
- Variable speed
- Accessory handle
