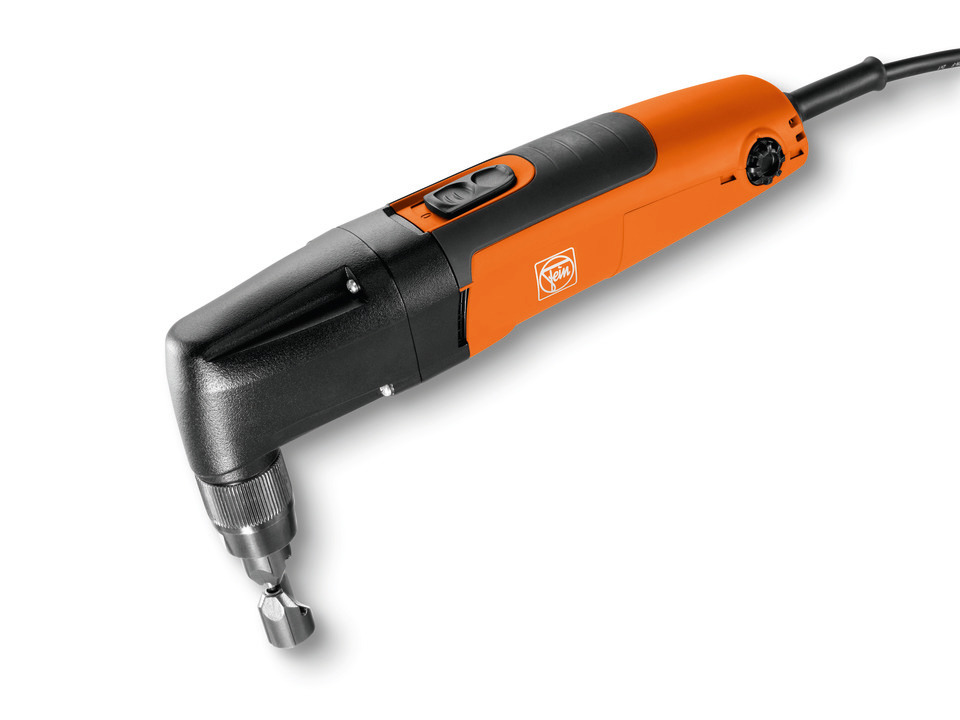

BLK 1.6 E
Nibbler up to 16 gauge
BLK 1.6 E
Nibbler up to 16 gauge
Universal nibbler for sheets, profiles, trapezoid and corrugated sheet metal.
Product number: 7 232 38 60 12 0
Details
- Virtually indestructible. Ideal for flexible and universal use with sheet thickness up to 16 gauge [1.6 mm].
- Optimum ergonomics, including a motor housing that is up to 20% slimmer due to an extremely narrow drive head.
- Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
- QuickIN rapid change system.
- High cutting speed.
- Rotating punch for up to 30% longer service life.
- Low operating costs due to long tool life of punch and die.
- Motor with outstanding performance and durability.
- Chip protection mesh on vent slots.
- 16 ft. [5 m] cable.
- Stainless steel up to 22 gauge [0.7 mm].
- Retrofittable trapezoid profile set up to 6-5/16 in [160 mm] deep channels.
Technical data
Technical data
Power consumption
350 W
Power output
210 W
Strokes
800 - 1,500 spm
Cutting speed
6.2 [1.9] ft/min[m/min]
Steel 58,000 lbf/in²
0/1 [1.6] in[mm]
Steel 87,000 lbf/in²
3/64 [1] in[mm]
Steel 116,000 lbf/in²
0/1 [0.7] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
3/32 [2.5] in[mm]
Cutting width
3/16 [5] in[mm]
Immersion Ø with die
7/8 [22] in[mm]
Radius of smallest curve (inside/outside)
1-1/4 [30] / 1-1/2 [35] in[mm]
Cable with plug
16.4 [5] ft[m]
Weight
3.97 [1.80] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
82 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
93 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
93 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
8,8 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 die (30109141003), mounted
- 1 punch (63602048004), mounted
- 1 allen key 6 mm
Application
Product feature
- Rotating round punch
- Cutting direction: 8x45°
- QuickIN
- Variable speed
