ABLK 18 1.6 E AS
Cordless nibbler for up to 16 gauge thickness
ABLK 18 1.6 E AS
Cordless nibbler for up to 16 gauge thickness

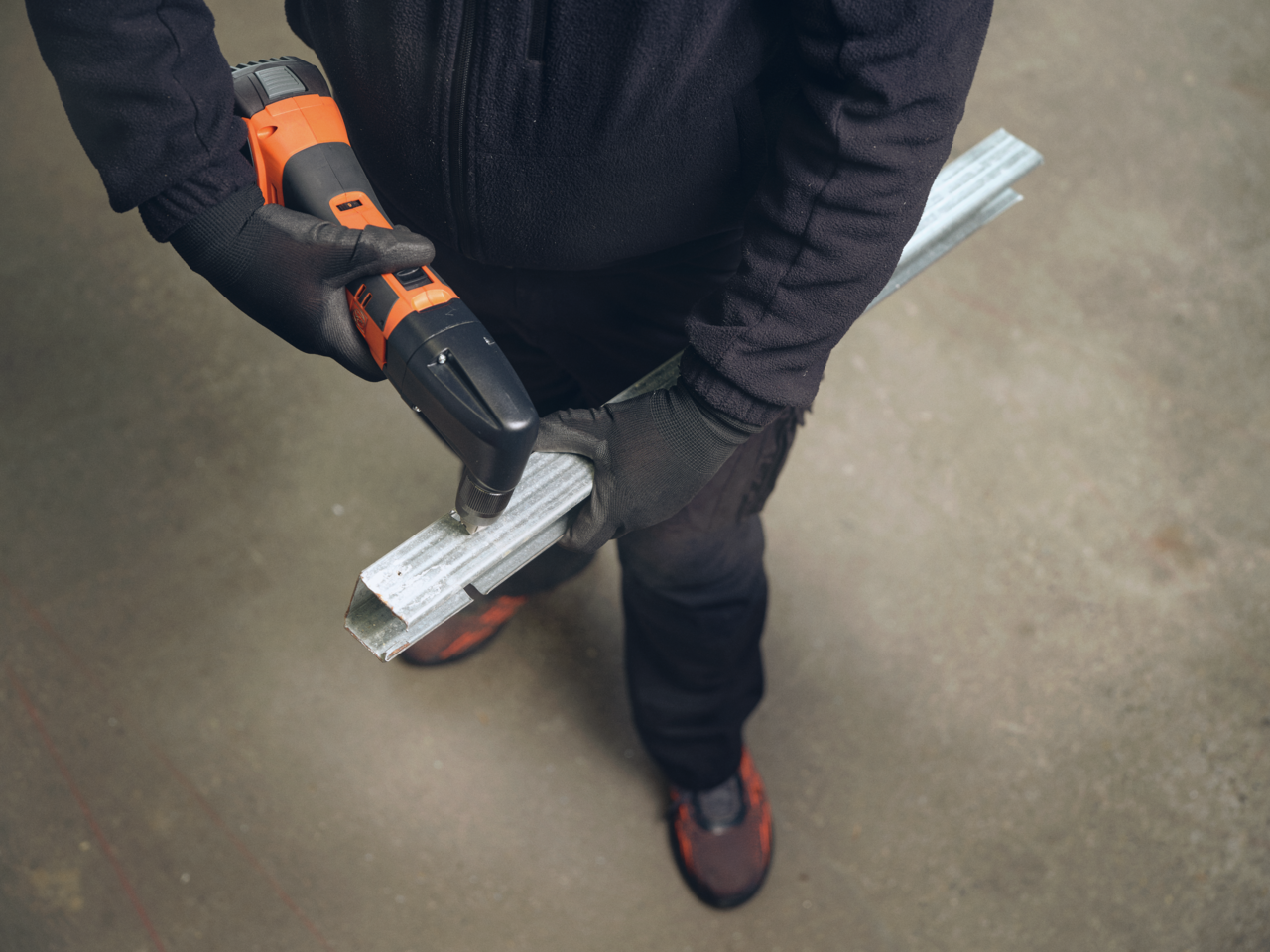

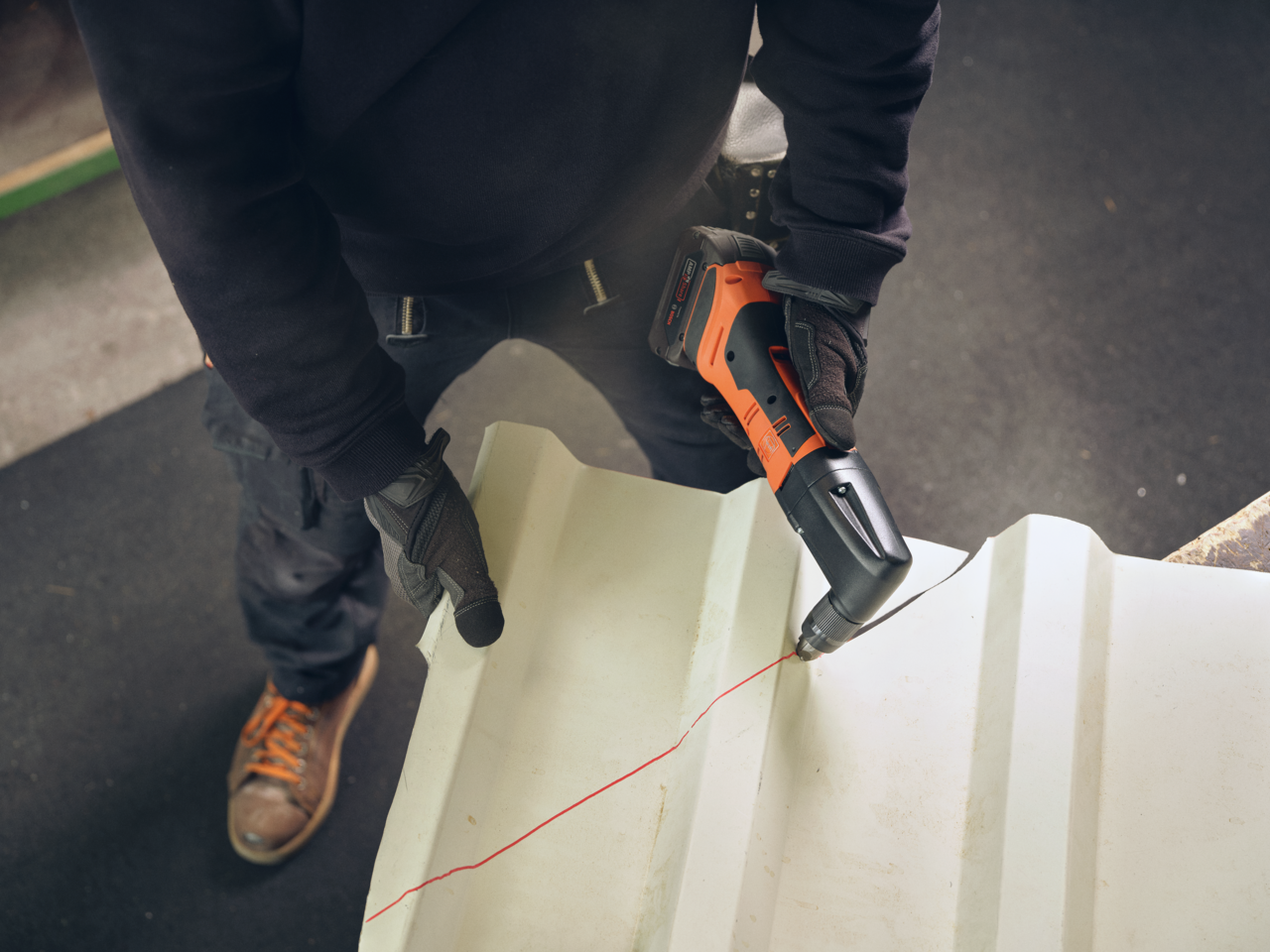

Compact, maneuverable nibbler for roof and facade construction. Precise cuts in trapezoid and corrugated sheet metal and profiles.
Product number: 7 132 11 61 09 0
Details
- 216 [66] ft[m] cutting capacity (in 22 [0.8] gauge[mm] sheet metal) with one battery charge (4 Ah).
- Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
- Optimum handling due to an extremely slim gear head.
- 4.9 ft./min [1.5 m/min] cutting speed for excellent performance.
- Variable cutting speed due to electronically adjustable stroke speed.
- Brief overlapping area up to 12 gauge [2.6 mm].
- Rotating punch for up to 30% longer service life.
- Proven MultiMaster motor with outstanding power and durability.
- Compatible with AMPShare/Bosch Professional 18 V batteries from 2008 on.
- Maximum cutting speed with AMPShare 18V batteries: COOLPACK 2.0 technology ensures a longer battery service life in comparison to batteries without COOLPACK technology. It makes longer operation times possible. ECP protects batteries against overloading, overheating and deep discharge.
- Low operating cost. Punch and die can be changed independently.
- QuickIN punch and die fast change system.
- Perfectly equipped for any job with our L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Strokes
850 - 1 350 spm
Cutting speed
4.9 [1.5] ft/min[m/min]
Steel 58,000 lbf/in²
0/1 [1.6] in[mm]
Steel 87,000 lbf/in²
3/64 [1] in[mm]
Steel 116,000 lbf/in²
0/1 [0.7] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
3/32 [2.5] in[mm]
Cutting width
3/16 [5] in[mm]
Immersion Ø with die
7/8 [22] in[mm]
Radius of smallest curve (inside/outside)
1-1/4 [30] / 1-1/2 [35] in[mm]
Weight without battery
3.77 [1.71] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
87,8 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
98,8 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
109,6 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah 12,1 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 die (30109141003), mounted
- 1 punch (63602048004), mounted
- 1 cutting head (30109154007) mounted
- 1 allen key 6 mm
- 1 tool case (L-BOXX 136)
Application
Product feature
- Rotating round punch
- Cutting direction: 8 x 45°
- QuickIN
- Variable speed
