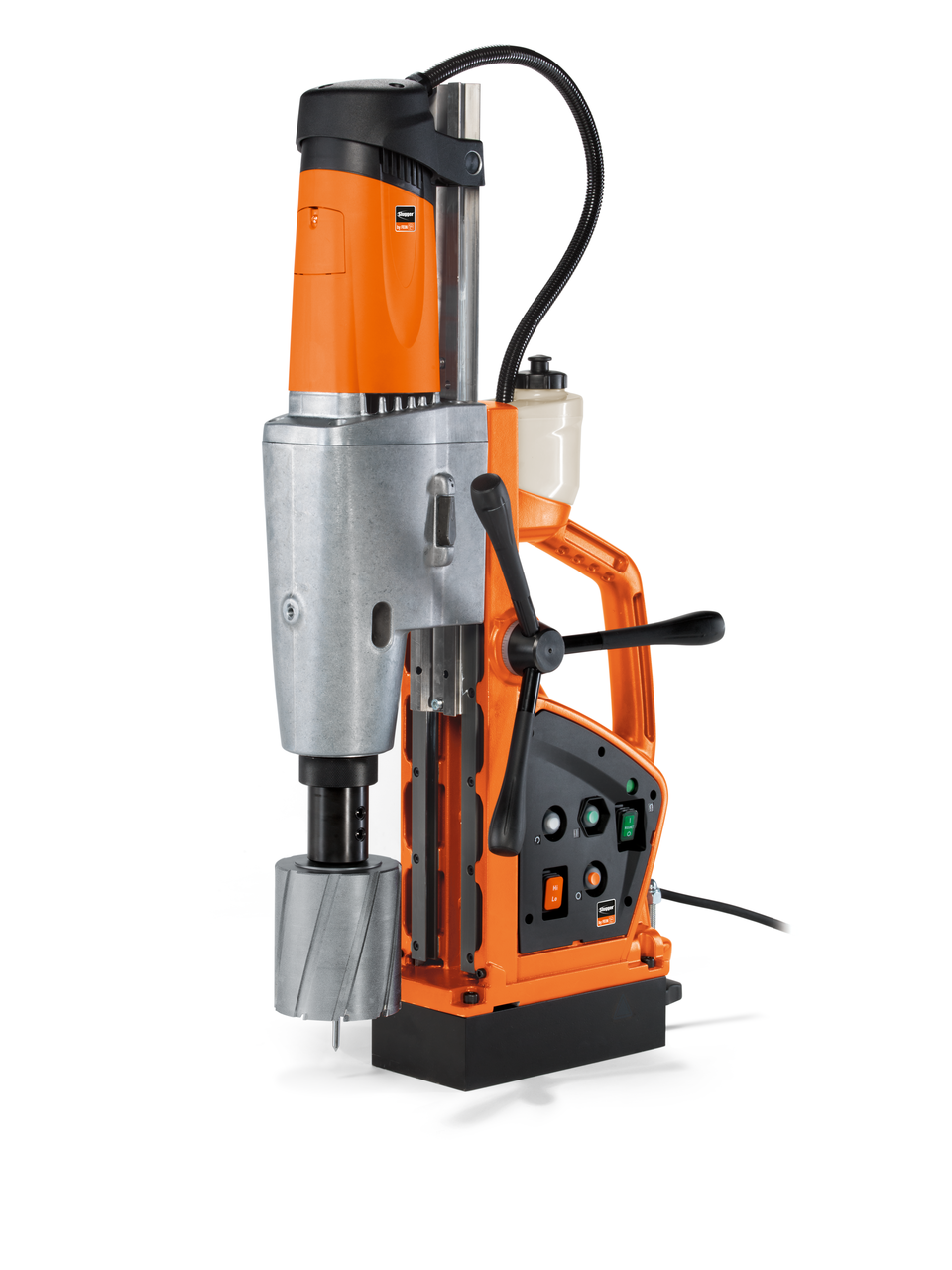

JMU 404 M
Universal magnetic core drill up to 4-5/16 [110] in[mm]
JMU 404 M
Universal magnetic core drill up to 4-5/16 [110] in[mm]
High-performance, long-stroke, 4-speed universal magnetic base drill with forward / reverse running, MT4 tool mounting and maximum functionality for heavy drilling work in the workshop.
Product number: 7 270 60 61 09 0
Details
- FEIN 1,700 W high-performance motor with high torque for heavy drilling work.
- For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
- Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
- Mechanical 4-speed gearbox.
- High magnetic holding force.
- Torque arm for increased magnetic holding power.
- Motion sensor.
- Torque slip clutch.

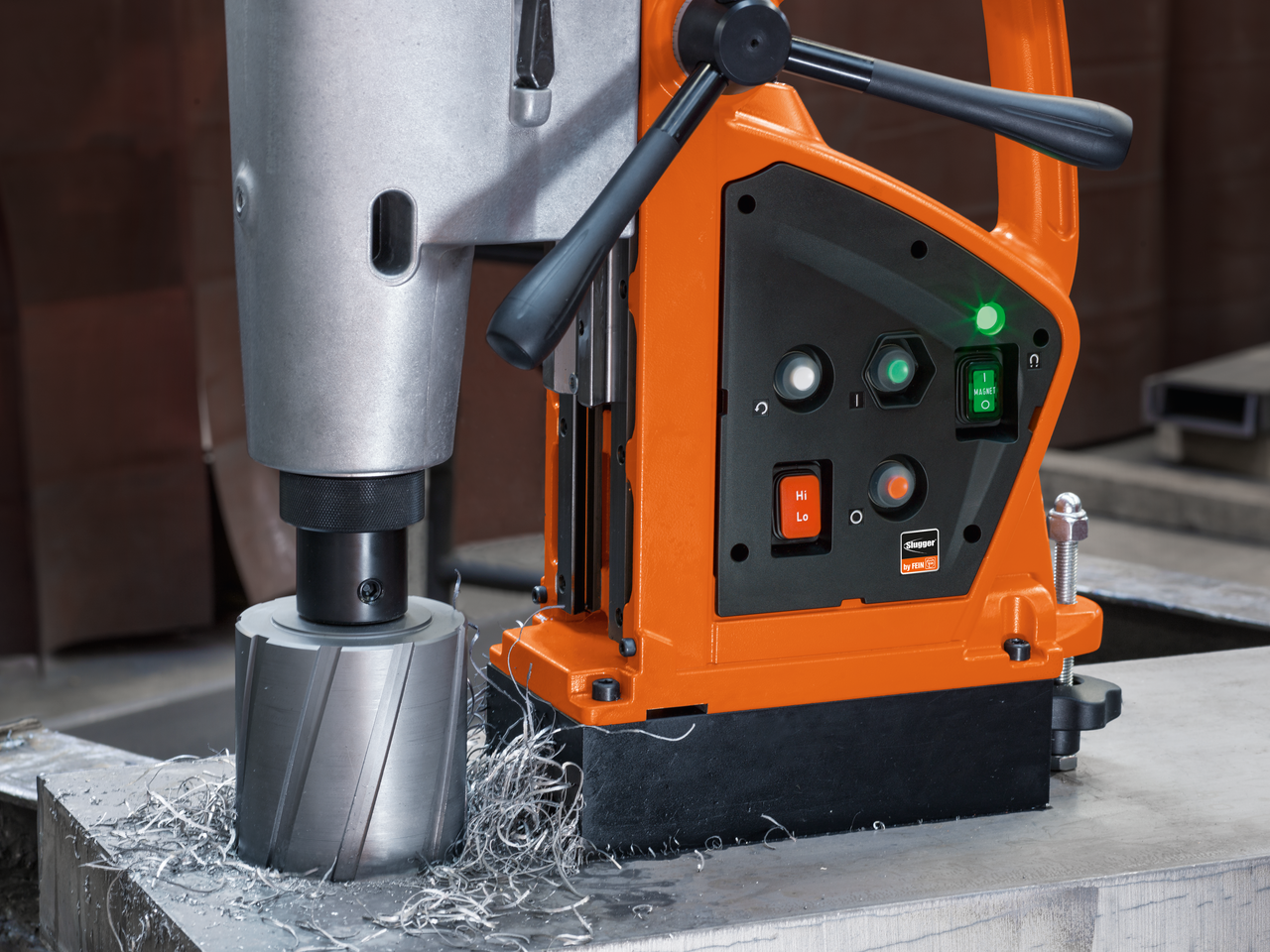

- A Convenient magnetic holding force indicator supports the safe positioning of the tool.
- Electronic speed setting.
- Reversible.
- MT4 tool mounting.
- Integrated coolant tank ensures high core drill tool life.
- Includes Portable Residual Current Device (PRCD) saftey switch.
Technical data
Technical data
Power consumption
1,700 W
Power output
850 W
Load speed: 1st gear
60 / 120
Load speed: 2nd gear
90 / 170
Load speed: 3rd gear
150 / 300
Load speed: 4th gear
230 / 430
No-load speed: 1st gear
100 / 190
No-load speed: 2nd gear
160 / 290
No-load speed: 3rd gear
270 / 500
No-load speed: 4th gear
420 / 750
Tool mount
MT 4
Carbide cutter max. dia.
4 [101] in[mm]
HSS cutter max. dia.
3 [75] in[mm]
Cutter max. drilling depth
4 [101] in[mm]
Twist drill max. dia.
1-3/8 [35] in[mm]
Tapping
M 36
Max. countersinking dia.
2-3/8 [60] in[mm]
Reaming max. dia.
1-3/8 [35] in[mm]
Cutter holder
Weldon 32
Stroke
11 [280] in[mm]
Total stroke range
15-3/4 [400] in[mm]
Magnetic holding force
5171 [23,000] lbs[N]
Cable with plug
13.1 [4] ft[m]
Weight
79.37 [36.00] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
86,0 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
97,0 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
98,5 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
ah,D = 1,4 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 Weldon 32 mounting shaft
- 1 adapter with Weldon 1-1/4 fitting and 3/4 output in Weldon
- 1 coolant tank
- 1 safety strap with ratchet
- 1 chip hook
- 2 pilot pins 6.35 mm dia. x 125 mm and 7.98 mm dia. x 184 mm
- 1 chip guard
- 1 drift
- 2 hexagonal socket keys, 3/16" and 1/4" [5 and 6 mm]
- 1 additional handle
- 1 case
Application
Product feature
- Magnet holding force display
- Forward/reverse operation
- Electronic speed setting
- Torque slip clutch
- Tilt sensor
