JMU 137 PQW

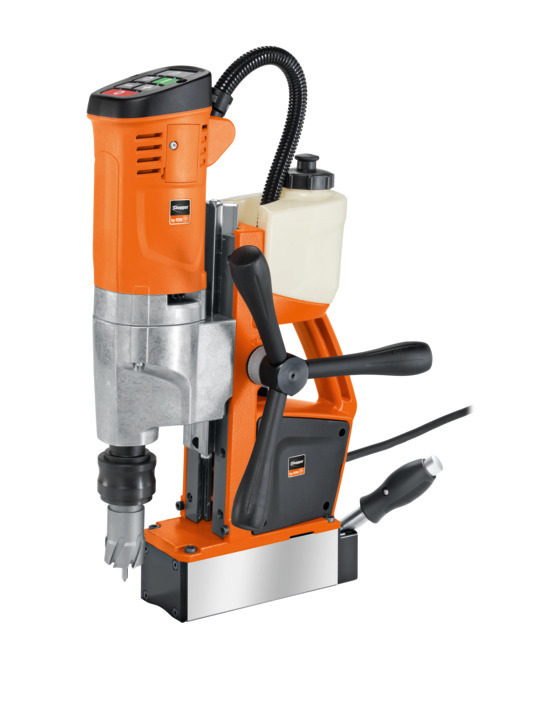

Universal magnetic core drill up to 1-3/8 in [35 mm]
JMU 137 PQW
Universal magnetic core drill up to 1-3/8 in [35 mm]
Small, long-stroke, 1-speed universal magnetic core drill with forward / reverse rotation, permanent magnet and maximum functionality for safe and versatile work on the construction site.
Product number: 7 270 73 61 09 0
Details
- Permanent magnet for extremely safe work at heights as well as a pivoting motor cable protection sleeve and high-quality workmanship for tough use.
- Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
- Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
- Extra narrow permanent magnet with magnetic bias.
- Motion sensor.
- Simple and error-proof control concept in the operator's field of view.
- A Convenient magnetic holding force indicator supports the safe positioning of the tool.
- Reversible.
- Integrated coolant tank ensures high core drill tool life.
- "Memory function" speed storage.
- Hand feed wheel can be mounted on either side.
Technical data
Technical data
Power consumption
1,010 W
Power output
550 W
Full load speed
130 - 520
Carbide cutter max. dia.
1-3/8 [35] in[mm]
HSS cutter max. dia.
1-3/8 [35] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
5/8 [16] in[mm]
Tapping
1/2"
Max. countersinking dia.
1-1/4 [31] in[mm]
Reaming max. dia.
5/8 [16] in[mm]
Cutter holder
3/4" straight shank
Cutter change
tool-free
Stroke
5-5/16 [135] in[mm]
Total stroke range
10-1/4 [260] in[mm]
Magnetic holding force
2023 [9,000] lbs[N]
Cable with plug
13.1 [4] ft[m]
Weight
27.56 [12.50] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
86,7 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
97,7 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
101,2 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
<2,5 m/s²
Vibration value 2 αhv 3-way
1,5 m/s²
Downloads
Price includes
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 3 pilot pins
- 1 chip guard
- 1 case
Application
Product feature
- Magnet holding force display
- Forward/reverse operation
- Electronic speed setting
- Memory function
- Speed-controlled tacho electronics
- Tilt sensor
