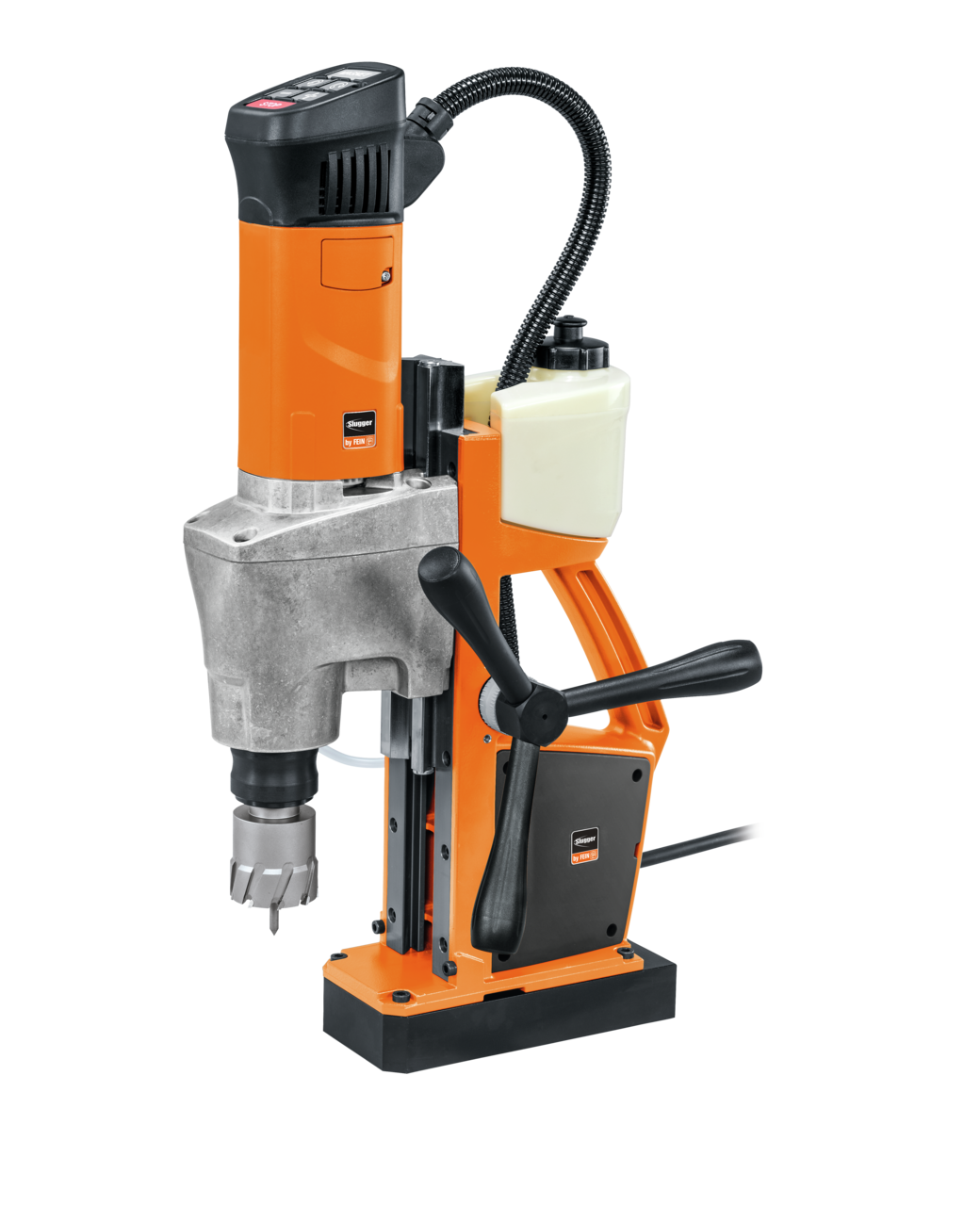

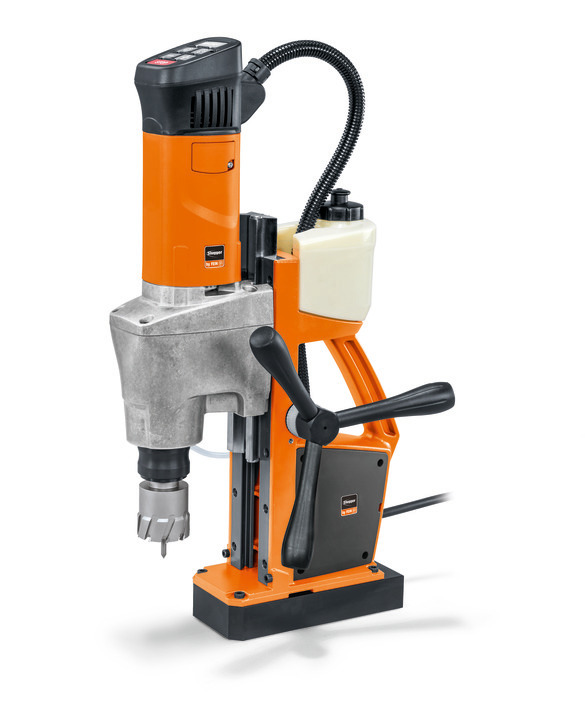

JCM 200 QX
Mag Drill unit up to 2 [50] in[mm]
JCM 200 QX
Mag Drill unit up to 2 [50] in[mm]
Lightweight with 2-speed gearbox and easy operation for efficient drilling in the workshop and on the construction site.
Product number: 7 270 45 61 12 0
Details
- Compact with high functionality for universal use on the construction site and in the workshop.
- Simple and error-proof control concept in the operator's field of view.
- Double drill motor guides enable use of the longest annular cutters.
- Reversible
- Electronic speed control.
- High-power motor with stable speed.
- High magnetic holding force.
- A Convenient magnetic holding force indicator supports the safe positioning of the tool.
- Integrated coolant tank ensures high core drill tool life.
- Hand feed wheel can be mounted on either side.
Technical data
Technical data
Power consumption
1,200 W
Power output
640 W
Load speed: 1st gear
130 - 260
Load speed: 2nd gear
260 - 520
Carbide cutter max. dia.
2 [50] in[mm]
HSS cutter max. dia.
1-9/16 [40] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
5/8 [16] in[mm]
Tapping
M 16
Max. countersinking dia.
1-1/4 [31] in[mm]
Reaming max. dia.
5/8 [16] in[mm]
Cutter holder
3/4" straight shank
Cutter change
tool-free
Stroke
5-11/16 [145] in[mm]
Total stroke range
12-3/8 [315] in[mm]
Cable with plug
13.1 [4] ft[m]
Weight
31.31 [14.20] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
82,1 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
93,1 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
96,2 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Downloads

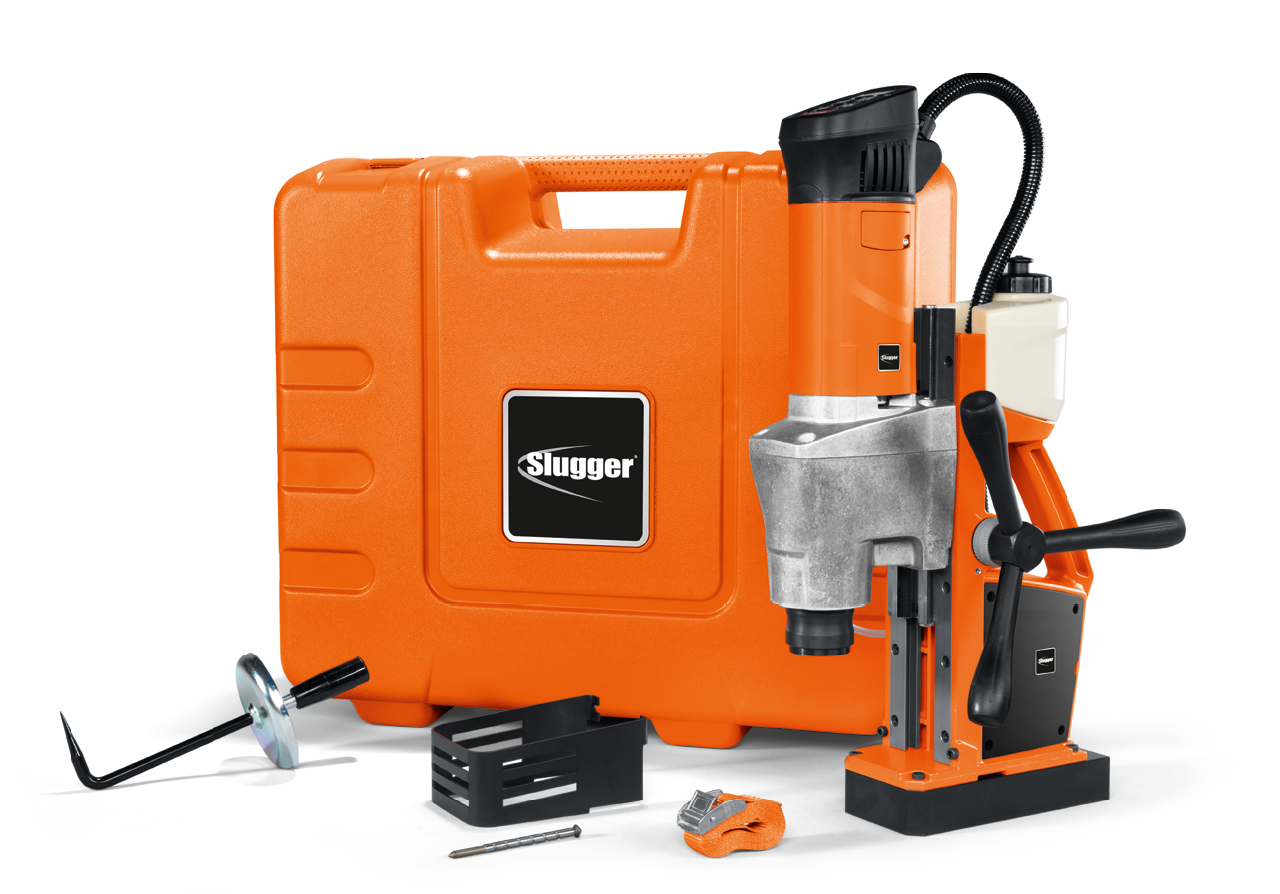

Price includes
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 pilot pin 4 1/8 in (105 mm)
- 1 chip guard
- 1 case
Application
Product feature
- Magnet monitor system
- Magnet holding force display
- Forward/reverse operation
- Electronic speed setting
- Memory function
- Speed-controlled tacho electronics
