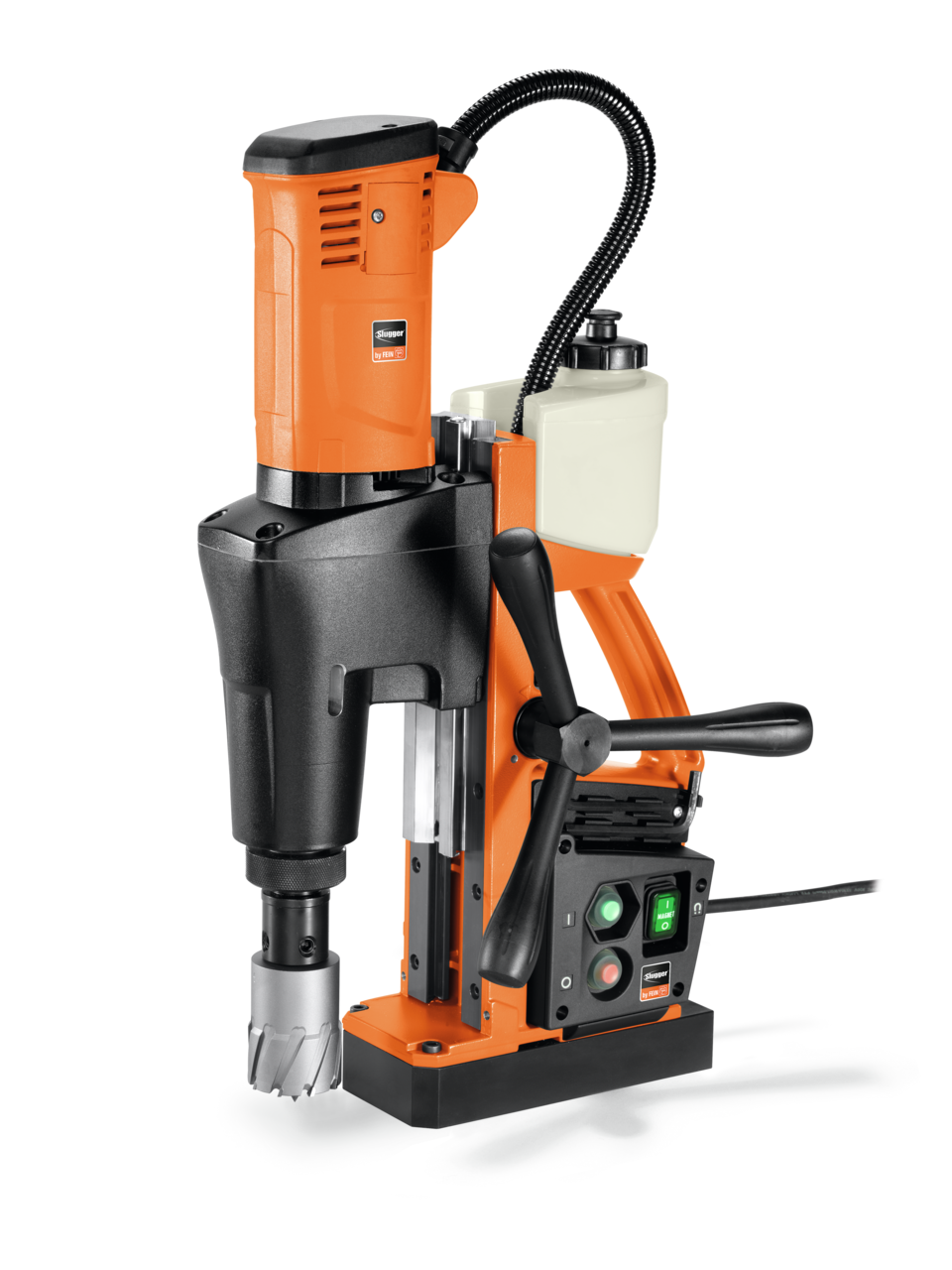

JME USA 202 M
Endurance magnetic core drill up to 2 [50] in[mm]
JME USA 202 M
Endurance magnetic core drill up to 2 [50] in[mm]
Lightweight and powerful 2-speed Endurance magnetic base drill with MT3 tool mounting and basic functionality for core drilling and twist drilling in the workshop and at the construction site.
Product number: 7 270 69 61 09 0
Details
- For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
- Slugger by FEIN high-performance motor with high torque for use with carbide and HSS core drills and extra-large stroke range for twist drilling.
- Uncompromising service life and work progress for an excellent price/performance ratio.
- Mechanical 2-speed gearbox.
- Higher RPM for optimal use with carbide cutters.
- MT3 tool mounting.
- High magnetic holding force.
- Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.
- Optimum power-to-weight ratio.
- Integrated coolant tank ensures high core drill tool life.
- Hand feed wheel can be mounted either side.
- Integrated hexagon socket holder.
- * optional using accessory.
Technical data
Power consumption
1,280 W
Power output
616 W
Full load speed
260 / 520
No load speed
350 / 680
Tool mount
MT 3
Carbide cutter max. dia.
2 [50] in[mm]
HSS cutter max. dia.
1-15/16 [50] in[mm]
Cutter max. drilling depth
2 [50] (3 [75] *) in[mm]
Twist drill max. dia.
7/8 [23] in[mm]
Cutter holder
3/4" straight shank
Stroke
5-5/16 [135] in[mm]
Total stroke range
10-1/4 [260] in[mm]
Magnetic holding force
2810 [12,500] lbs[N]
Cable with plug
9.8 [3] ft[m]
Weight
30.86 [14.00] lbs[kg]
Downloads

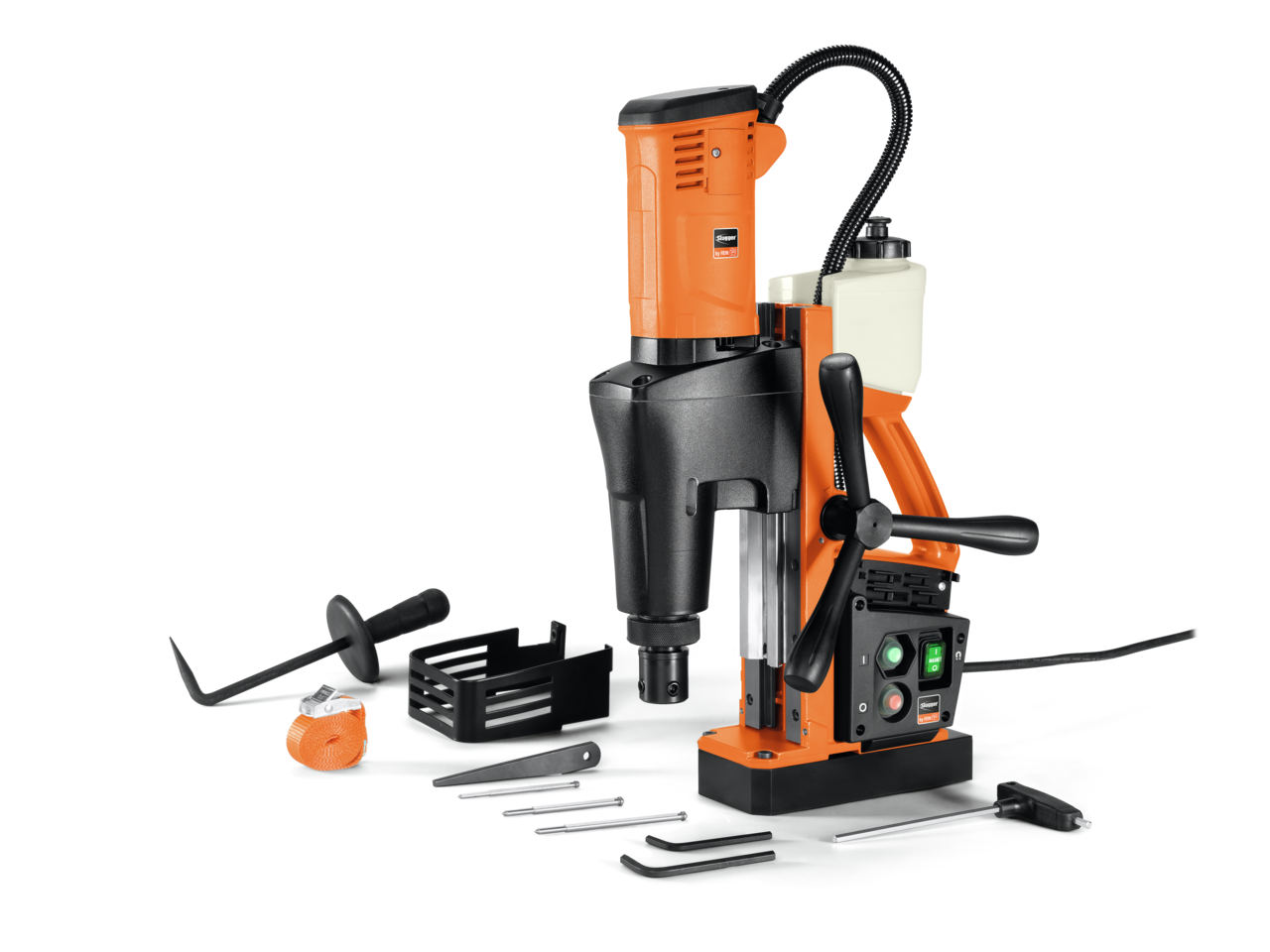

Price includes
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 centering pin dia. 1/4 x 4 [6.35 x 100] in[mm]
- 1 centering pin dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
- 1 centering pin dia. 3/16 x 3-1/8 [4.75 x 80] in[mm]
- 1 chip guard
- 2 hexagonal socket keys, 3/16" and 1/4" [5 and 6 mm]
- 1 hexagonal socket key with T-grip 5 mm
- 1 drift
- 1 case
Application
Product feature
- Hand feed wheel can be mounted on either side
