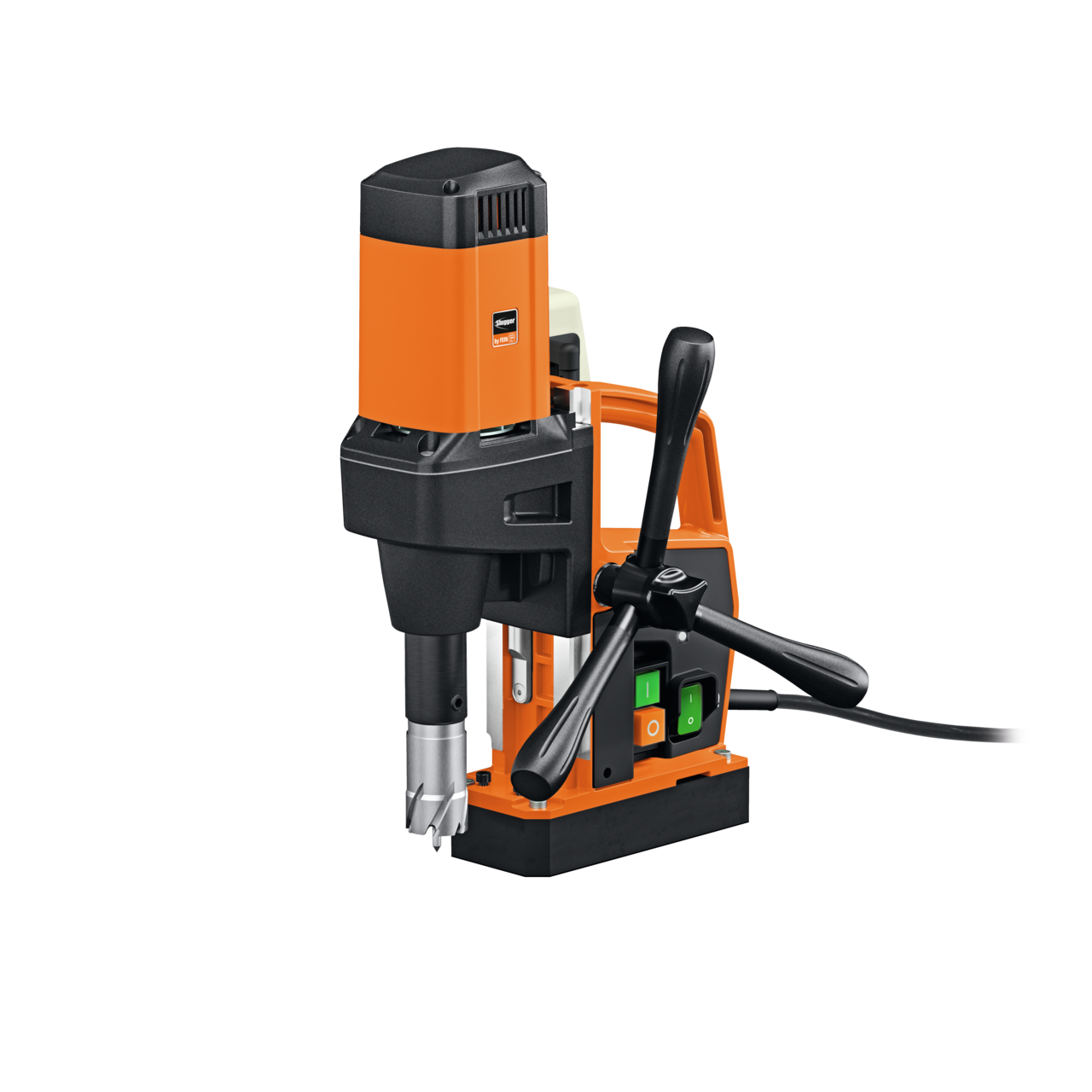

JME ShortSlugger II
Endurance magnetic base drill up to 1-1/4 in [32 mm]
JME ShortSlugger II
Endurance magnetic base drill up to 1-1/4 in [32 mm]

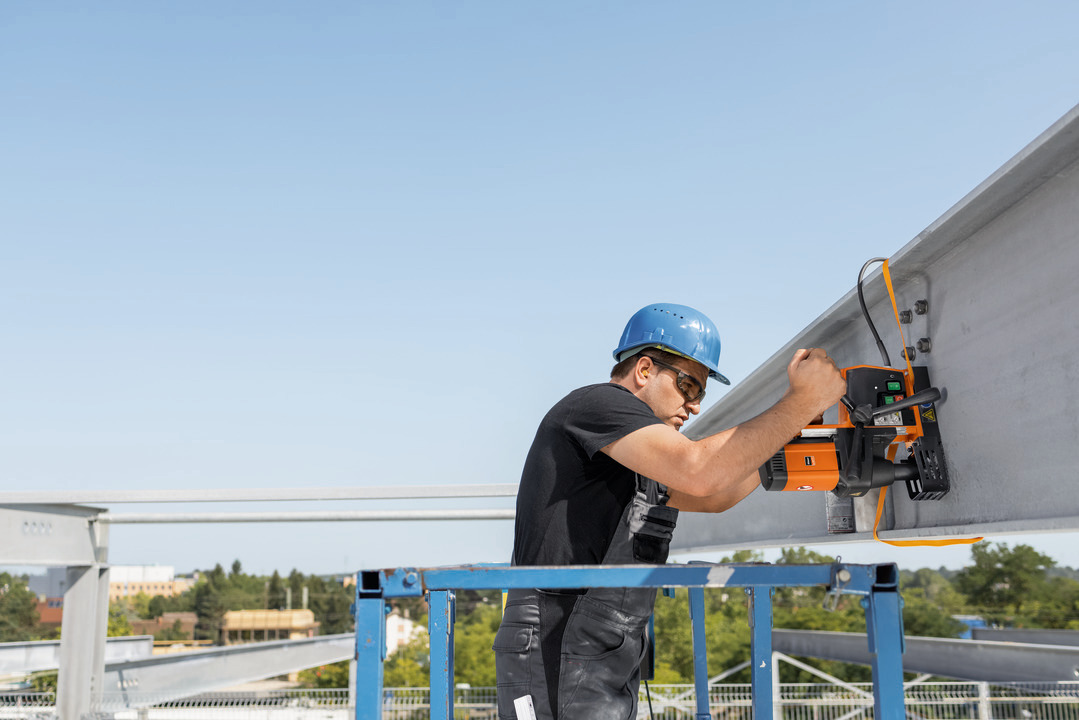

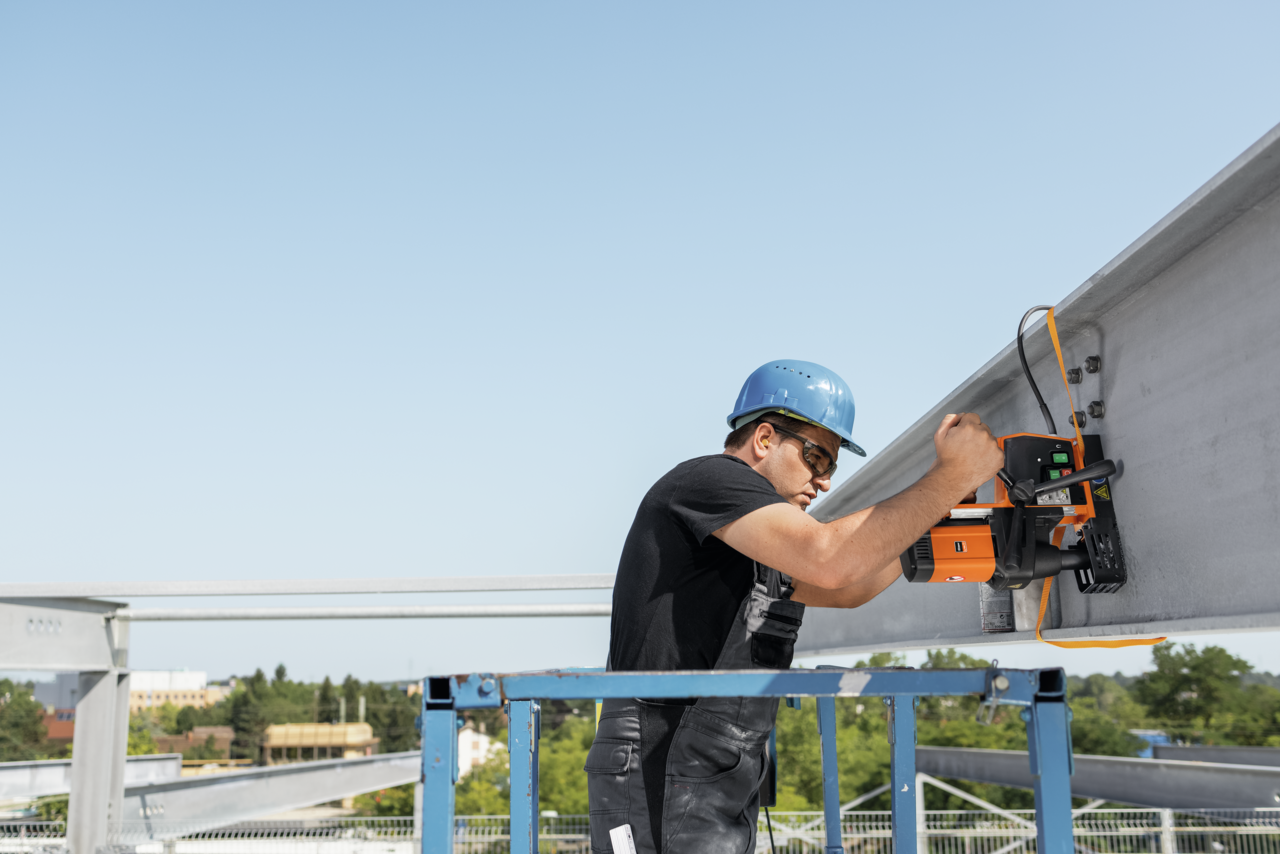

Small and extremely lightweight 1-speed Endurance magnetic core drilling machine for core drilling on the construction site.
Product number: 7 270 94 61 09 0
Details
- For tough use, thanks to high-quality workmanship and internal motor cable routing.
- Uncompromising service life through extra-durable gearbox design with up to 400 hours of operation time.
- Lightweight with FEIN high-performance motor and high torque for all core drilling work.
- Excellent price / performance ratio.
- A Convenient magnetic holding force indicator supports the safe positioning of the tool.
- Motion sensor.
- Internal cooling.
- High magnetic holding force.
- Hand feed wheel can be mounted on either side.
- Good accessibility in cramped operating situations.
- Highly visible and easy to understand motor and magnet switches.
Technical data
Power consumption
1,200 W
Power output
770 W
Full load speed
450
No load speed
700
Carbide cutter max. dia.
1-1/4 [32] in[mm]
HSS cutter max. dia.
1-1/4 [32] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Cutter holder
3/4" straight shank
Stroke
3-9/16 [90] in[mm]
Magnetic holding force
2248 [10,000] lbs[N]
Cable with plug
9.8 [3] ft[m]
Weight
23.81 [10.80] lbs[kg]
Downloads
Price includes
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 centering pin dia. 1/4 x 3-9/16 [6.35 x 90] in[mm]
- 1 centering pin dia. 1/4 x 4 [6.35 x 100] in[mm]
- 1 centering pin dia. 3/16 x 4 [4.75 x 100] in[mm]
- 1 chip guard
- 1 allen key 5 mm
- 1 case
Application
Product feature
- Magnet holding force display
- Tilt sensor
- Hand feed wheel can be mounted on either side
