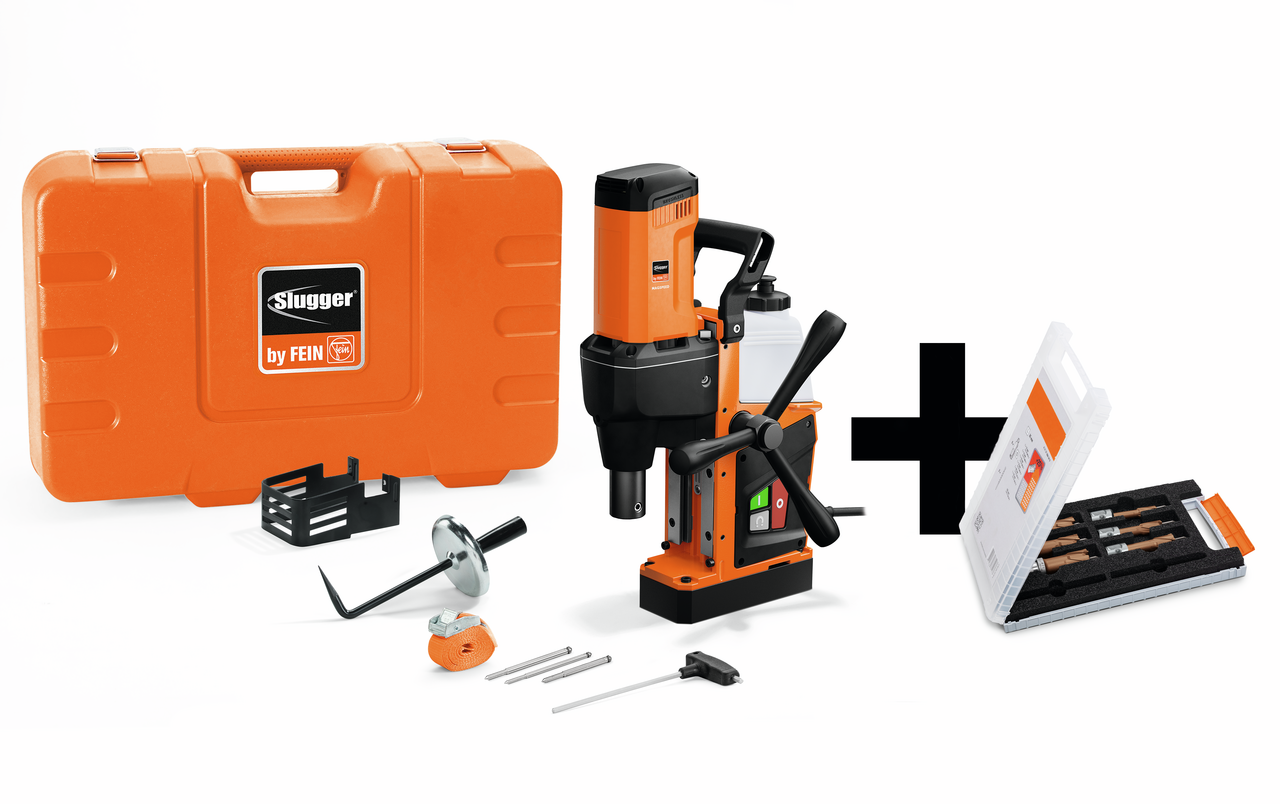

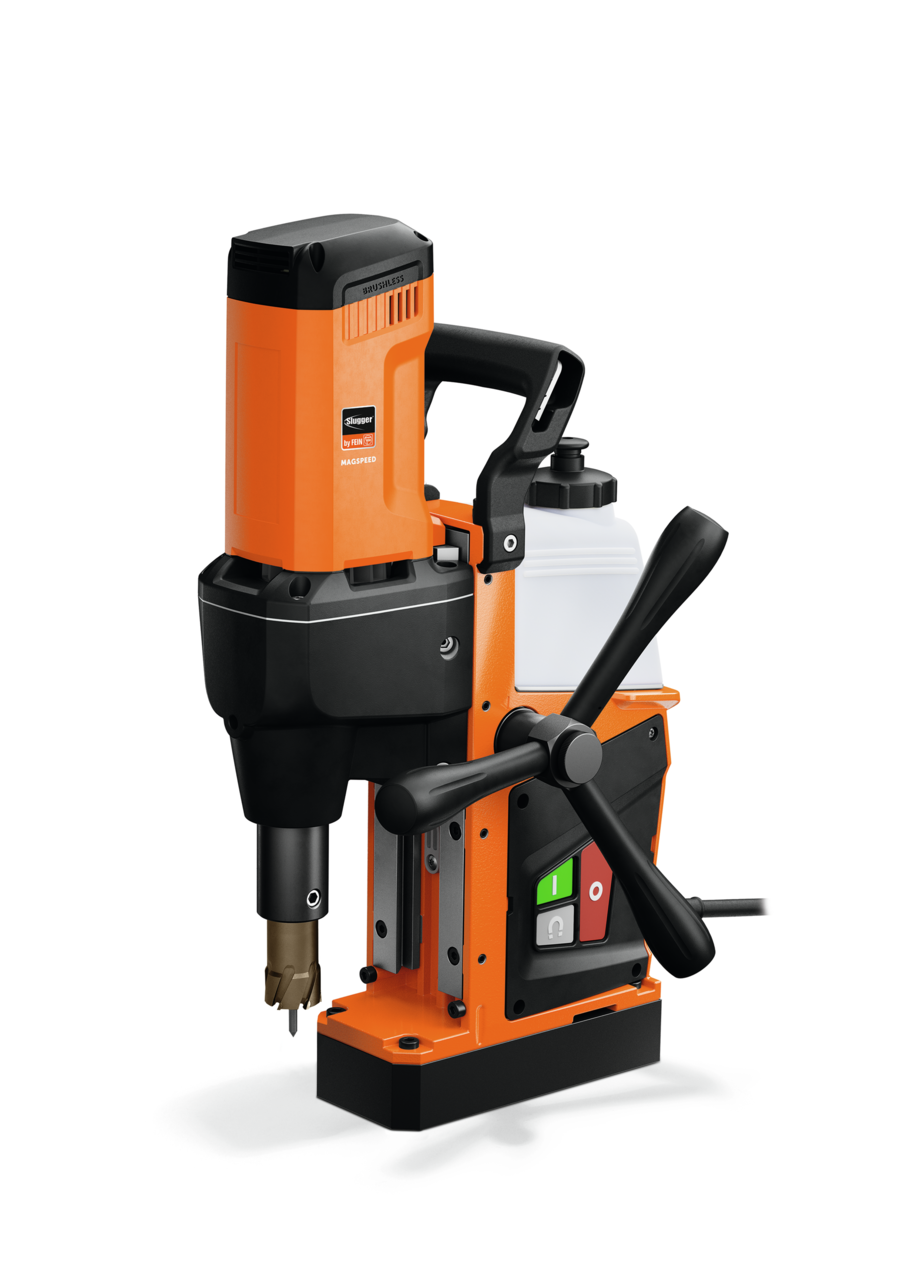

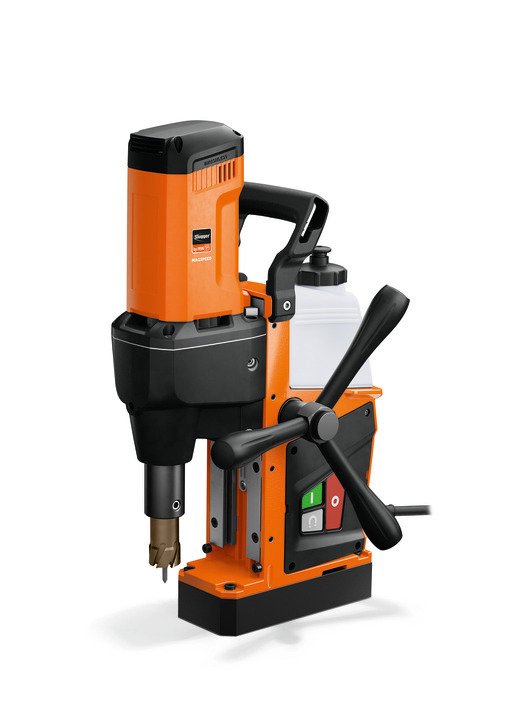

JME MAGSPEED 150 Fabrication SET
Endurance magnetic base drill up to 1-1/2 in [38 mm]
JME MAGSPEED 150 Fabrication SET
Endurance magnetic base drill up to 1-1/2 in [38 mm]
Small, lightweight 1-speed Endurance magnetic drill with unique performance and service life, even under the most demanding conditions in workshops and on construction sites.
Product number: 7 273 24 62 09 0
Details
- Increase productivity by up to 50% with excellent results and fast holemaking. Up to 60 holes are possible compared to previous models.
- Outstanding, previously unimaginable cutting performance thanks to a stable speed and torque curve with cutting speeds of up to 230 ft/min [70 m/min] – ideal for CARBIDE ULTRA and CARBIDE ULTRA SPEED coated annular cutters.
- Unique durability for up to 240 000 drilled holes thanks to an extremely low-wear tool concept with brushless 1,500 W FEIN PowerDrive and internal motor cord.
- Excellent access in tight situations due to the intuitive operating concept.
- A Convenient magnetic holding force indicator supports the safe positioning of the tool.
- Workplace Safety: Tilt sensor safety shutoff will shut down the drill in the event it should move or break free from the workpiece.
- Integrated coolant tank ensures high core drill tool life.
- Tool-free hand feed wheel can be mounted on either side.
- Highly visible and easy to understand motor and magnet switches.
- Storage for 5 mm Allen key directly on the tool.
Technical data
Power consumption
1,500 W
Power output
1,500 W
Load speed: 1st gear
620 rpm
No-load speed: 1st gear
620 rpm
Carbide cutter max. dia.
1-1/2 [38] in[mm]
HSS cutter max. dia.
13/16 [20] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Cutter holder
3/4" straight shank
Stroke
4-3/16 [107] in[mm]
Magnetic holding force
2248 [10,000] lbs[N]
Cable with plug
13 [4] ft[m]
Weight
24.25 lbs
Downloads

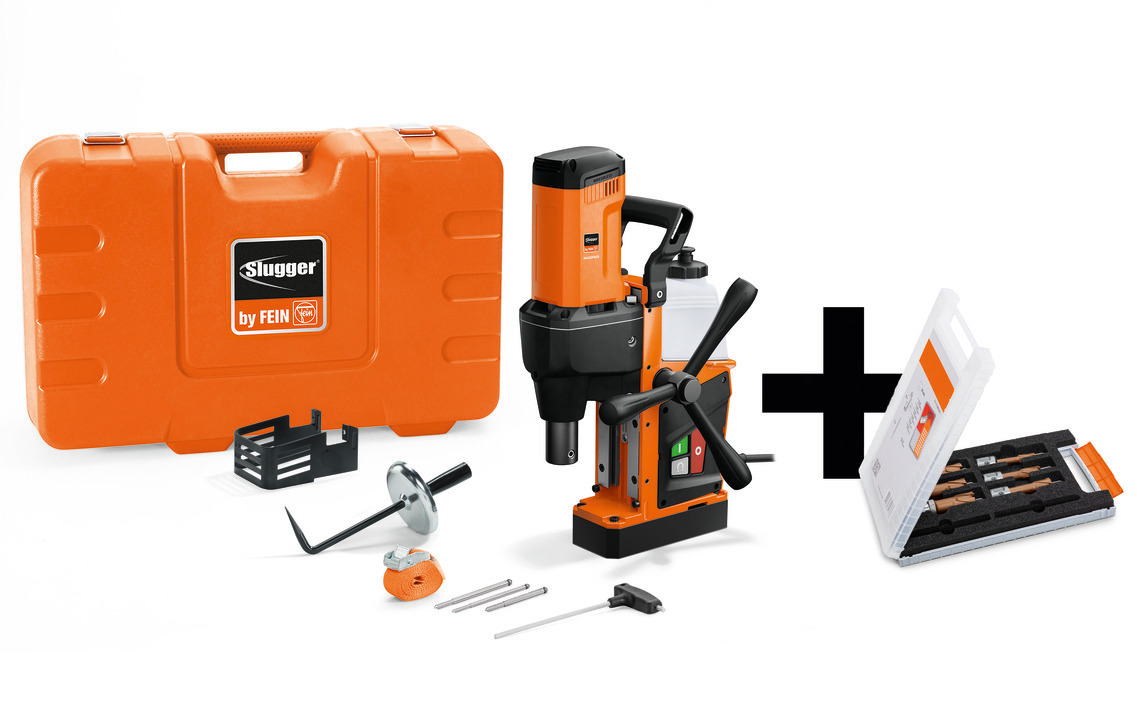

Price includes
- 1 magnetic base drill
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 centering pin dia. 1/4 x 3-9/16 [6.35 x 90] in[mm]
- 1 centering pin dia. 1/4 x 4 [6.35 x 100] in[mm]
- 1 centering pin dia. 3/16 x 4 [4.75 x 100] in[mm]
- 1 chip guard
- 1 Allen key 5 mm
- 1 hexagonal socket key with T-grip 5 mm
- 6 TCT ULTRA SPEED 1-3/8" annular cutters with cutting depth 1-3/8" (Ø 9/16, 11/16, 2 x 13/16, 15/16, 1-1/16")
- 6 centering pin dia. 1/4 x 3-9/16 [6.35 x 90] in [mm]
- 1 case
