JMC MAGFORCE 90 Structural Steel HSS Cutter Set 1'' 3/4'' Weldon
Universal magnetic base drill up to 1-3/8'' [35 mm] with accessory set
JMC MAGFORCE 90 Structural Steel HSS Cutter Set 1'' 3/4'' Weldon
Universal magnetic base drill up to 1-3/8'' [35 mm] with accessory set
The world's smallest magnetic base drill with right and left hand rotation meets HSS 1 in cutters and core drilling accessories. Perfect for general steel fabrication, bridge construction and truck frames.
Product number: 7 273 23 66 09 0
Details
- WORK IN THE TIGHTEST SPACES: With overall dimensions of 6-5/8” x 11-3/8” and a low weight of 18.75 lbs., it fits where other mag drill simply can’t.
- WORK EFFICIENTLY: Forward and reverse rotation and a unique spindle sleeve feed for cutting depths of up to 1-3/8 means you can do many jobs at once.
- WORK ANYWHERE: Its small size, low weight, and ratchet handle means you can fit this drill almost anywhere, and even work easily overhead.
- DOESN’T COMPROMISE POWER OR SPEED: 1150 W brushless motor and electronic speed setting for impressive results, no matter the application.
- WORK SAFELY: 2,248 lbf magnetic holding force but in the rare instance the magnet is compromised, our tilt sensor safety shut off automatically shuts down the drill.
- Annular cutter HSS 1 in: Industry standard: 2 flat 3/4" straight shank for use with most commercially available mag drills. Helical flute design reliably evacuate the chips out of the hole for fast, efficient chip removal. High performance: all cutting teeth have the same geometry which helps to produce clean, burr free holes while allowing for a fast, smooth cut. 100% heat treated throughout for longer service life. Can be resharpened up to 6 times for a low cost per hole.
- Magbrush: Safely remove metal chips and debris from machinery and work areas using FEIN's magnetic brushes. The Magbrush’s slide action lever quickly demagnetizes the tool, which releases chips for disposal.
- Slugger by FEIN cutting paste is a biodegradable cutting paste that is used when drilling out of position and gravity feed coolant is not an option, used with Slugger cutters, is a water-based fluid designed to extend tool life, improve surface finish and reduce heat build-up when drilling.
- L-BOXX case system - Stay organized: easily stack and connect L-BOXX's to create a portable carrying case of multiple tools.
Technical data
Technical data
Power consumption
1,100 W
Power output
550 W
Full load speed
130 - 520 rpm
Carbide cutter max. dia.
1-3/8 [35] in[mm]
HSS cutter max. dia.
1-3/8 [35] in[mm]
Cutter max. drilling depth
1-3/8 [35] in[mm] in[mm]
Twist drill max. dia.
3/4 [18] in[mm]
Cutter holder
3/4" straight shank
Stroke
5-5/16 [135] in[mm]
Magnetic holding force
2248 [10,000] lbs[N]
Cable with plug
13 [4] ft[m]
Weight
23.59 lbs
Vibration and sound emission values
Sound pressure level LpA
82,3 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
93,3 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
95,9 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
αh,D <2,5 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads

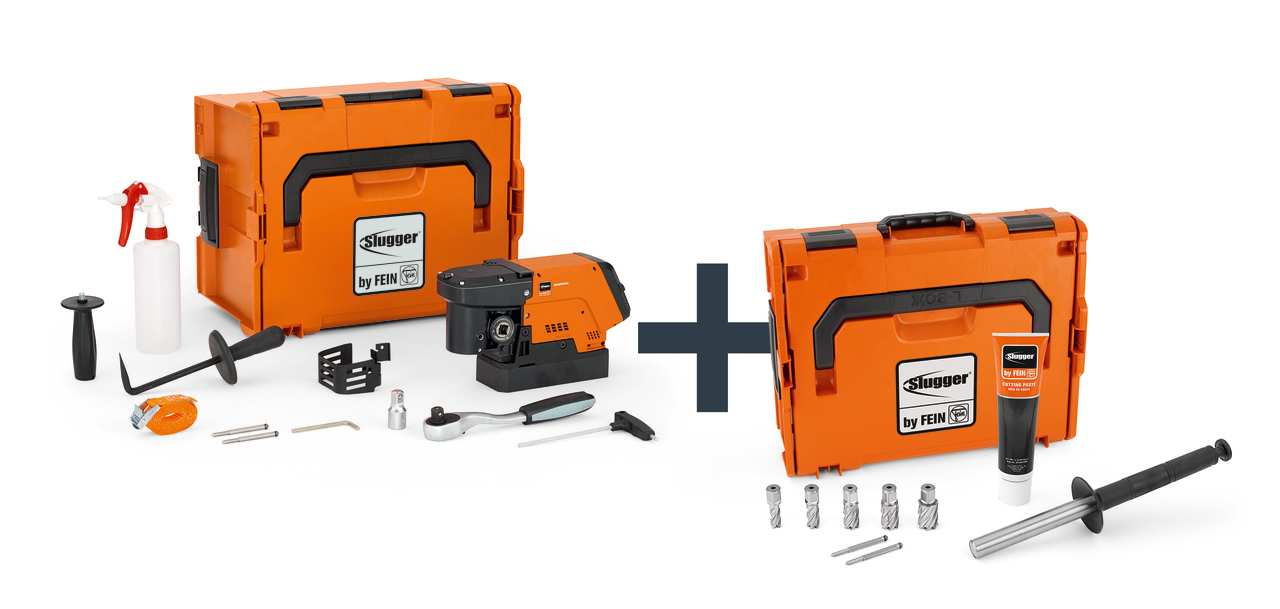

Price includes
- 1 magnetic base drill
- 1/2 in ratchet
- 1/2 in socket wrench extension
- 1 coolant pump
- 1 safety strap
- 1 chip hook
- 1 centering pin dia. 3/16 x 3-1/8 [4.75 x 80] in[mm]
- 1 centering pin dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
- 1 chip guard
- 1 auxiliary handle
- 1 Allen key 5 mm
- 1 hexagonal socket key with T-grip 5 mm
- 1 plastic carrying case (L-BOXX 238)

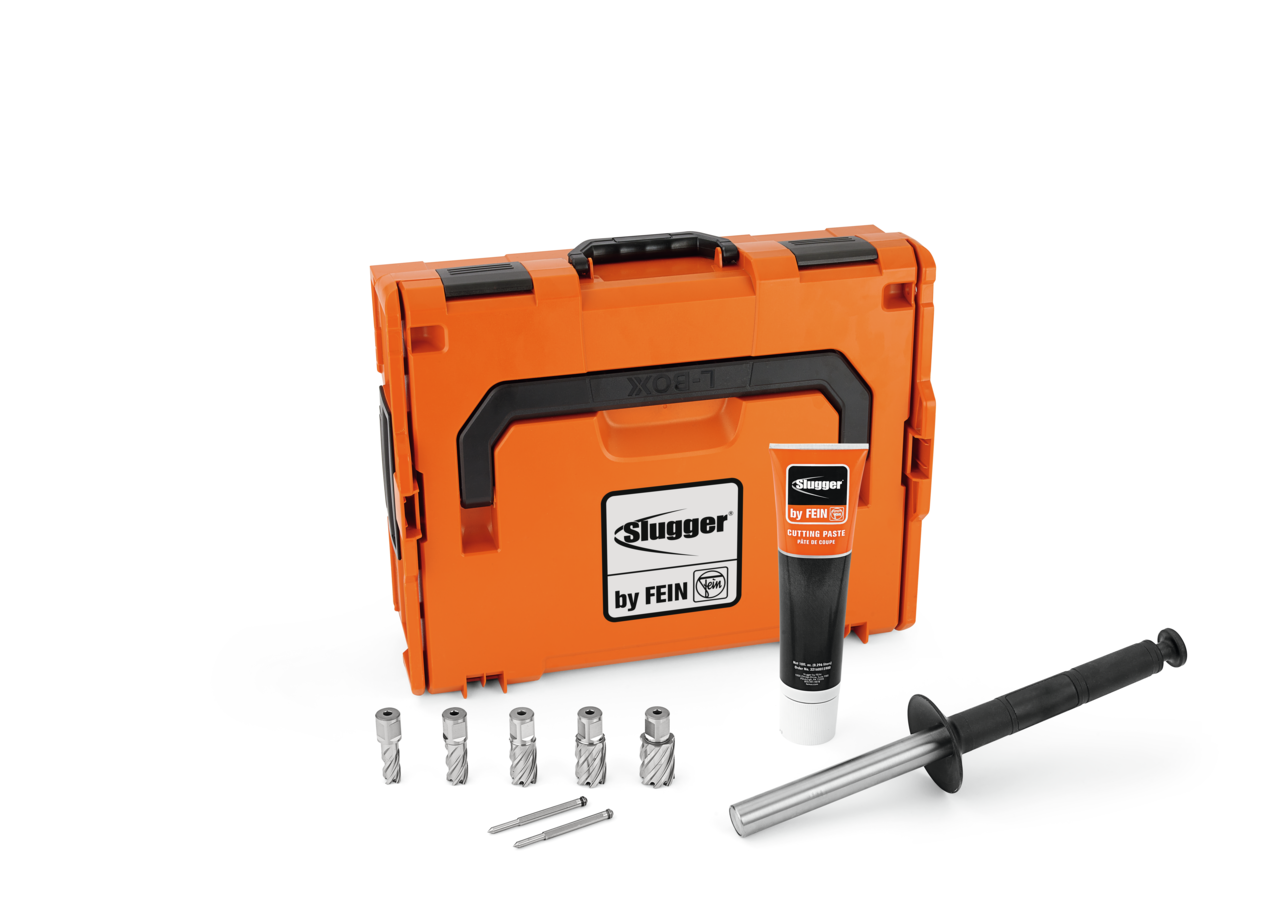

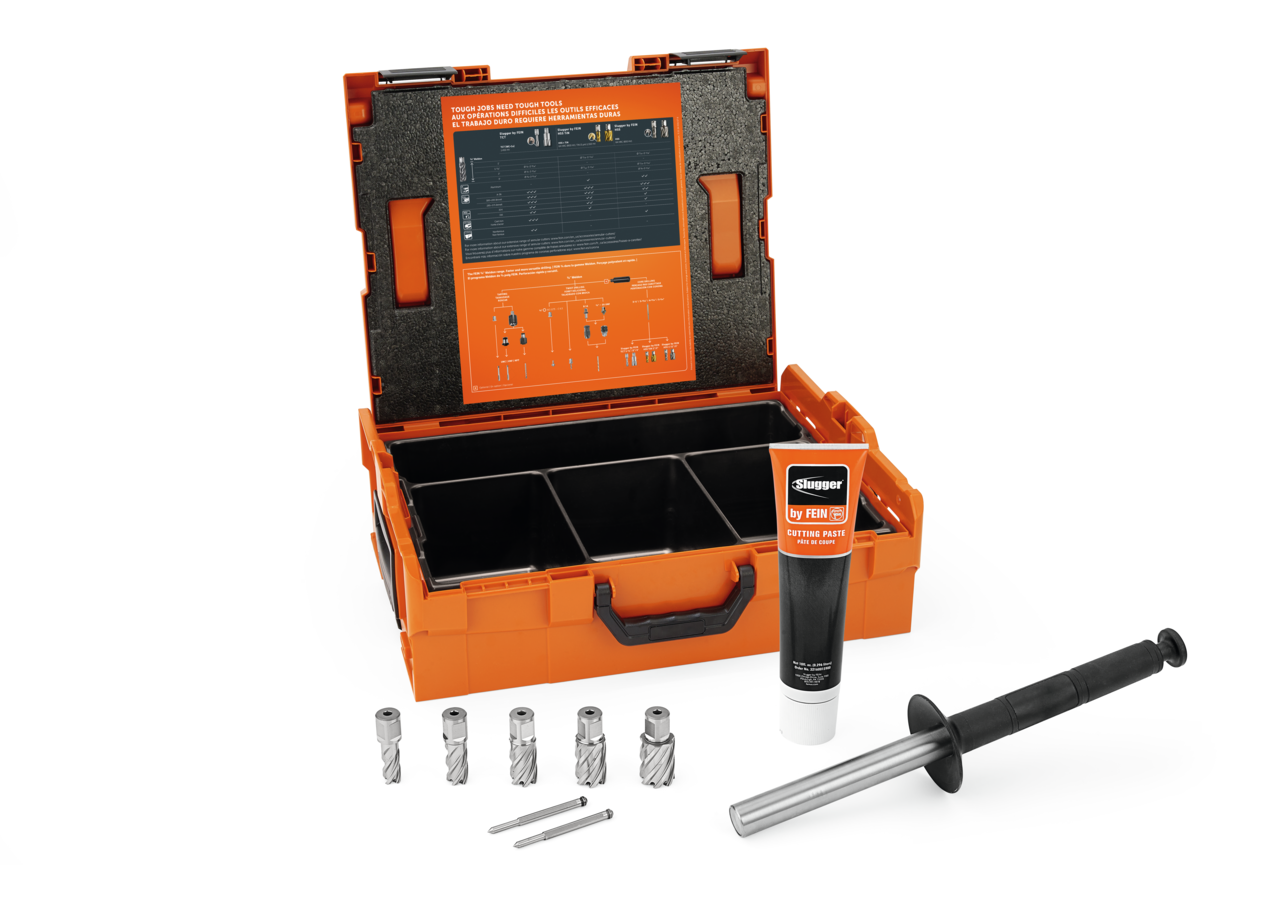

- 1 each HSS 1 in annular cutter 1 in [25 mm] cutting depth (Ø 9/16, 11/16, 13/16, 15/16, 1-1/16 in)
- 2 centering pin dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
- 1 Magbrush
- 1 Jancy Cutting Paste
- 1 L-BOXX 136 for accessories
