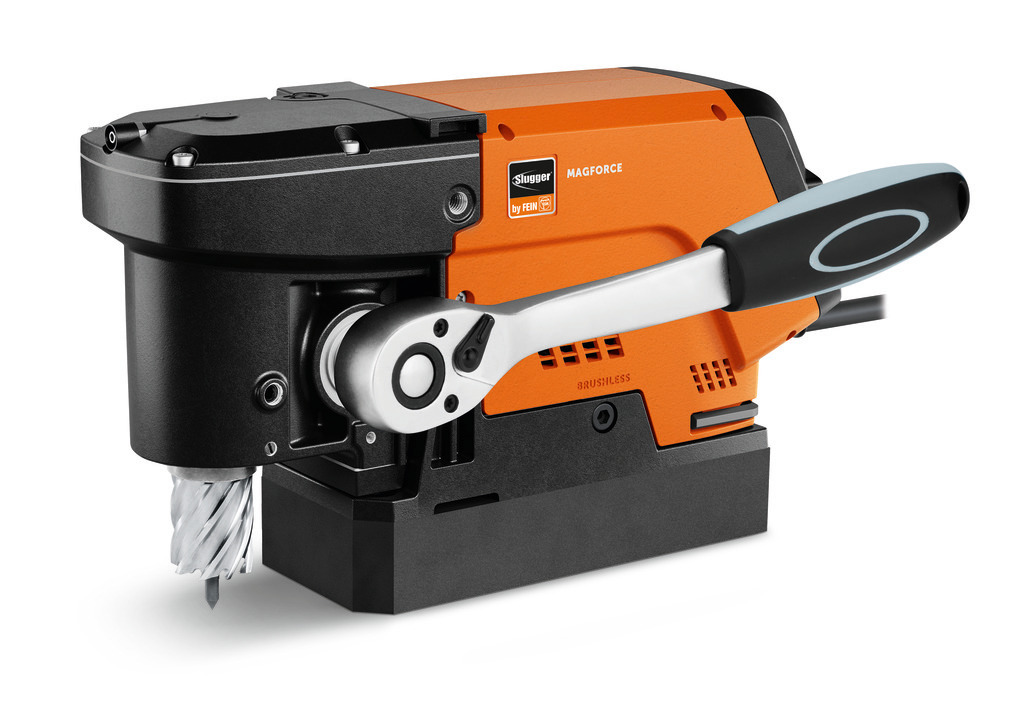

JMC MAGFORCE 90
Compact Magnetic Core Drill, up to 36 mm
JMC MAGFORCE 90
Compact Magnetic Core Drill, up to 36 mm

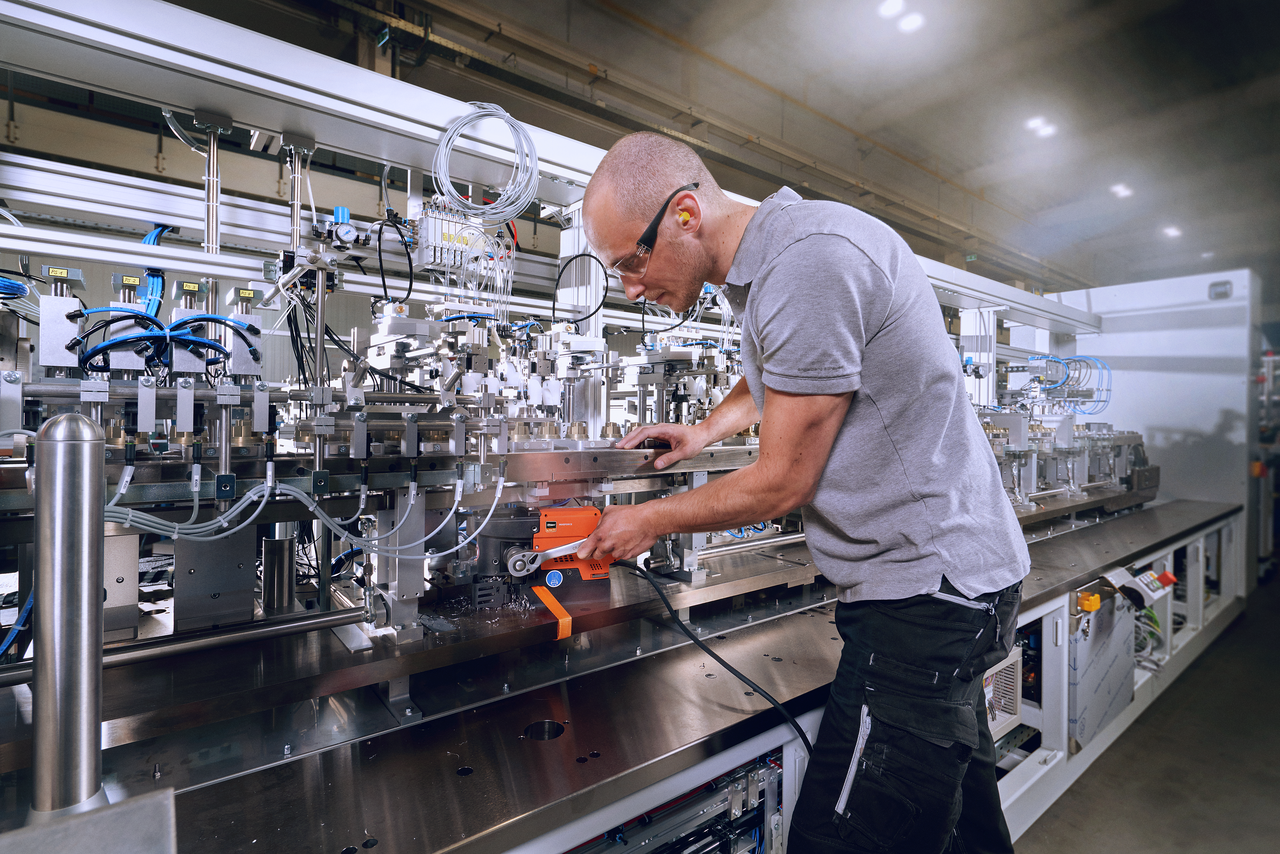

Extremely compact and lightweight 1-speed compact magnetic core drill with minimal dimensions for use in tight spaces in the workshop and on the job site.
Product number: 7 273 23 62 09 0
Details
- Very powerful and maintenance-free 1,200 W brushless high-performance motor with high speed stability for consistently high work efficiency, as well as forward/reverse rotation and electronic speed control for all drilling applications such as core drilling, spiral drilling, thread tapping, and countersinking.

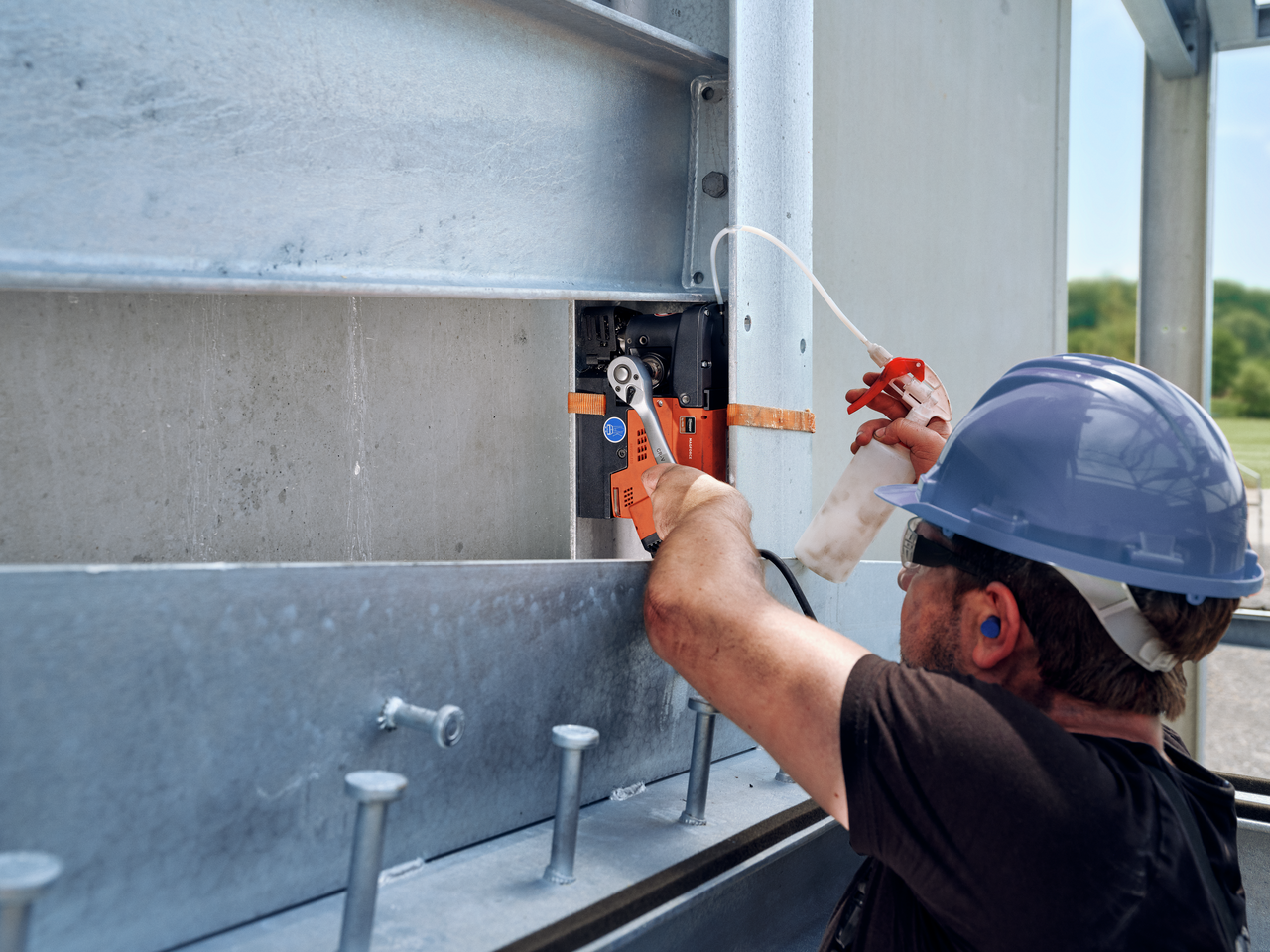

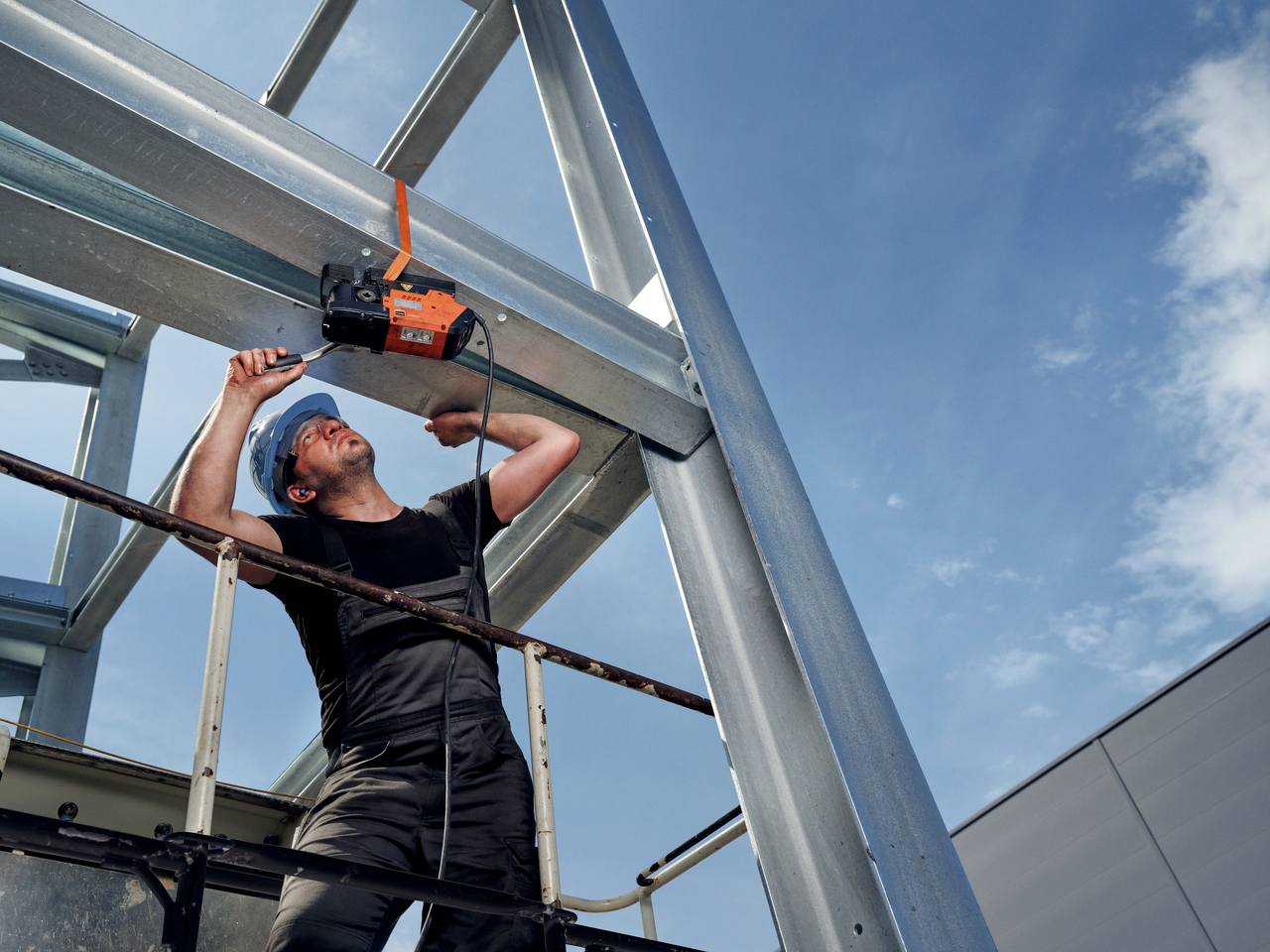

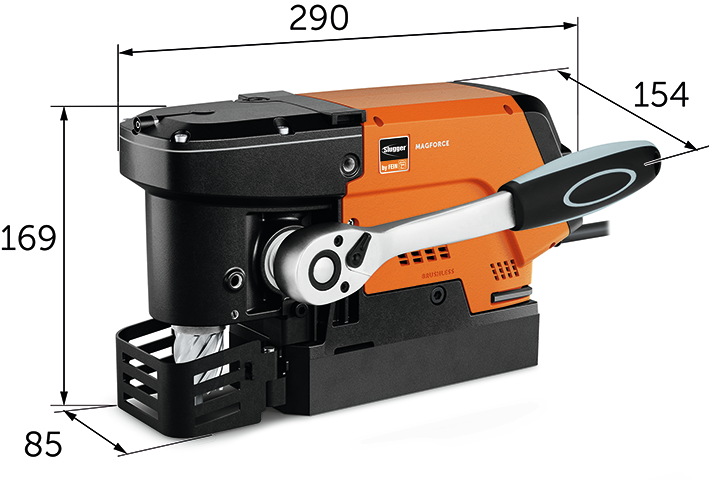

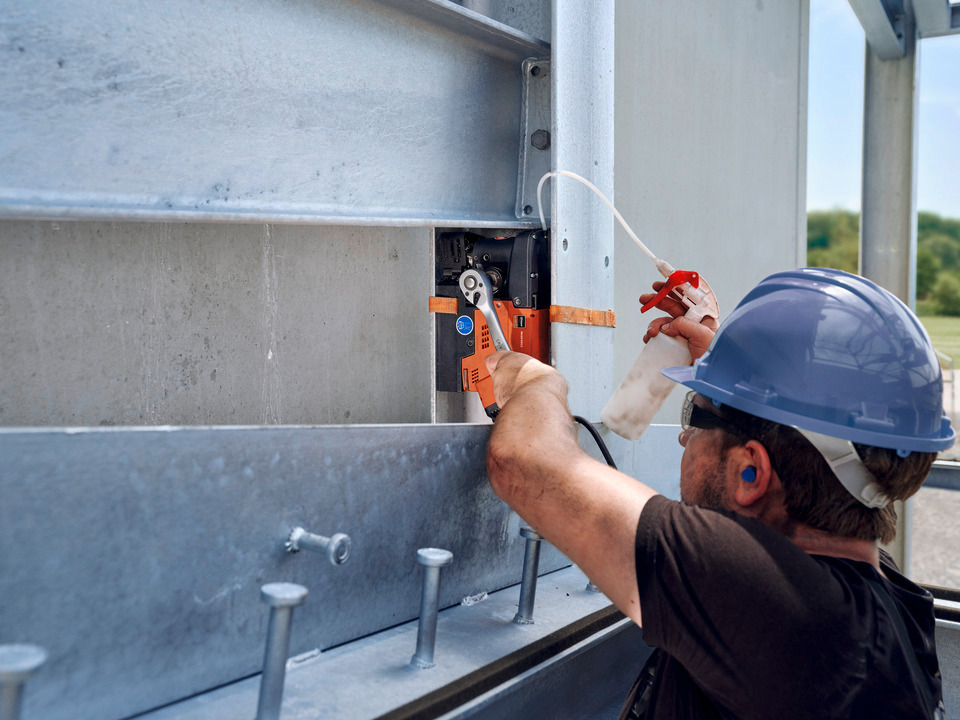

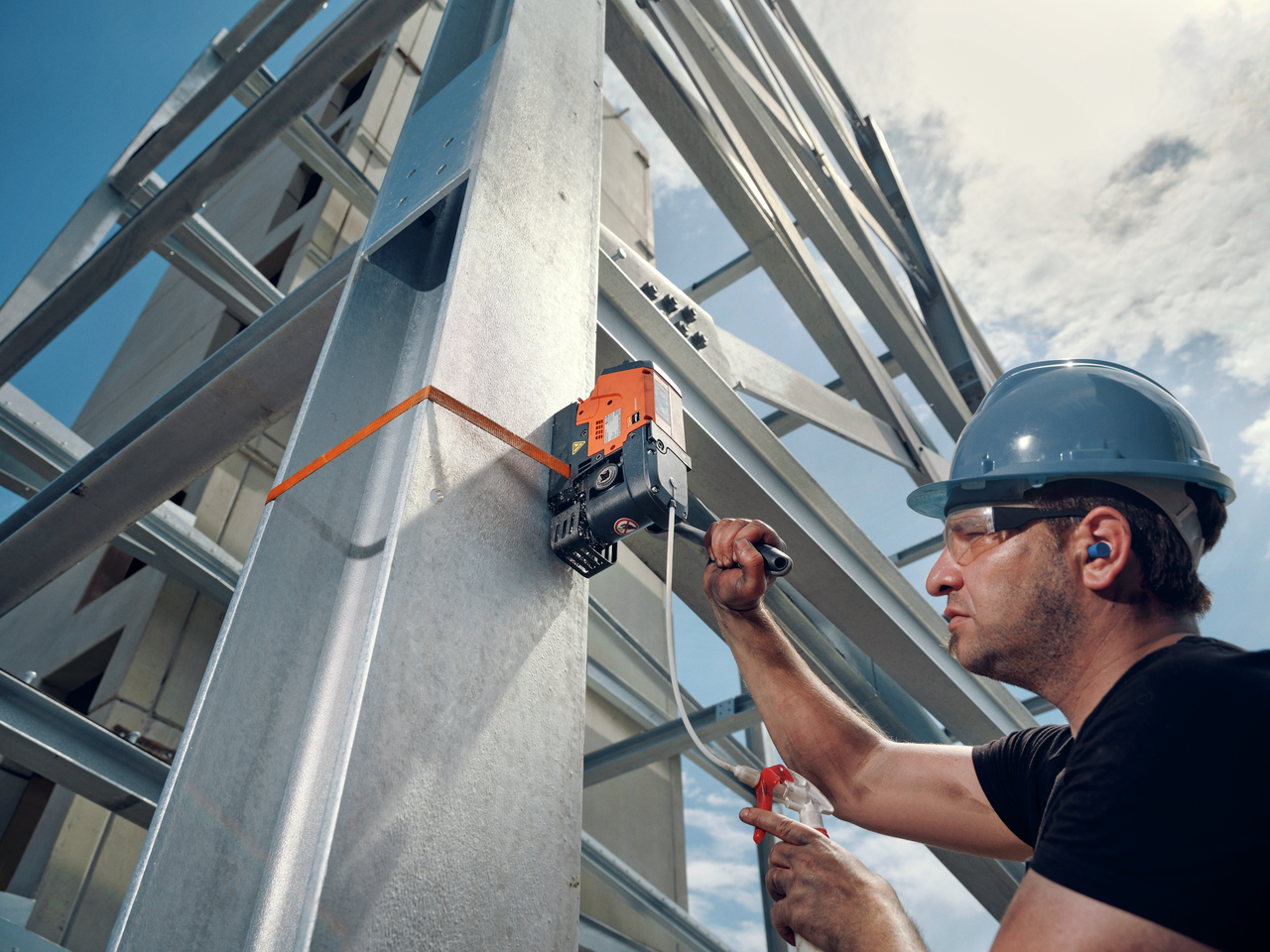

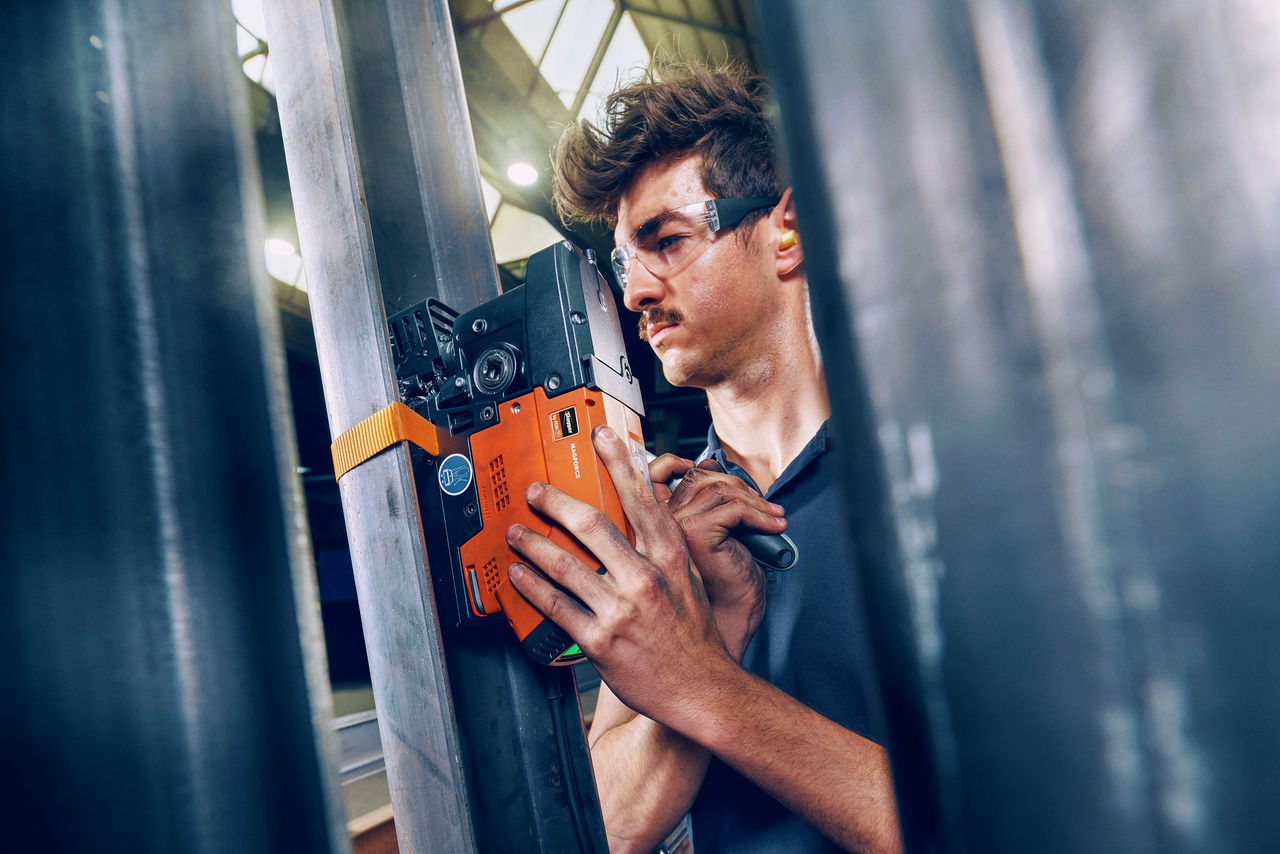

- Extremely compact and lightweight for working in confined and hard-to-reach areas—including vertical and overhead applications—thanks to a height of 169 mm, a length of 290 mm, and a weight of 8.5 kg.

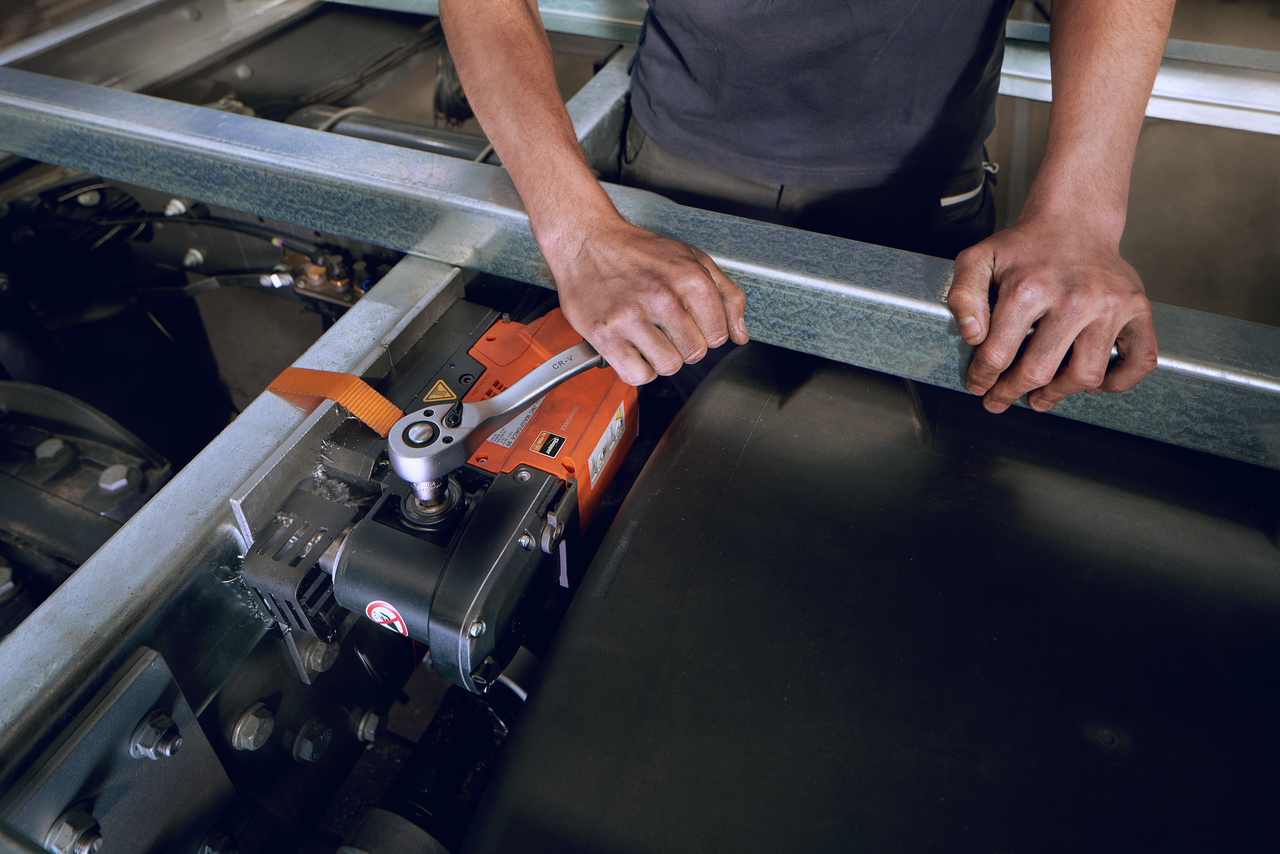

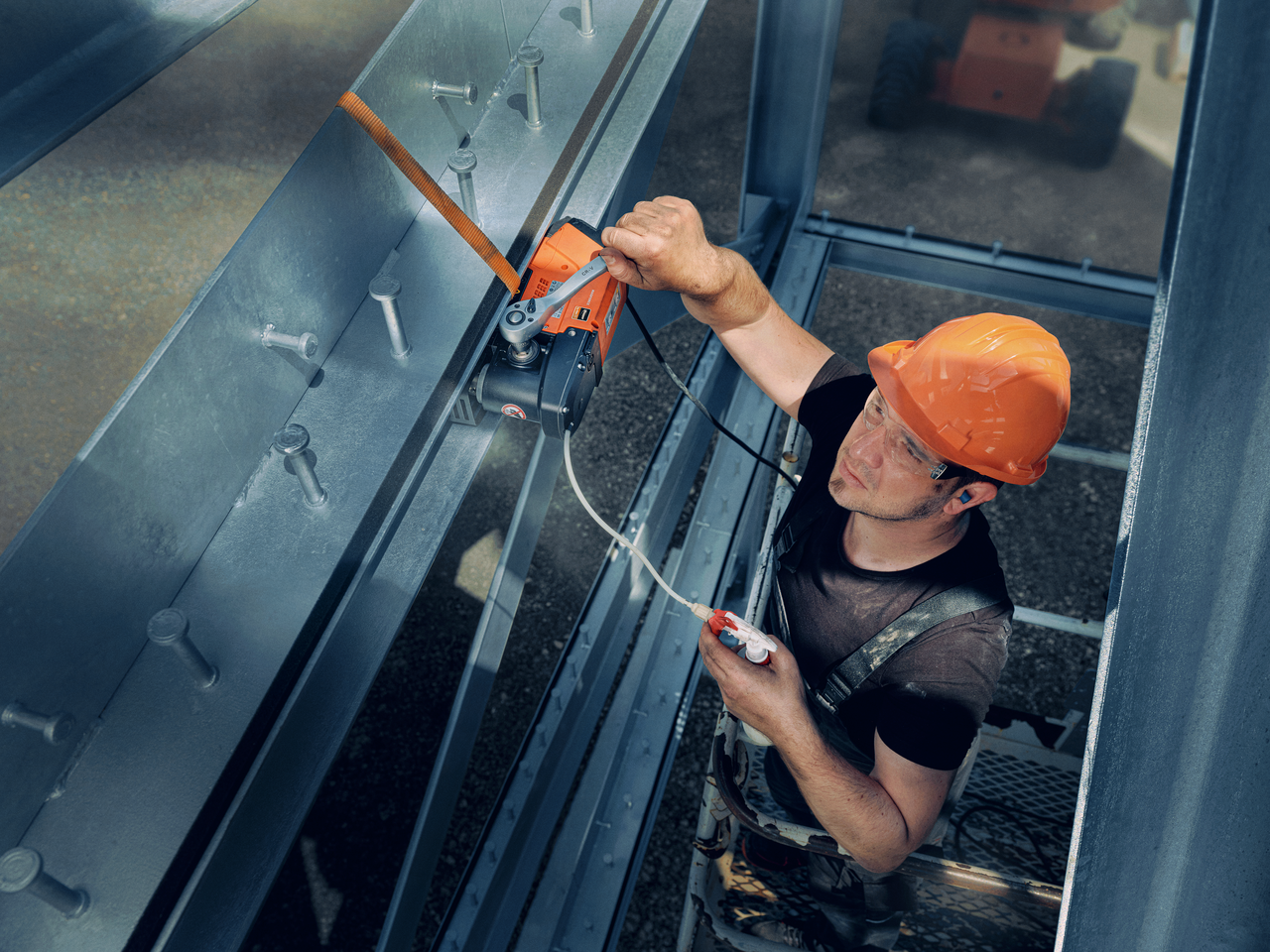

- Ratcheting handle allows you to work in even the tightest spaces.
- German-engineered to be extremely durable, wear-resistant for drilling in tough applications.
- Workplace Safety: Tilt sensor safety shutoff will shut down the drill in the event it should move or break free from the workpiece.
- Intuitive and error-proof operating concept within the user’s field of view.
- High gear level for clear view of the hole location.
- Large mounting space beneath the drill spindle with a stroke range of 46 mm.
- Drive shaft combines a 1/2-inch square drive and an 8 mm hex socket.
- Integrated carrying handle.
- "Memory function" speed storage.
- Slot for a 5 mm Allen key located directly on the machine.
- Inner cooling lubrication with included hand pump.
- Perfectly equipped for any application. Mobile work with the L-BOXX system.
Technical data
Technical data
Power consumption
1,200 W
Power output
680 W
Cutter holder
3/4" straight shank
Full load speed
130 - 610 rpm
No load speed
130 - 660 rpm
Carbide cutter max. dia.
1-3/8 [35] in[mm]
HSS cutter max. dia.
1-3/8 [35] in[mm]
Cutter max. drilling depth
1-3/8 [35] in[mm]
Twist drill max. dia.
9/16 [14] in[mm] in[mm]
Tapping
3/8" (M10)
Max. countersinking dia.
1-1/4 [32] in[mm]
Stroke
1-13/16 [46] in[mm]
Overall height
6-5/8" [169] in[mm]
Length
11-7/16" [290] in[mm]
Magnetic holding force
2248 [10,000] lbs[N]
Cable with plug
9.8 [3] ft[m]
Weight
18.74 [8.50] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
91,5 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
104,5 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
101,8 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
ah,D = <2,5 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 magnetic base drill
- 1/2 in ratchet
- 1/2 in socket wrench extension
- 1 coolant pump
- 1 safety strap
- 1 chip hook
- 1 centering pin 3-1/8" x 3/16'' [80 x 4,75 mm]
- 1 centering pin 3-1/4" x 1/4" [82 x 6,35 mm]
- 1 chip guard
- 1 handle
- 1 Allen key 5 mm
- 1 hexagonal socket key with T-grip 5 mm
- 1 plastic carrying case (L-BOXX 238)
Application
Product feature
- Magnet holding force display
- Forward/reverse operation
- Electronic speed setting
- Memory function
- Speed-controlled tacho electronics
- Tilt sensor
