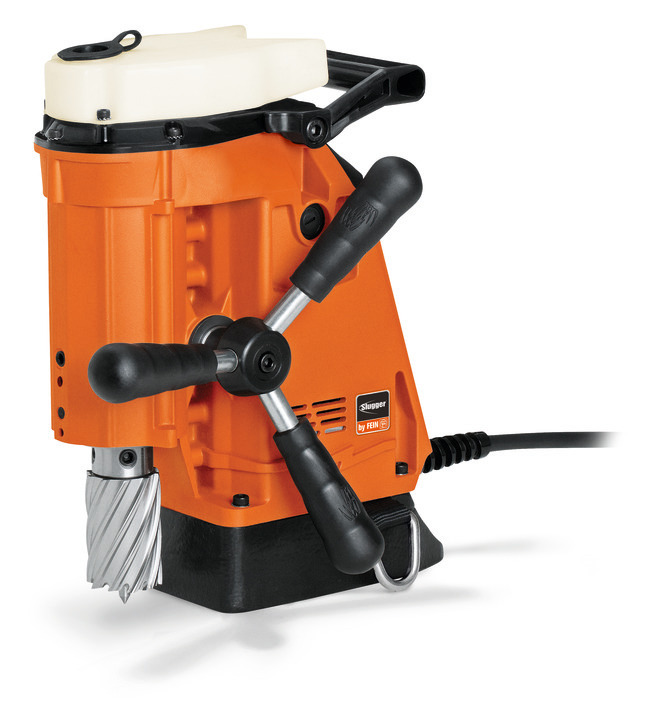

JHM Magforce
Mag Drill unit up to 1-5/8 [40] in[mm]
JHM Magforce
Mag Drill unit up to 1-5/8 [40] in[mm]
Compact with fixed drill motor for work in confined spaces.
Product number: 7 272 53 61 12 7
Details

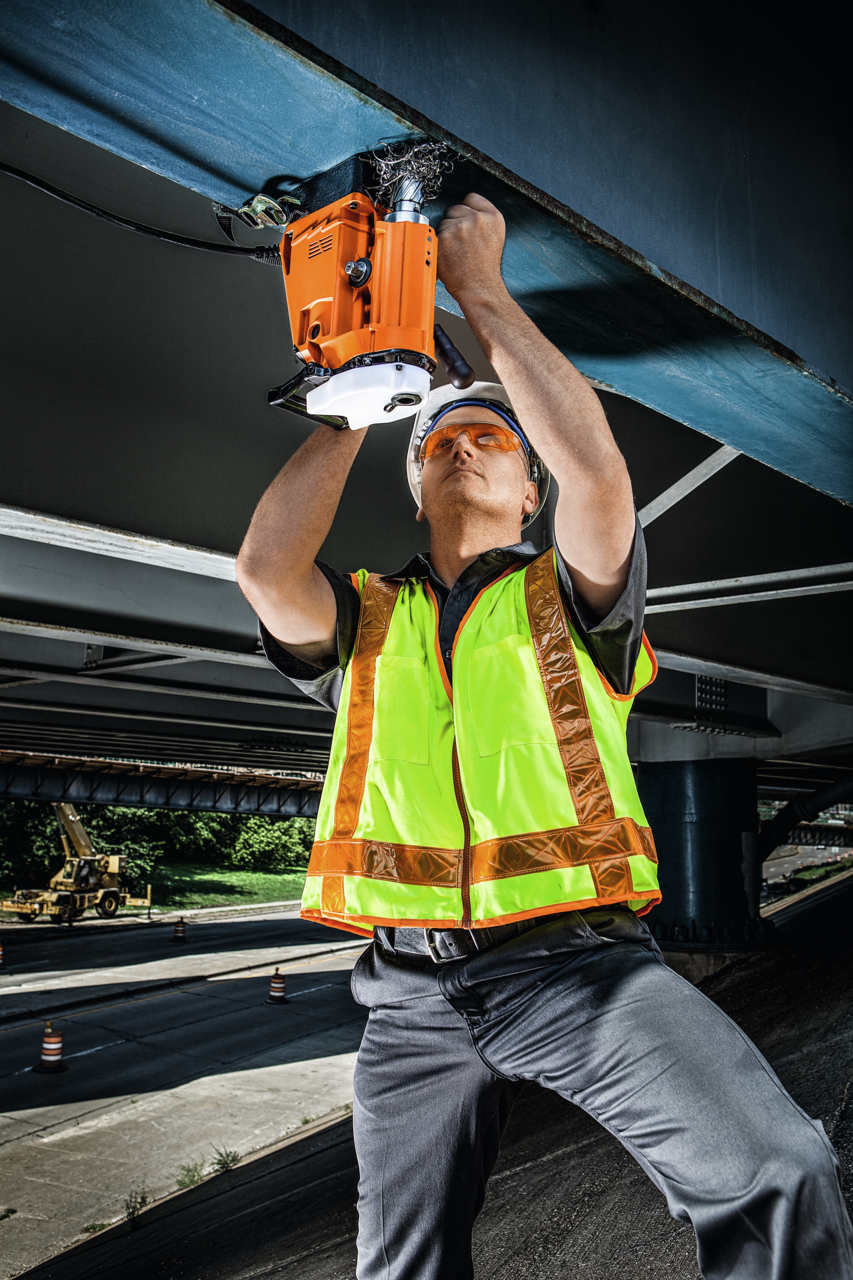

- Extremely compact with ideal power to weight ratio for work at heights and in confined spaces.
- Hand feed wheel mounts on either side for use in special situations.
- Internal motor cable routing prevents unintended threading or hanging up on the workpiece.
- Internal cooling.
- Solid die-cast aluminum construction.
- Stationary drill motor.
- Quill feed spindle eliminates field maintenance and adjustments and provides positive (mechanical) slug ejection.
Technical data
Power consumption
1,100 W
Power output
610 W
Full load speed
280
No load speed
450
HSS cutter max. dia.
1-9/16 [40] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Cutter holder
3/4" straight shank
Stroke
2-9/16 [65] in[mm]
Magnetic holding force
2023 [9,000] lbs[N]
Cable with plug
12.5 [3.8] ft[m]
Weight
28.88 [13.10] lbs[kg]
Downloads
Price includes
- 1 case
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 4 pilot pins
- 1 allen key 5 mm
- 1 chip guard
