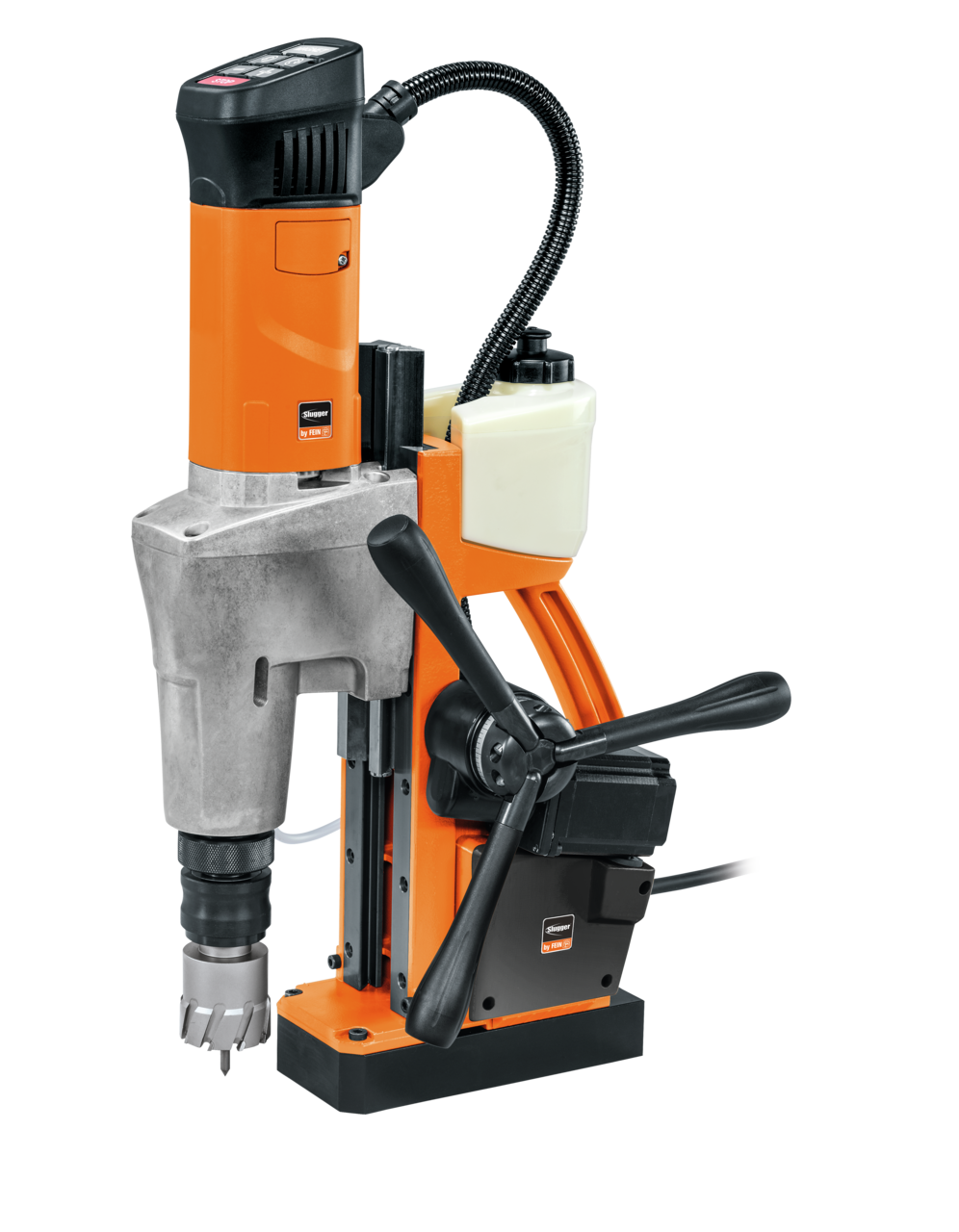

JCM 200 auto
Mag Drill unit up to 2 [50] in[mm]
JCM 200 auto
Mag Drill unit up to 2 [50] in[mm]
Light, smart, fully automatic 2-speed machine. Saves time and expense in the workshop and on the construction site.
Product number: 7 270 46 61 12 0
Details
- Time and cost savings in large volume drilling due to digitally controlled drill feed.
- Predictable work times on contract and serial work due to repeatable and consistent drilling times.
- Universal operation, such as tapping in manual machine mode using forward/reverse and the MT3 interface.
- High-power motor with stable speed.
- Electronic speed control.
- High magnetic holding force.
- A Convenient magnetic holding force indicator supports the safe positioning of the tool.
- Integrated coolant tank ensures high core drill tool life.
- Motion sensor.
- Control pads in the field of view.
- * optional using accessory.
- ** only in manual machine operation
Technical data
Technical data
Power consumption
1,200 W
Power output
610 W
Load speed: 1st gear
130 - 260
Load speed: 2nd gear
260 - 520
Tool mount
MT 3
Carbide cutter max. dia.
2 [50] in[mm]
HSS cutter max. dia.
1-9/16 [40] in[mm]
Cutter max. drilling depth
2 [50] (3 [75] )* in[mm]
Twist drill max. dia.
3/4 [18] /7/8 [23] ** in[mm]
Tapping
M 16**
Max. countersinking dia.
2 [50] ** in[mm]
Reaming max. dia.
7/8 [23] ** in[mm]
Cutter holder
3/4" straight shank
Cutter change
tool-free
Stroke
5-11/16 [145] in[mm]
Total stroke range
12-3/8 [315] in[mm]
Cable with plug
13.1 [4] ft[m]
Weight
36.16 [16.40] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
82,1 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
93,1 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
96,2 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Downloads

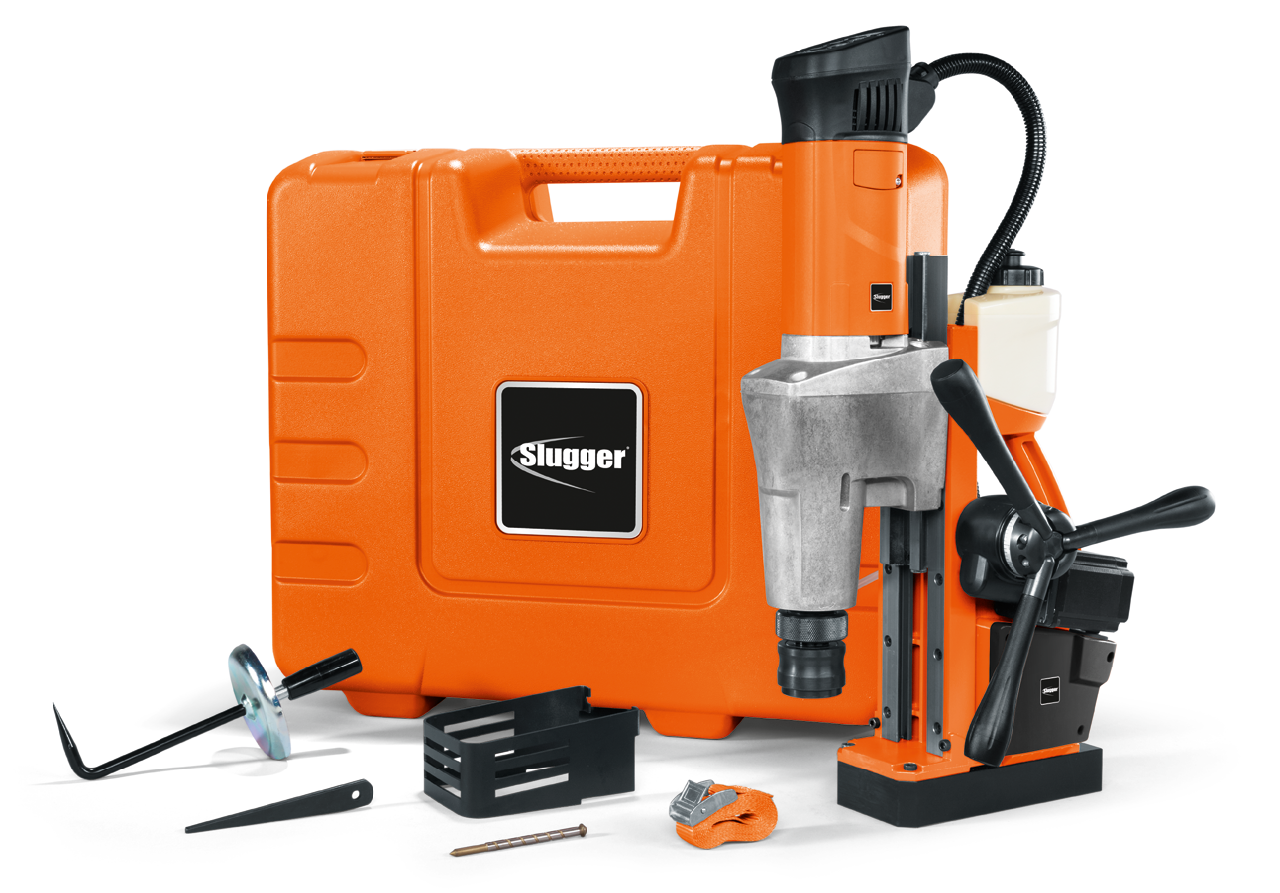

Price includes
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 pilot pin 4 1/8 in (105 mm)
- 1 drift
- 1 chip guard
- 1 case
Application
Product feature
- Magnet monitor system
- Magnet holding force display
- Automatic drill feed
- Forward/reverse operation
- Electronic speed setting
- Memory function
- Speed-controlled tacho electronics
- Tilt sensor
