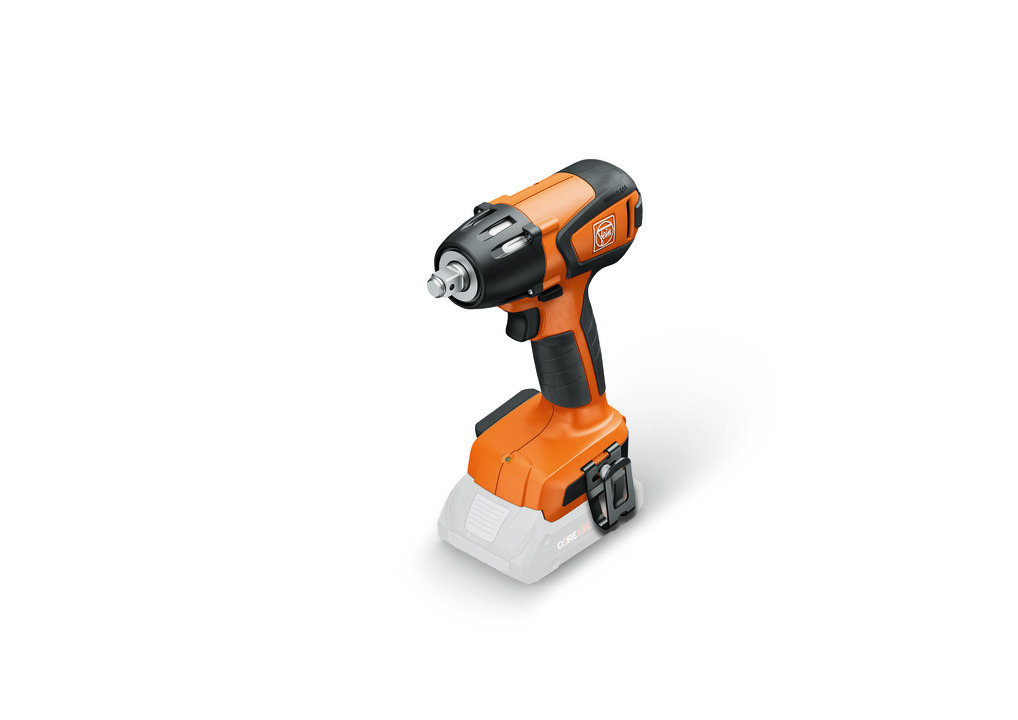

Cordless Impact Wrench

Up to max. 214 ft/lb with brushless motor and 6 torque settings. For screw applications up to 11/16 in [M18].

More Details

Product number: 7 115 10 61 09 0

Buy Demonstration
Buy Demonstration

ASCD 18-300 W2 AS

Add to Shopping Cart

Details

  • Extreme precision: the ASCD 18-300 W2 AS with 6 electronic torque settings.

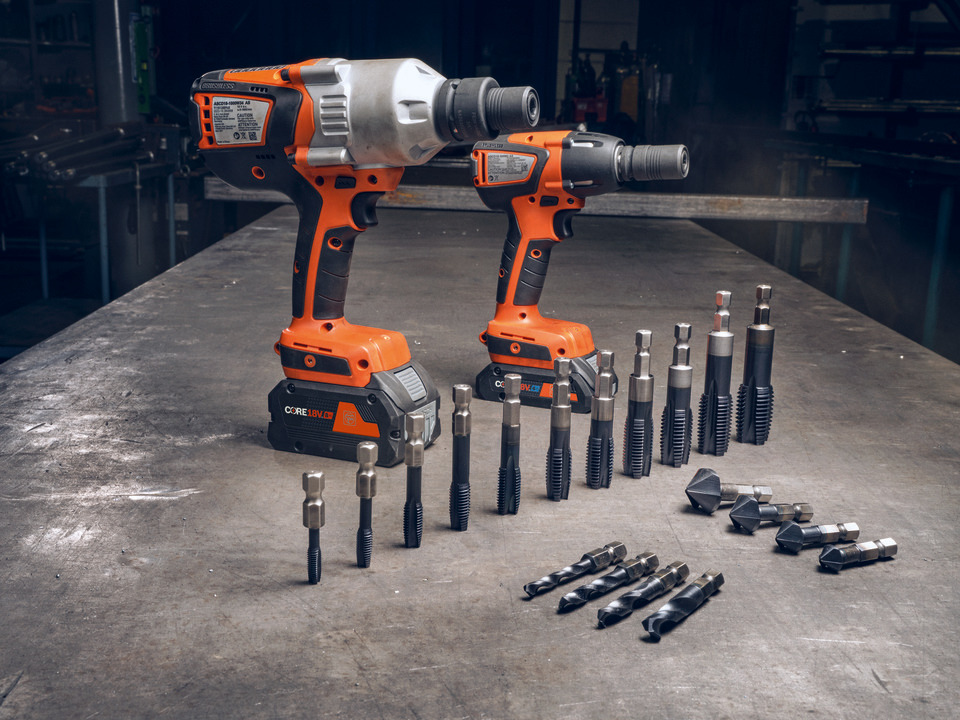

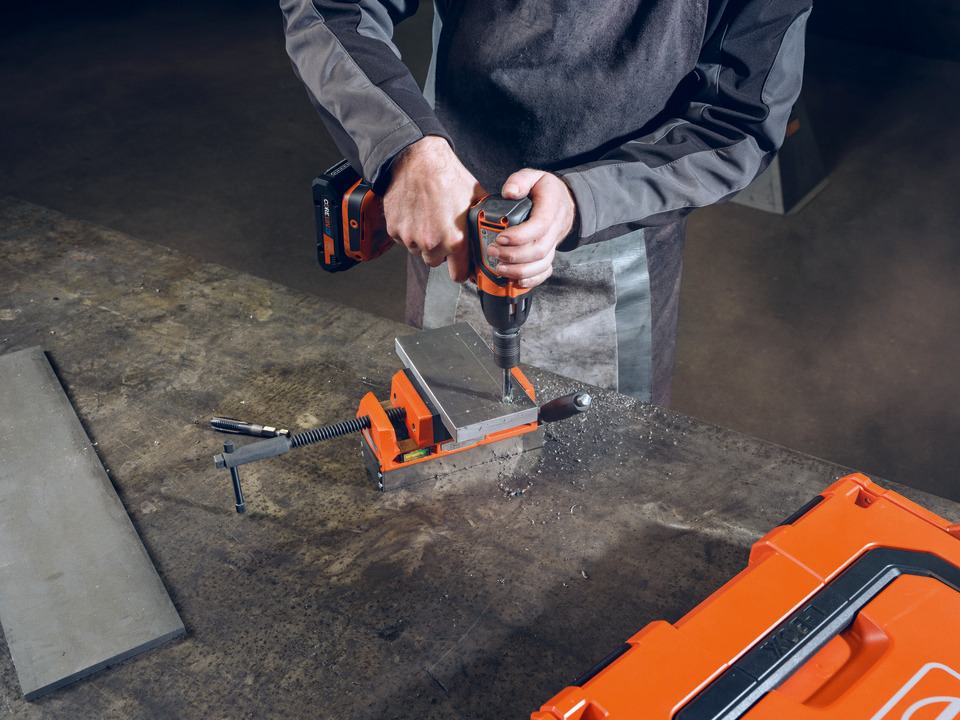

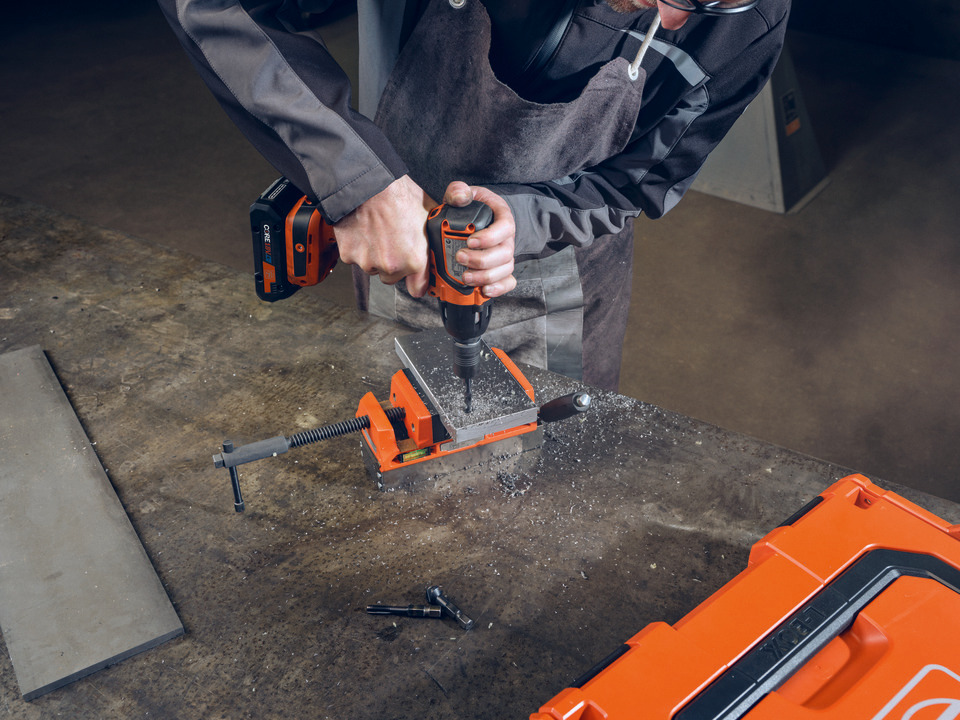

  • The VARIO adapter expands the range of the impact wrench to include drilling, countersinking, and tapping.
  • Brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
  • 1/2" square drive for mounting impact sockets.
  • 10% higher torque in reverse.
  • Robust, solid metal impact gearbox.
  • Up to 600 fastening applications 11/16 in with one battery charge (CORE 18 V 4 Ah).
  • Compact design.
  • Comes with a magnetic bit holder and belt clip.
  • Compatible with all CORE 18 V AMPShare batteries and chargers, for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless tools.
  • COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
  • State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
  • CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
  • Perfectly equipped for any job with our L-BOXX system.

Technical data

Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Motor
brushless
No load speed
0 - 1700
Impacts per minute
0 - 3400
Max. torque
in/lbs[Nm]
Max. torque
214 ft/lb
Torque steps
6
Tool mount
1/2" square
Max. bolt
11/16 in [M18]
Weight without battery
2.65 [1.20] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
99,2 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
107,2 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
121,5 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh 15,0 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²

Downloads

Product datasheet

PDF 1,58 MB

Download Product datasheet (1,58 MB)

Manual instruction

PDF 9,81 MB

Download Manual instruction (9,81 MB)

Manual instruction

PDF 10,00 MB

Download Manual instruction (10,00 MB)

Price includes

  • 1 belt clip
  • 1 magnetic bit holder
  • 1 tool case (L-BOXX 136)
