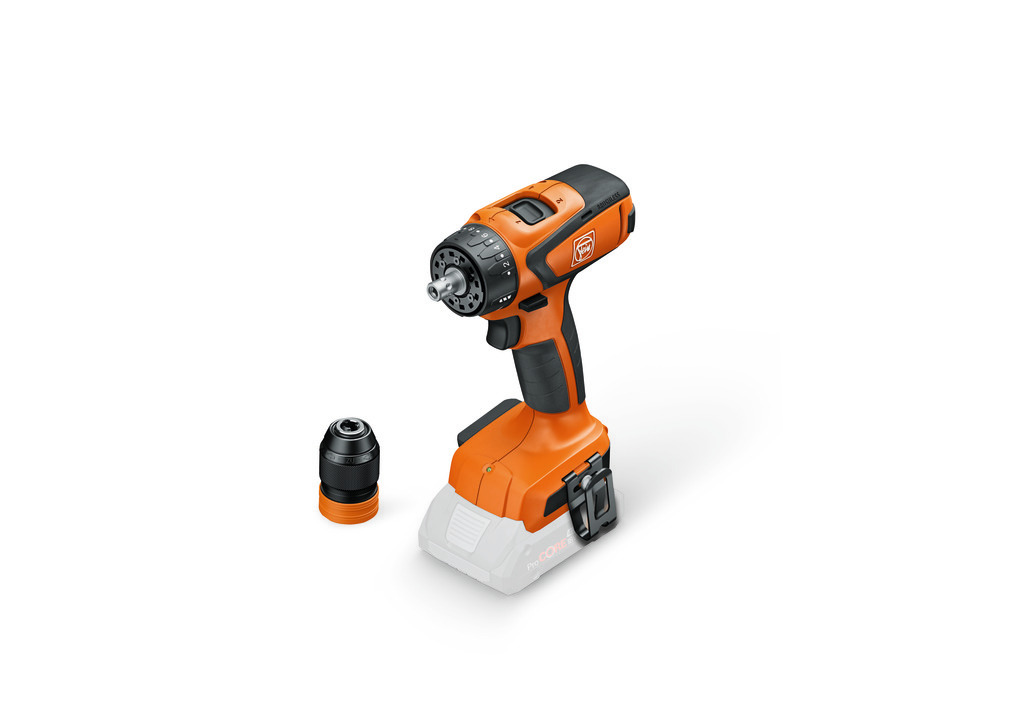

ASCM 18 QSW AS
4-speed cordless drill/driver
ASCM 18 QSW AS
4-speed cordless drill/driver
Smaller and lighter 4-speed cordless drill/driver with brushless motor and QuickIN interface. Ideal for universal drilling and screw applications.
Product number: 7 116 14 61 09 0
Details
- Solid metal gearbox with 4 speeds for optimal cutting speeds for drilling in metal.
- QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.
- With the compact and lightweight 2.87 [1.30] lbs[kg] design, the ASCM 18 QSW is the lightest 4-speed drill driver compared to others on the market.
- Brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
- QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.
- Mechanical torque setting.
- Drives up to 1,100 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah).
- User safe with restart and electronic overload protection.
- Comes with a magnetic bit holder and belt clip.
- Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- Easily transported with our stackable L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Motor
brushless
Gearbox
4-speed
Accessory interface
QuickIN
No load speed
400 / 700 / 1,400 / 2,500
Max. torque (hard/soft)
354 [40] / 266 [30] in/lbs[Nm]
Torque steps
20 + 1
Chuck capacity
1/16 [1.5] - 1/2 [13] in[mm]
Fastening
3/8 [8] x 7-7/8 [200] in[mm]
Twist drill diameter capacity in steel
1/2 [13] in[mm]
Holesaw diameter capacity in wood
1-9/16 [40] in[mm]
Tapping
5/16"
Weight without battery
2.18 [0.99] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
80,3 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
88,3 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
94,0 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
ah,D 1,3 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
ah 0,9 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 QuickIN drill chuck 1,062 [120] in/lbs[Nm]
- 1 belt clip
- 1 magnetic bit holder
- 1 tool case (L-BOXX 136)
Product feature
- Removable drill chuck
- 4-speed gearbox
- QuickIN accessory interface
