ASCM 18-4 QMP AS Universal-lean-top Set
Cordless hammer drill/driver in user set.
ASCM 18-4 QMP AS Universal-lean-top Set
Cordless hammer drill/driver in user set.

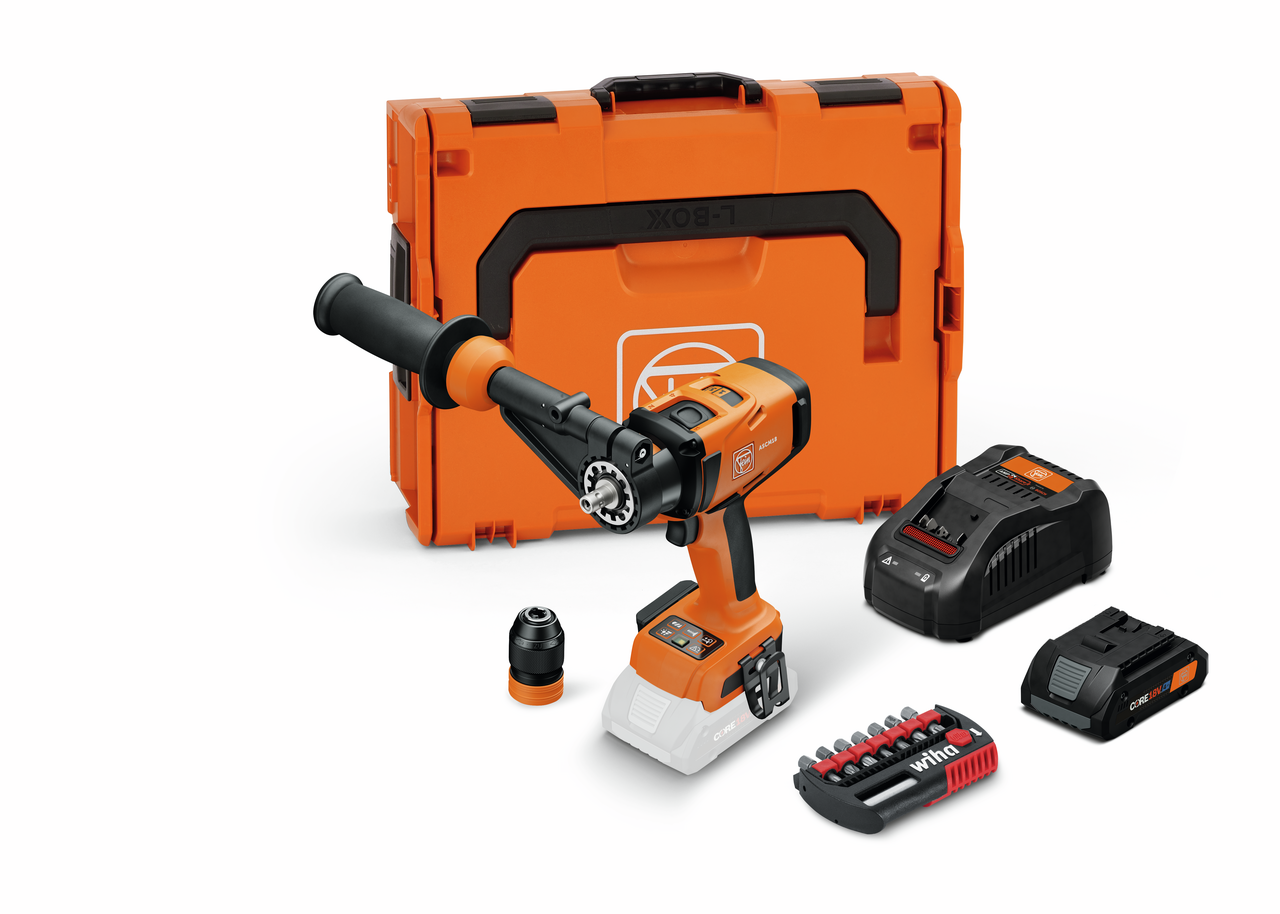

High performance ASCM 18-4 QMP AS with 8-piece bit set, 1 rechargeable battery (CORE 18 V 4 Ah) and quick charger (GAL 1880 CV AS).
Product number: 7 116 15 62 09 0
Details
- 4-speed gearbox with hammer function for optimal cutting speeds in metal for holes from 1/16" to 3-1/8".

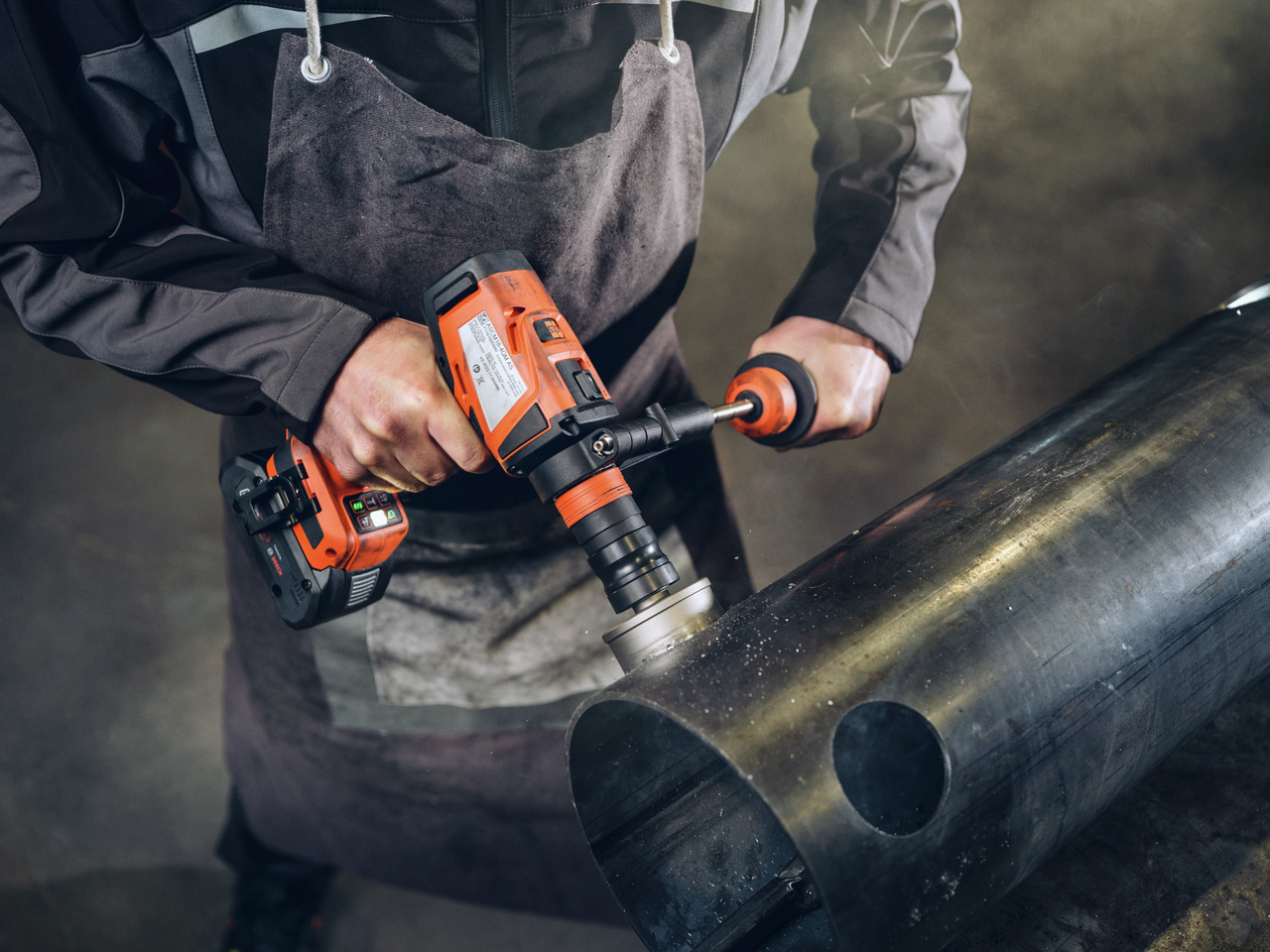

- Great versatility with the FEIN QuickIN system for multi-functional use related to drilling, core drilling, tapping, countersinking, and screw applications.
- QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.
- Extremely safe with kickback monitoring which stops the tool.
- More control with the extendable auxiliary handle.
- Selectable hammer function for drilling in stone and masonry up to 1/2".
- The brushless, high-performance FEIN PowerDrive motor with up to 30% higher efficiency extends the service life.
- High torque up to a maximum of 1,150 in/lb.
- QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.
- Electronic torque setting (15+1).
- Intuitive control panel with dimmable LED for perfect illumination of the work area.
- Comes with a magnetic bit holder and belt clip.
- 8-piece bit set with bit holder and 7 bits (PZ2, PZ3, T15, T20, T25, T30, T40, 60-1/4) .
- Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.
- Over screw driving function to prevent screw from driving too deep into the wood.
- Drives up to 1,400 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah)
- User safe with restart and electronic overload protection.
- Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- Perfectly equipped for any job with our L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Motor
brushless
Gearbox
4-speed
Accessory interface
QuickIN
No load speed
430 / 850 / 2 000 / 4 000
Impacts per minute
6 450 / 12 750 / 30 000 / 60 000
Max. torque (hard/soft)
1,151 [130] (620 [70] / 443 [50] ) in/lbs[Nm]
Torque steps
15 + 1

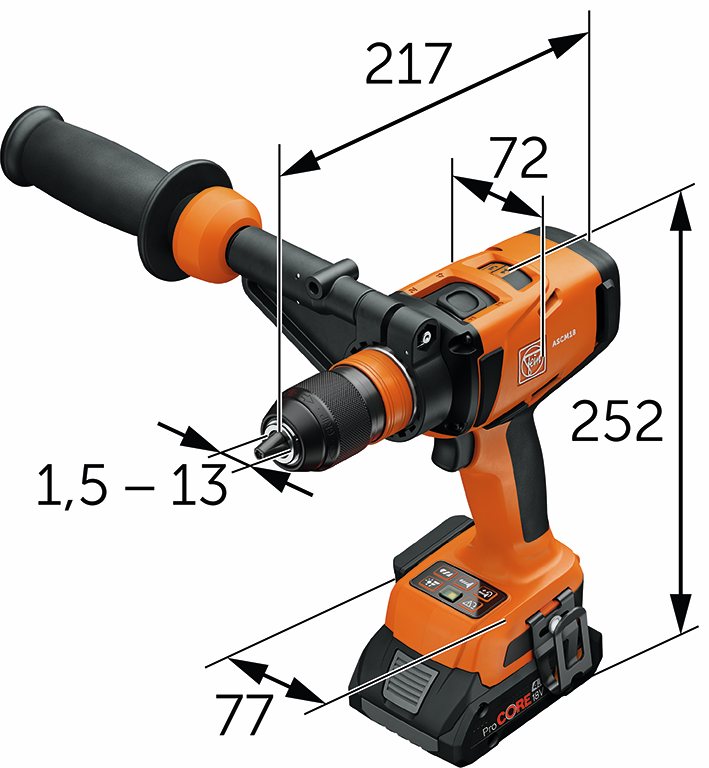

Chuck capacity
1/16 [1.5] - 1/2 [13] in[mm]
Fastening
3/8 [10] x 15-3/4 [400] in[mm]
Drill Ø steel twist drill
1/2 [13] in[mm]
Holesaw diameter capacity in wood
2-3/8 [60] in[mm]
Capacity in stone Ø
1/2 [13] in[mm]
Tapping
1/2" [M14]
Weight without battery
3.09 [1.40] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
93,9 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
101,9 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
113,4 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah,D 0,8 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
ah 0,5 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 ASCM 18-4 QMP AS (incl. handle, belt clip, magnetic bit holder)
- 1 battery pack CORE 18 V 4.0 Ah AS
- 1 rapid charger GAL 1880 CV AS
- 1 8-piece bit set
- 1 tool case (L-BOXX 136)
Product feature
- Removable drill chuck
- Electronic torque-controlled shut-off
- 4-speed gearbox
- QuickIN accessory interface
- Dimmable LED
- Drilling and over screw function
