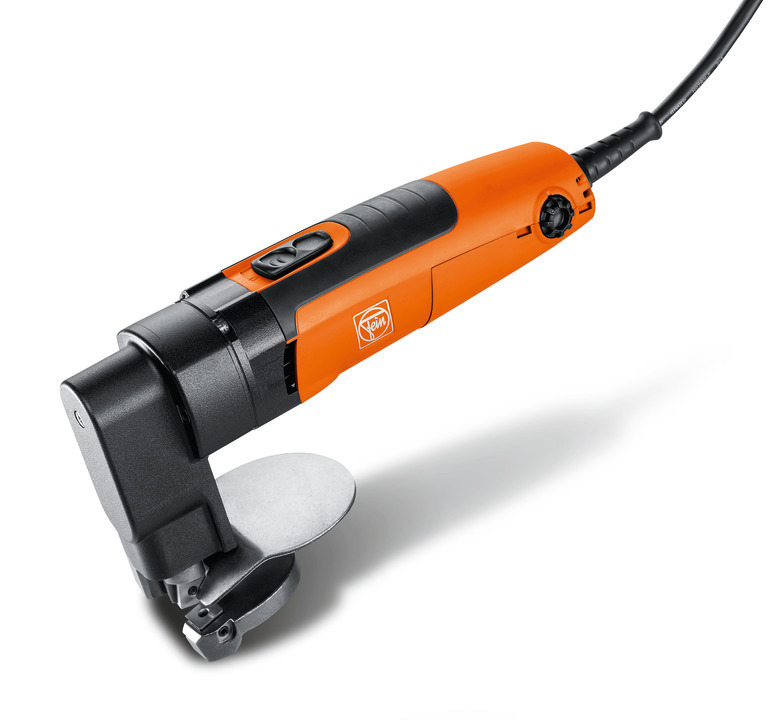

BLS 2.5 E
Sheet Metal Shear up to 12 gauge
BLS 2.5 E
Sheet Metal Shear up to 12 gauge
Easy-to-use, curve-compatible sheet metal shear for working with stainless steel.
Product number: 7 230 35 61 09 0
Details
- High performance and powerful motor for the most difficult tasks.
- Unrestricted view of the cutting line makes faster work progress possible.
- Indexible cutting blades with four sides for clean and burr-free cutting with low operating costs.

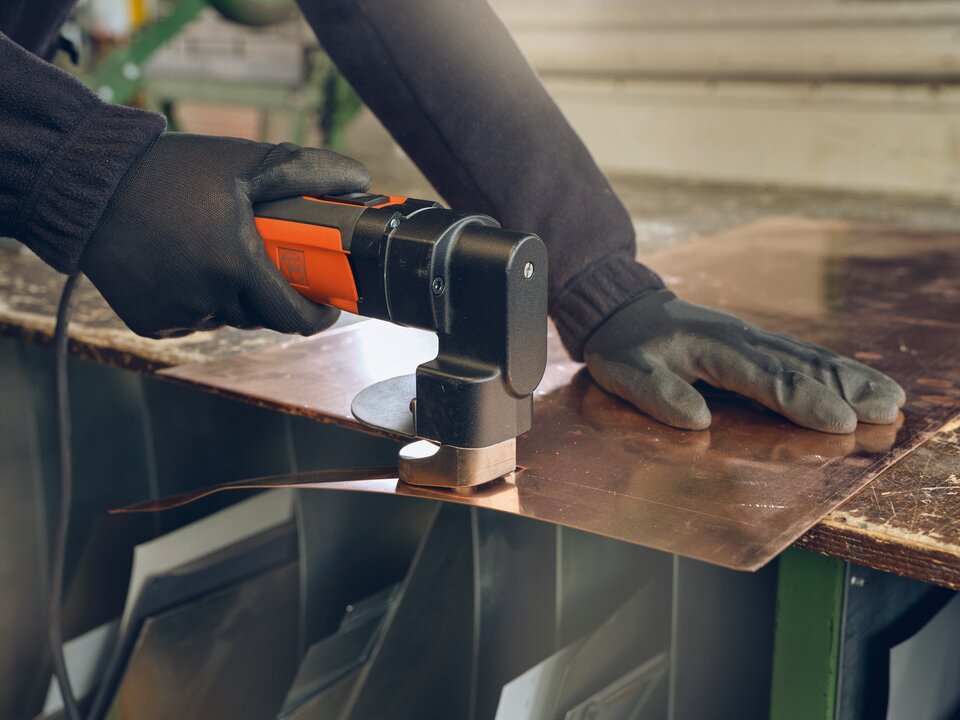

- Perfect for trimming and cutting.
- Unrestricted view of the cutting line.
- Good curve precision with low sheet-metal distortion.
- 16 ft. [5 m] cable.
- Stainless steel up to 16 gauge [1.6 mm].
Technical data
Technical data
Power consumption
350 W
Power output
210 W
Strokes
800 - 1,700 spm
Cutting speed
9.8 [3] - 19.7 [6] ft/min[m/min]
Steel 58,000 lbf/in²
0/1 [2.5] in[mm]
Steel 87,000 lbf/in²
5/64 [2] in[mm]
Steel 116,000 lbf/in²
0/1 [1.6] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
1/8 [3] in[mm]
Radius of smallest curve
3/4 [20] in[mm]
Cable with plug
16.4 [5] ft[m]
Weight
4.63 [2.10] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
81,7 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
92,7 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
93,8 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
4,8 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 plunger and fixed blade (63601101009)
- 1 hand guard, mounted
- 1 allen key 2,5 mm
- 1 Allen key 4 mm
Application
Product feature
- Reversing blade: 4x
- Variable speed
