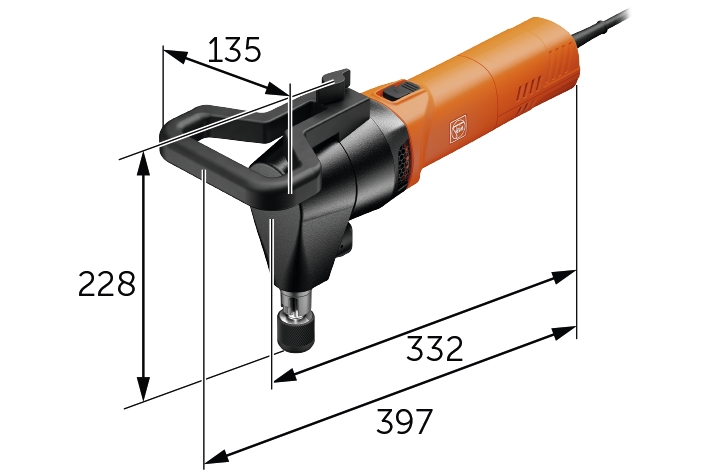

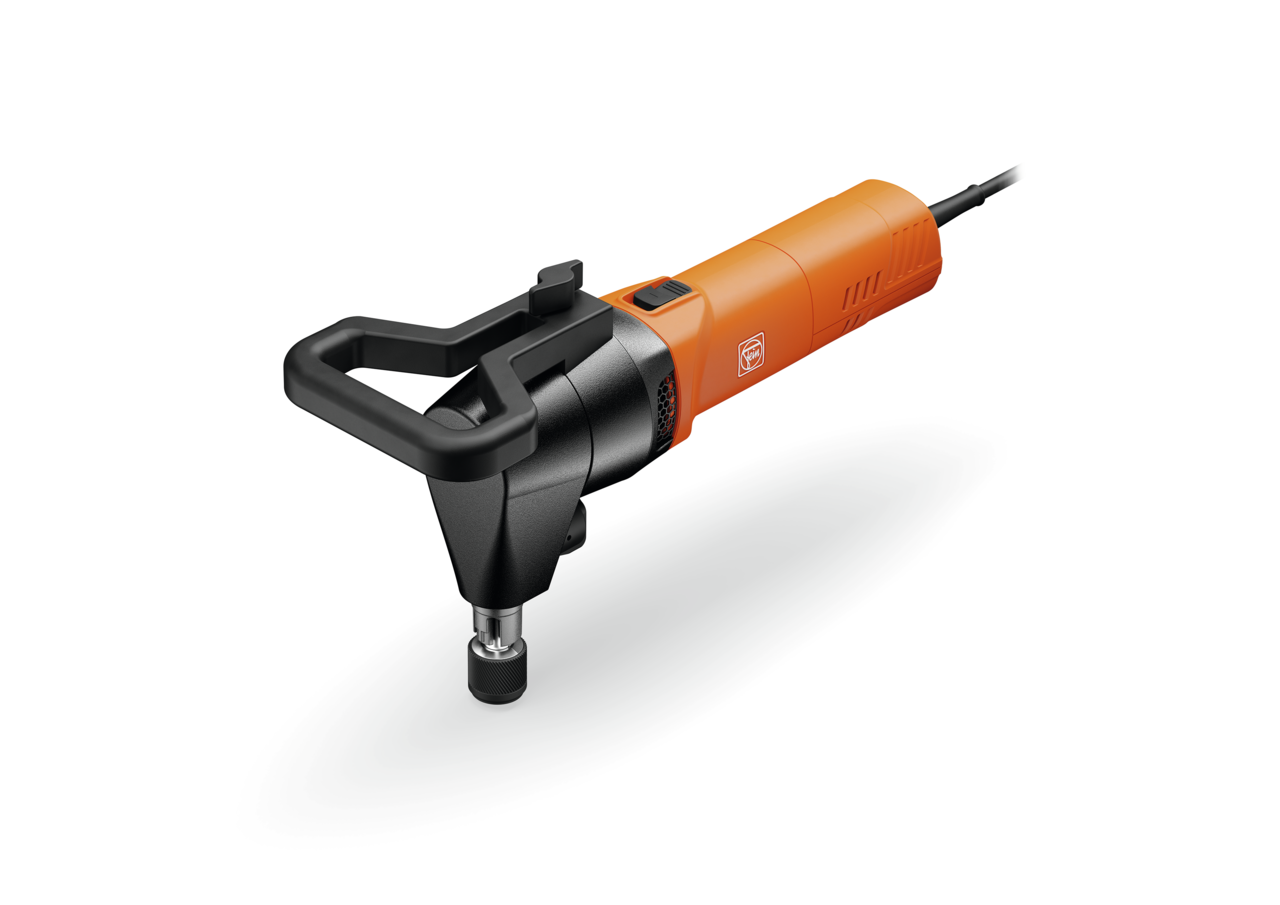

BLK 3.5 E
Nibbler up to 10 gauge
BLK 3.5 E
Nibbler up to 10 gauge
Powerful nibbler with unlimited curve-compatibility for grooves and cut-outs.
Product number: 7 232 46 61 09 0
Details
- With high curve-compatibility, the tool can be rotated to a specific position. This makes it ideal for cut-outs and cuts, e.g., templates in sheet metal.
- Warp-free cutting of flat and bent sheet metal.
- Extensive user protection: Restart protection, blocking protection, overload protection, soft start.
- Cutting direction: 3 x 90°, tool-free configuration.
- Powerful 1,700 W motor.
- Variable number of strokes.
- Tool-free rapid change system for dies and punches.
- Ergonomic handle suitable for guiding in all directions.
- Chip protection mesh on vent slots.
- Wide range of accessories.
Technical data
Technical data
Power consumption
1,700 W
Power output
1,000 W
Strokes
820 spm
Cutting speed
5 [1.5] ft/min[m/min]
Steel 58,000 lbf/in²
9/64 [3.5] in[mm]
Steel 87,000 lbf/in²
3/32 [2.3] in[mm]
Steel 116,000 lbf/in²
5/64 [1.8] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
1/8 [3.5] in[mm]
Cutting width
9/16 [14] in[mm]
Immersion Ø with die
1-3/16 [30] in[mm]
Radius of smallest curve (inside/outside)
1/4 [7] / in[mm]
Cable with plug
13 [4] ft[m]
Weight
7.94 lbs
Vibration and sound emission values
Sound pressure level LpA
92,1 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
100,1 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
110,5 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
10,5 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 steel die (31309093003), mounted
- 1 steel punch (31309097002), mounted
- 1 accessory handle, mounted
- 1 spacer sleeve (31309100014)

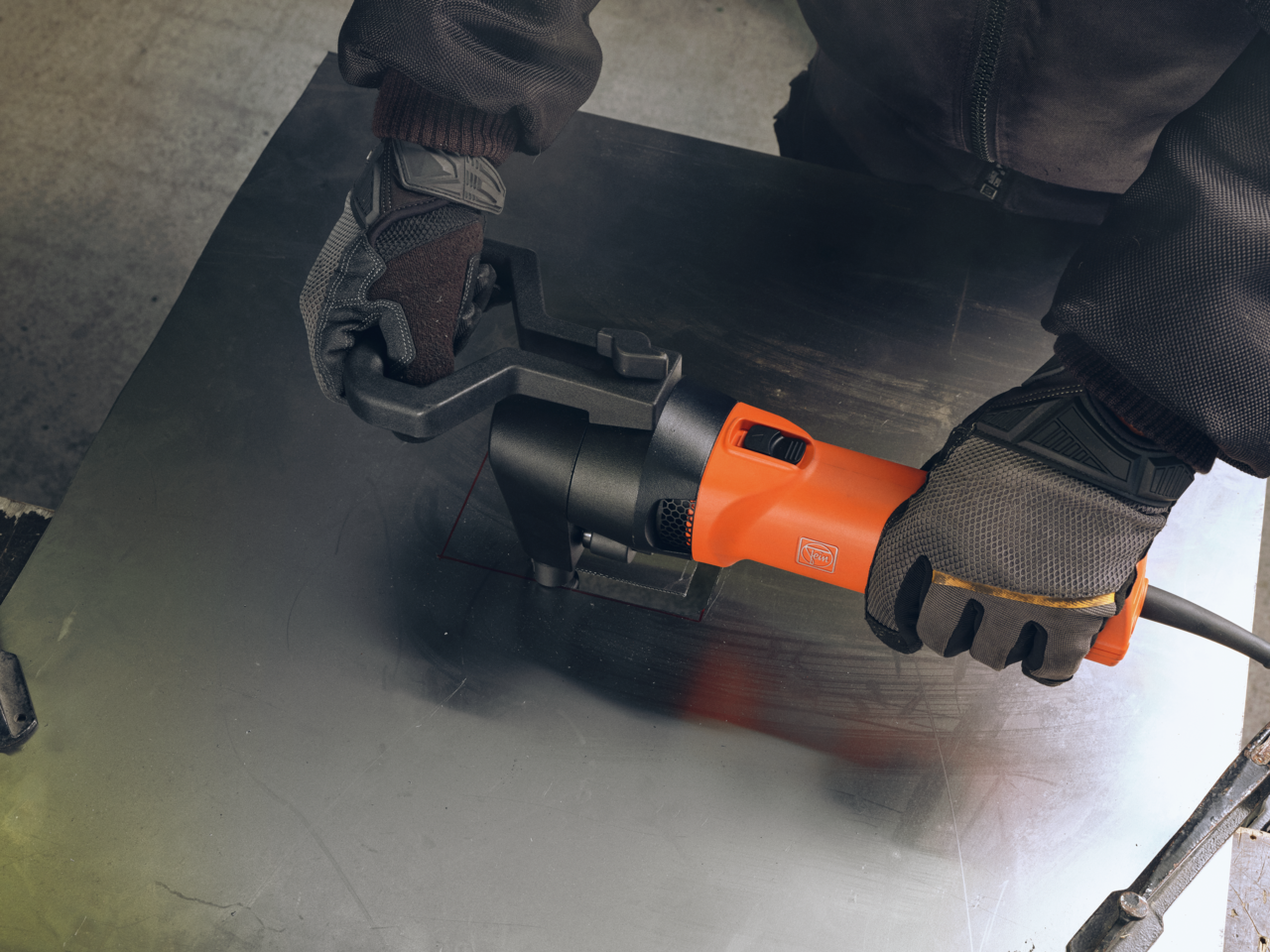

Application
Product feature
- Cutting direction: 3x90°
- QuickIN
- Variable speed
- Accessory handle
