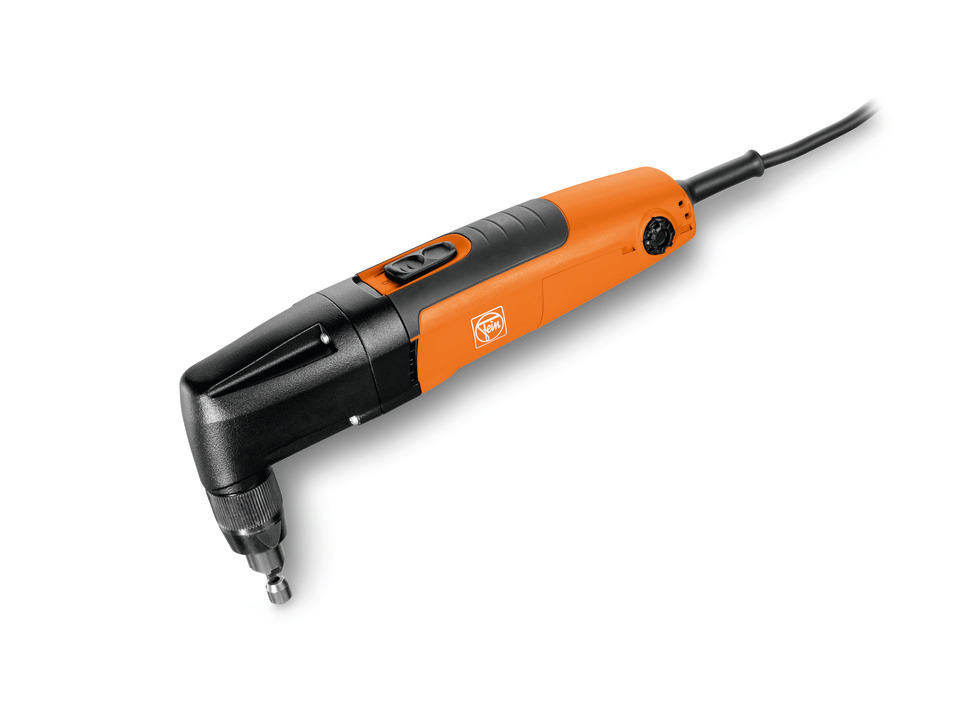

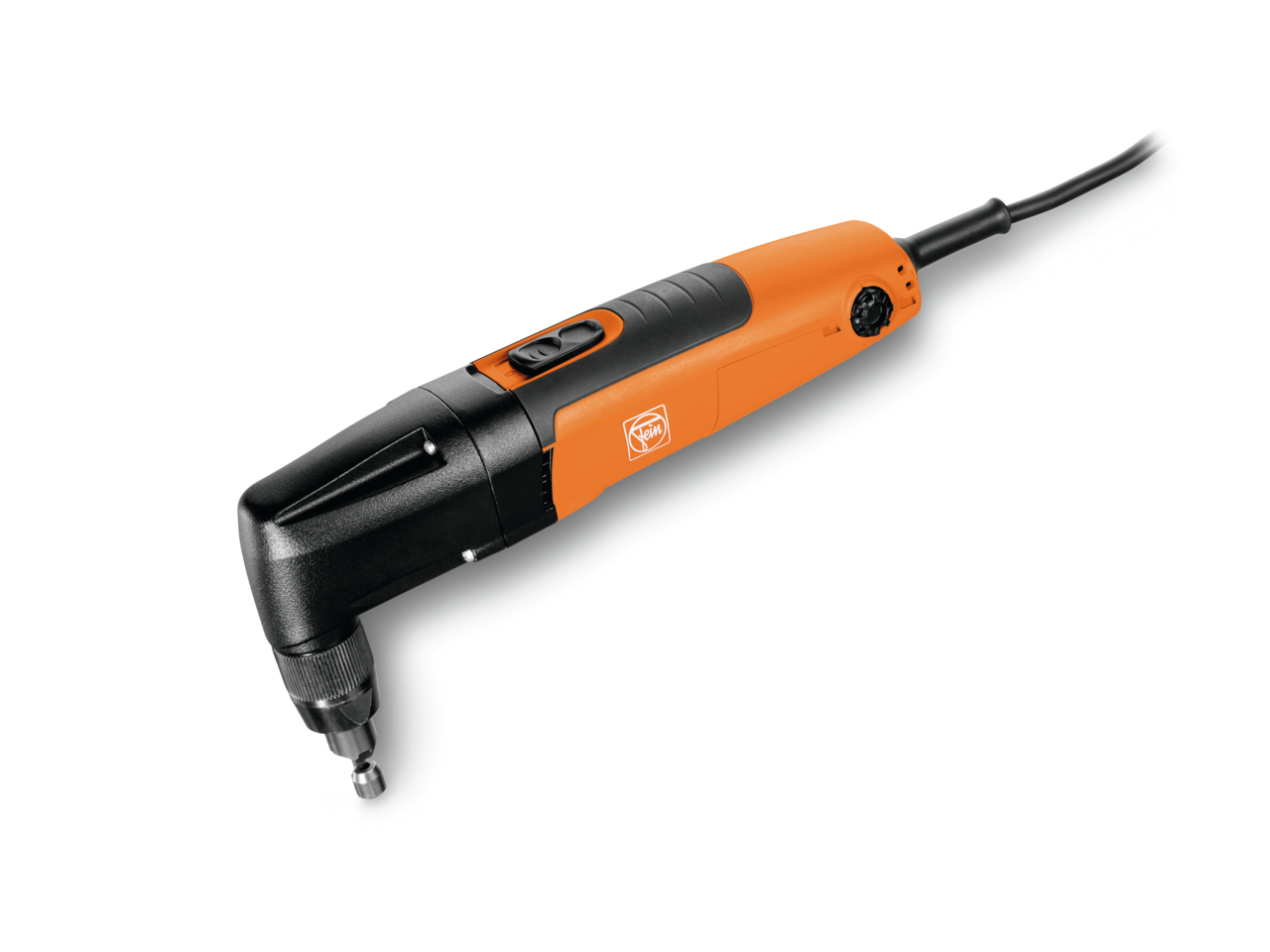

BLK 1.3 TE
Nibbler up to 18 gauge
BLK 1.3 TE
Nibbler up to 18 gauge
Compact and rapid nibbler for trapezoid sheet metals.
Product number: 7 232 41 60 12 0
Details
- Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
- 7.5 ft./min [2.3 m/min] cutting speed for excellent performance.
- Optimum ergonomics, including a motor housing that is up to 20% slimmer due to an extremely narrow drive head.
- Chip protection mesh on vent slots.
- Low operating costs due to long tool life of punch and die.
- Brief overlapping area up to 12 gauge [2.6 mm].
- Rotating punch for up to 30% longer service life.
- QuickIN rapid change system.
- Stainless steel up to 24 gauge [0.6 mm].
- Motor with outstanding performance and durability.
- 16 ft. [5 m] cable.
Technical data
Technical data
Power consumption
350 W
Power output
210 W
Strokes
1,000 - 1,800 spm
Cutting speed
7.5 [2.3] ft/min[m/min]
Steel 58,000 lbf/in²
0/1 [1.3] in[mm]
Steel 87,000 lbf/in²
1/32 [0.8] in[mm]
Steel 116,000 lbf/in²
0/1 [0.6] in[mm]
Non-ferrous metals up to 36,000 lbf/in²
3/32 [2] in[mm]
Cutting width
3/16 [4] in[mm]
Immersion Ø with die
3/4 [19] in[mm]
Radius of smallest curve (inside/outside)
1 [25] / 1-1/4 [30] in[mm]
Cable with plug
16.4 [5] ft[m]
Weight
3.97 [1.80] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
82 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
93 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
93 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
9,5 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 die for trapezoid sheet metal (30109170001), mounted
- 1 punch (6 36 02 050 00 0)

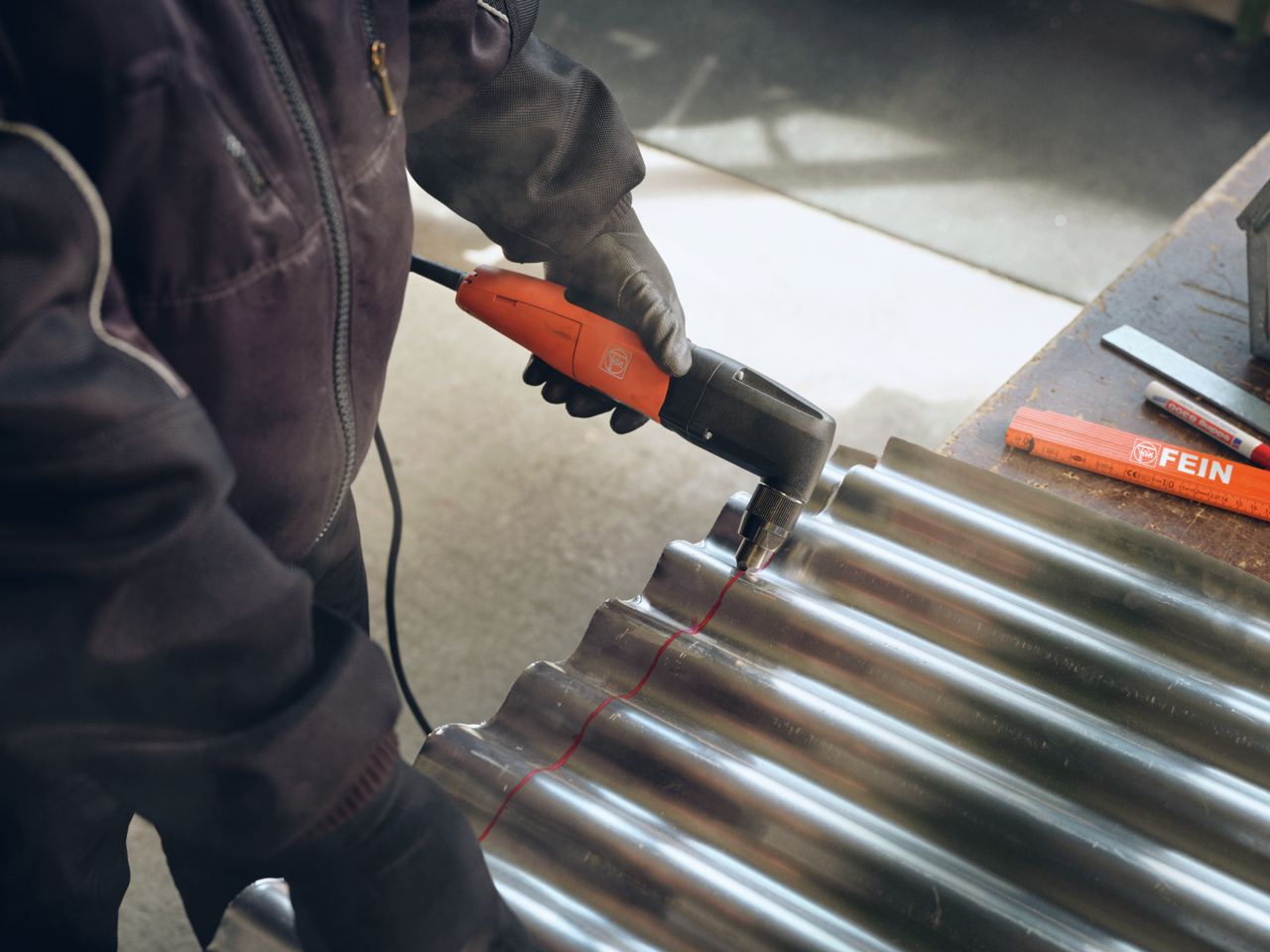

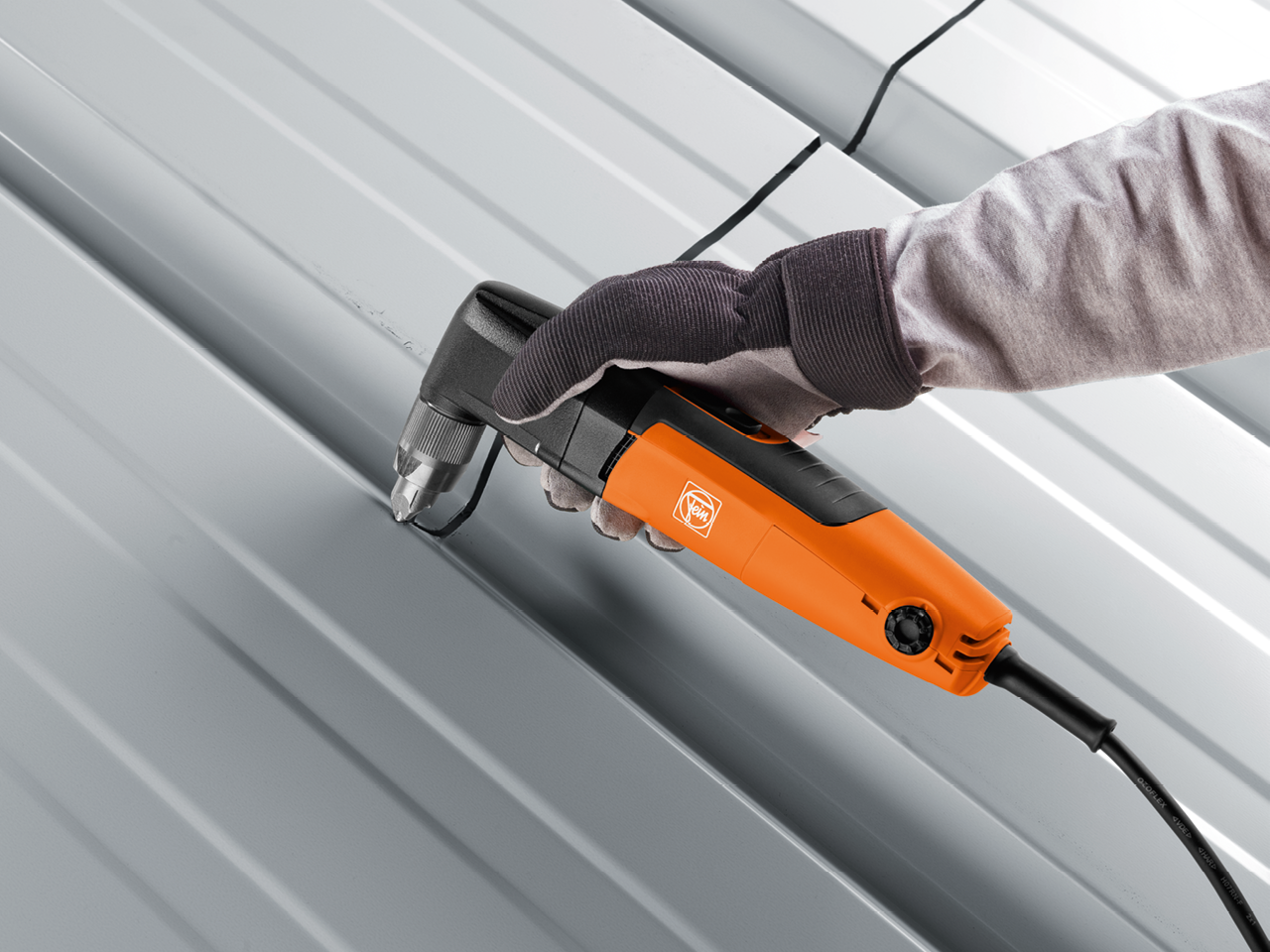

Application
Product feature
- Rotating round punch
- Cutting direction: 8x45°
- QuickIN
- Variable speed
