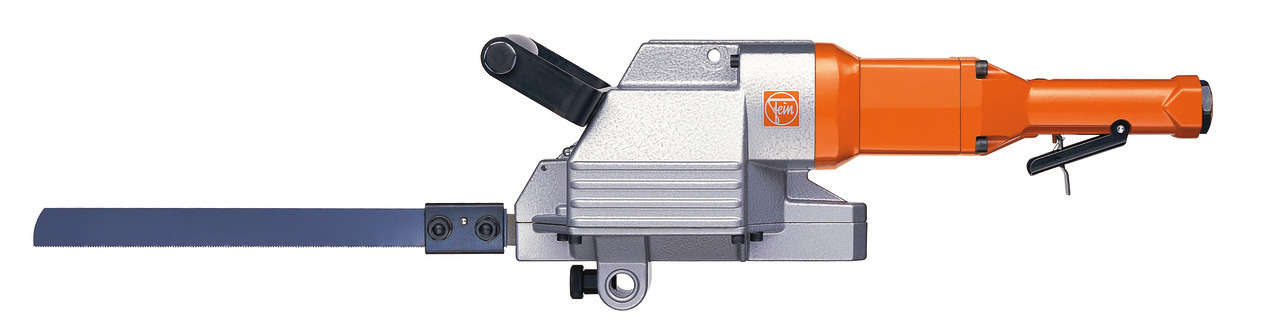

STS 325 R
Hacksaw for pipes up to Ø 24 in
STS 325 R
Hacksaw for pipes up to Ø 24 in
Pneumatic hacksaw for pipes and profiled sections.
Product number: 7 534 08 13 00 0
Details
- Ideally suited for cutting pipes and profiles made of steel, cast iron, autoclaved aerated concrete, and plastics.
- Clamp and feed device available for profiles and pipes from Ø 3-1/8 in [80 mm] to Ø 24 in [400 mm].
- Adjustable clamping devices permit mitre cuts up to 45° as well.
- Clamp and feed device available.
- Adjustable clamping fixtures.
- * Chain extension available.
Technical data
Operating pressure
87.0 [6] psi[bar]
Air consumption
51.2 [1.45] cfm[m³/min]
Power output
1,100 W
Strokes
330 spm
Stroke of blade
2-1/4 [60] in[mm]
Pipes up to Ø
17-1/4 [440] * in[mm]
Profiles up to W x H
11-1/2 [290] x 19-3/4 [500] in[mm]
Weight
15.87 [7.20] lbs[kg]
Downloads
Price includes
- 2 saw blades (type 063)
- 1 wrench set
- 1 additional handle
- 1 hose coupling
Product feature
- aus_druckluftantrieb
