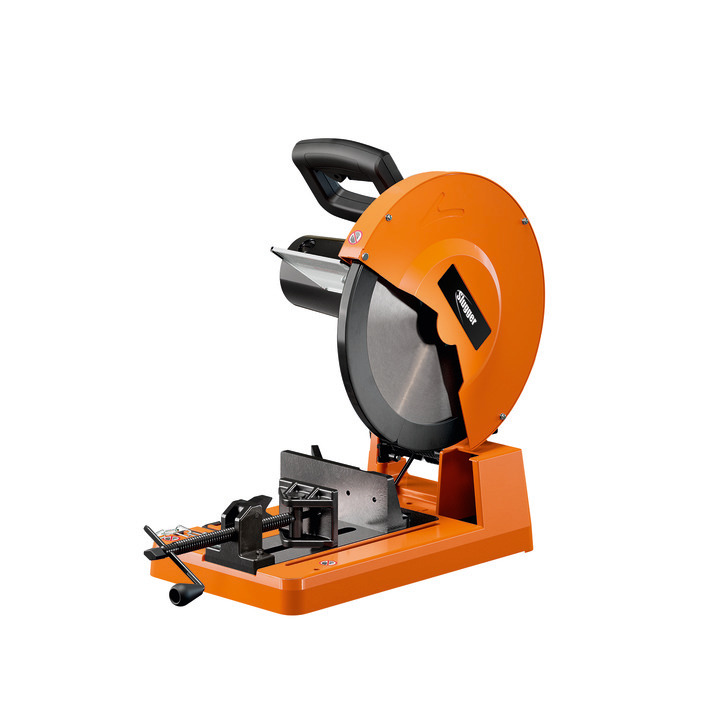

14 in Slugger Metal Cutting Saw
14 in Slugger Metal Cutting Saw
14 in Slugger Metal Cutting Saw
14 in Slugger Metal Cutting Saw
The Slugger 14 in Metal Saw is a high performance, durable solution for metal cutting.
Product number: 7 290 53 61 12 0
Details
- Low speed high torque motor
- High precision durable steel construction
- Cast aluminum base
- Quick release table/base clamp cuts 0° to 45°
- Smooth bevel and angle cutting adjustments
- Eye protection plate.
- Table/base clamp with quick release
- Depth stop.
- Well balanced handle design for better control
- Integrated chip collection
Technical data
Technical data
Current/Voltage
120 V
Power consumption
1,800 W
No load speed
1,300
Saw blade Ø
14 [355] in[mm]
Arbor
1 [25.4] in[mm]
Max. depth of cut, angular
4-3/4 [121] in[mm]
Max. depth of cut, round
5 [130] in[mm]
Weight
53.79 [24.4] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
95,3 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
106,3 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
110,9 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah = 2,7 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 blade
- 1 wrench
- 1 table vise
- 1 safety eyewear
- 1 ear protection
- 1 instruction manual
