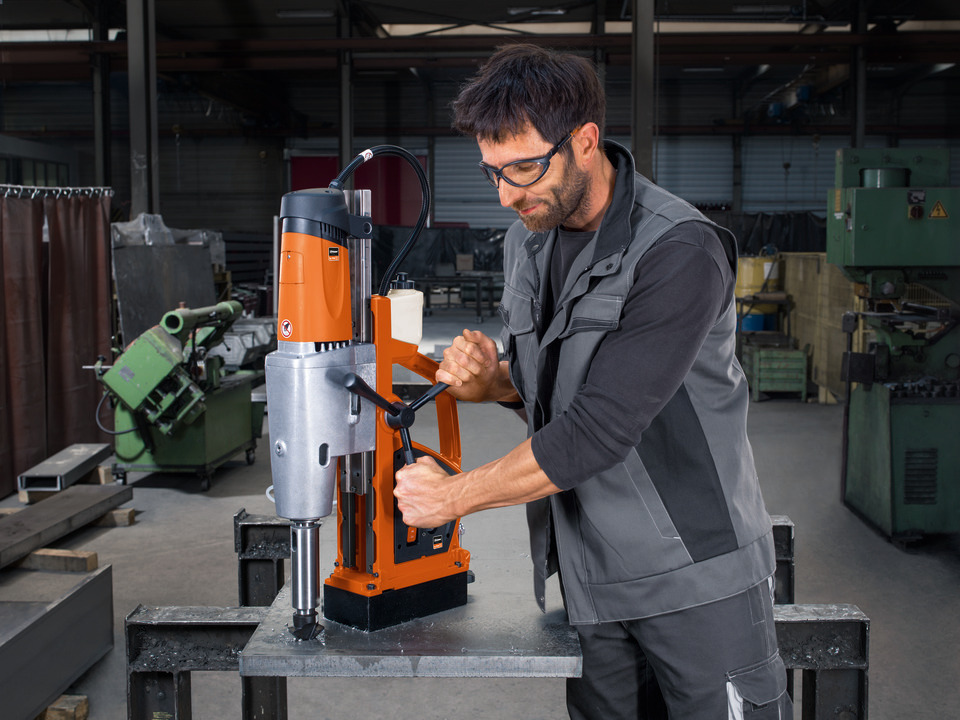

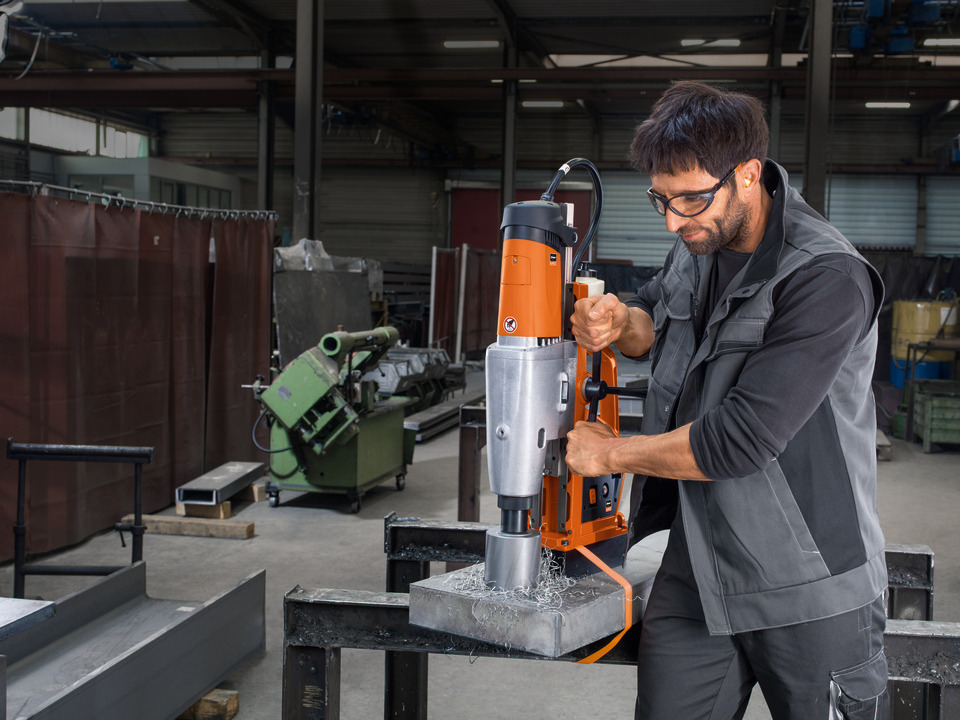

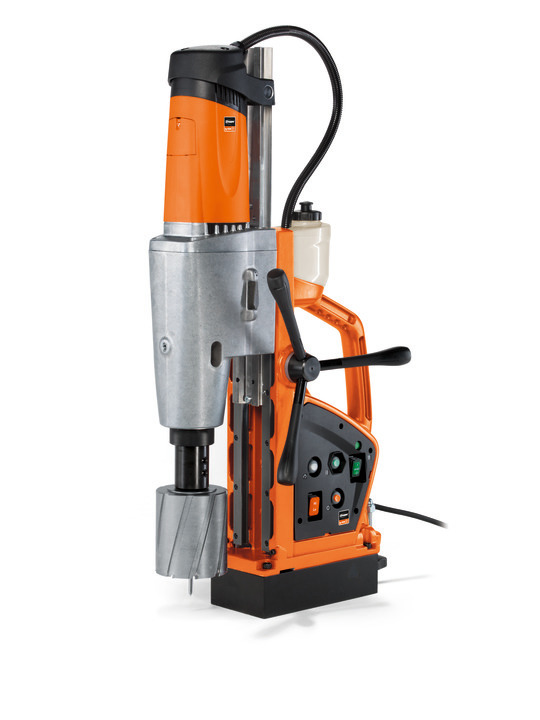

Universal magnetic core drill up to 4-5/16 [110] in[mm]

High-performance, long-stroke, 4-speed universal magnetic base drill with forward / reverse running, MT4 tool mounting and maximum functionality for heavy drilling work in the workshop.

Product number: 7 270 60 61 09 0

JMU 404 M

Add to Shopping Cart

Details

  • FEIN 1,700 W high-performance motor with high torque for heavy drilling work.
  • For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
  • Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
  • Mechanical 4-speed gearbox.
  • High magnetic holding force.
  • Torque arm for increased magnetic holding power.
  • Motion sensor.
  • Torque slip clutch.

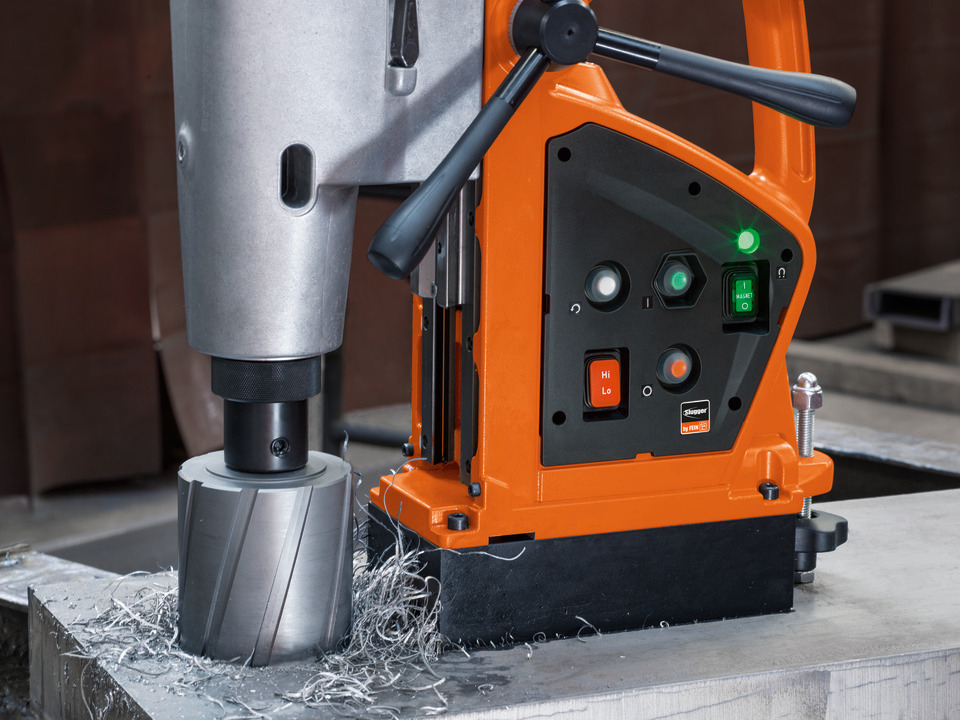

  • Convenient magnetic holding force display.
  • Electronic speed setting.
  • Reversible.
  • MT4 tool mounting.
  • Integrated coolant tank.
  • Personal safety switches.

Technical data

Technical data
Power consumption
1,700 W
Power output
850 W
Load speed: 1st gear
60 / 120 rpm
Load speed: 2nd gear
90 / 170 rpm
Load speed: 3rd gear
150 / 300 rpm
Load speed: 4th gear
230 / 430 rpm
No-load speed: 1st gear
100 / 190 rpm
No-load speed: 2nd gear
160 / 290 rpm
No-load speed: 3rd gear
270 / 500 rpm
No-load speed: 4th gear
420 / 750 rpm
Tool mount
MT 4
Carbide cutter max. dia.
4 [101] in[mm]
HSS cutter max. dia.
3 [75] in[mm]
Cutter max. drilling depth
4 [101] in[mm]
Twist drill max. dia.
1-3/8 [35] in[mm]
Tapping
1-7/16 in [M 36]
Max. countersinking dia.
2-3/8 [60] in[mm]
Reaming max. dia.
1-3/8 [35] in[mm]
Cutter holder
1-1/4 in Weldon
Stroke
11 [280] in[mm]
Total stroke range
15-3/4 [400] in[mm]
Magnetic holding force
5171 [23,000] lbs[N]
Magnetic base dimensions
9-7/16 [240] x 4-3/4 [120] in[mm]
Cable with plug
13.1 [4] ft[m]
Weight according to EPTA
85.98 [39.00] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
84,0 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
95,0 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
98,7 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
ah,D = 1,4 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 17,35 MB

Download Manual instruction (17,35 MB)

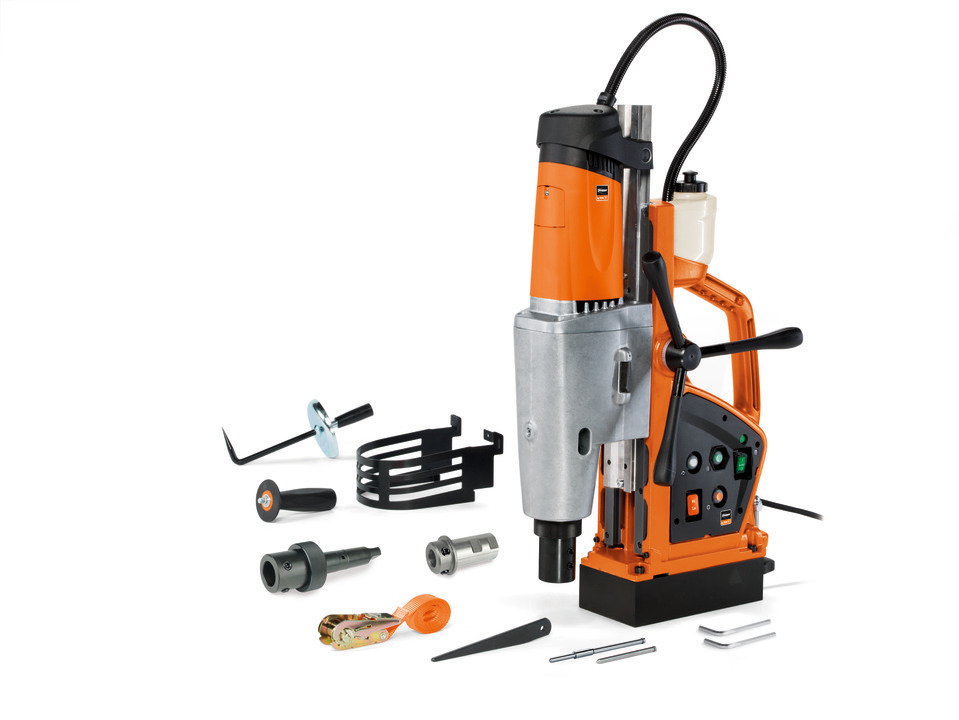

Price includes

  • 1 Weldon 32 mounting shaft
  • 1 adapter with Weldon 1-1/4 fitting and 3/4 output in Weldon
  • 1 coolant tank
  • 1 safety strap with ratchet
  • 1 chip hook
  • 2 pilot pins 6.35 mm dia. x 125 mm and 7.98 mm dia. x 184 mm
  • 1 chip guard
  • 1 drift
  • 2 hexagonal socket keys, 5 and 6 mm
  • 1 handle
  • 1 case

Application

Mag base drilling metal up to 1-3/8 in dia.
well suitable
Mag base drilling metal up to 2 in dia.
well suitable
Mag base drilling metal up to 2 ⁹⁄₁₆ in dia.
well suitable
Mag base drilling metal up to 4-5/16 [110] in[mm] dia.
well suitable
Twist drills with drill chuck
well suitable
Spiral drilling with MT fitting
well suitable
Tapping
well suitable
Countersinking
well suitable
Reaming
well suitable
Working one-handed
well suitable
Performing overhead work
suitable
Installation work
suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Magnet holding force gauge
  • Reversible
  • Electronic speed reduction
  • Torque slip clutch
  • Tip sensor
