Universal magnetic core drill up to 1-3/8 in [35 mm]

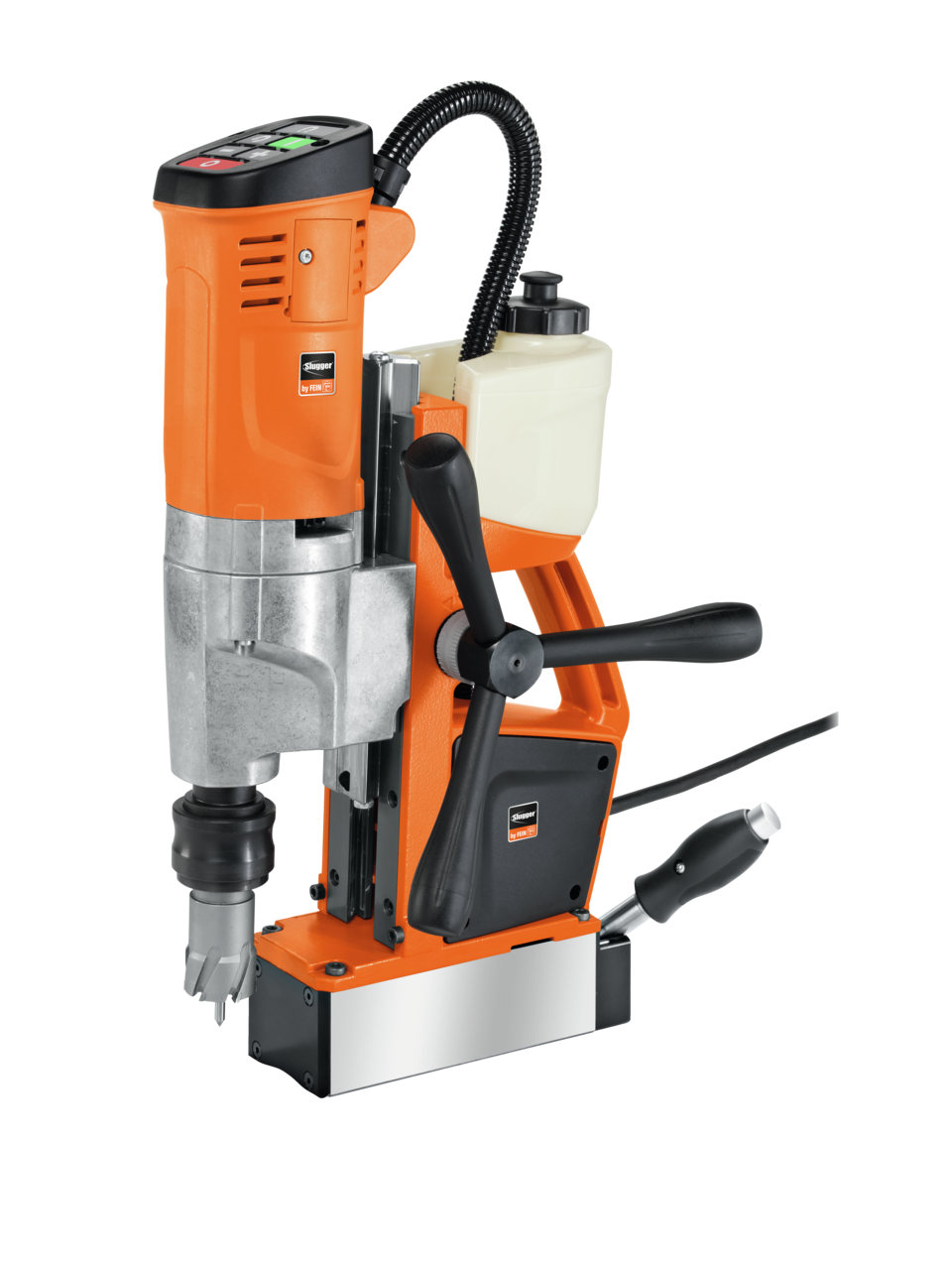

Small, long-stroke, 1-speed universal magnetic core drill with forward / reverse rotation, permanent magnet and maximum functionality for safe and versatile work on the construction site.

Product number: 7 270 73 61 09 0

JMU 137 PQW

Add to Shopping Cart

Details

  • Permanent magnet for extremely safe work at heights as well as a pivoting motor cable protection sleeve and high-quality workmanship for tough use.
  • Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
  • Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
  • Extra narrow permanent magnet with magnetic bias.
  • Motion sensor.
  • Simple and error-proof control concept in the operator's field of view.
  • Convenient magnetic holding force display.
  • Reversible.
  • Integrated coolant tank.
  • "Memory function" speed storage.
  • Hand feed wheel can be mounted on either side.

Technical data

Technical data
Power consumption
1,010 W
Power output
550 W
Full load speed
130 - 520 rpm
Carbide cutter max. dia.
1-3/8 [35] in[mm]
HSS cutter max. dia.
1-3/8 [35] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
5/8 [16] in[mm]
Tapping
9/16 in [M 14]
Max. countersinking dia.
1-1/4 [31] in[mm]
Reaming max. dia.
5/8 [16] in[mm]
Cutter holder
3/4 in straight shank
Cutter change
tool-free
Stroke
5-5/16 [135] in[mm]
Total stroke range
10-1/4 [260] in[mm]
Magnetic holding force
2023 [9,000] lbs[N]
Magnetic base dimensions
7-11/16 [195] x 2-3/4 [70] in[mm]
Cable with plug
13.1 [4] ft[m]
Weight according to EPTA
27.56 [12.50] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
86,7 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
97,7 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
101,2 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
<2,5 m/s²
Vibration value 2 αhv 3-way
1,5 m/s²

Downloads

Manual instruction

PDF 15,69 MB

Download Manual instruction (15,69 MB)

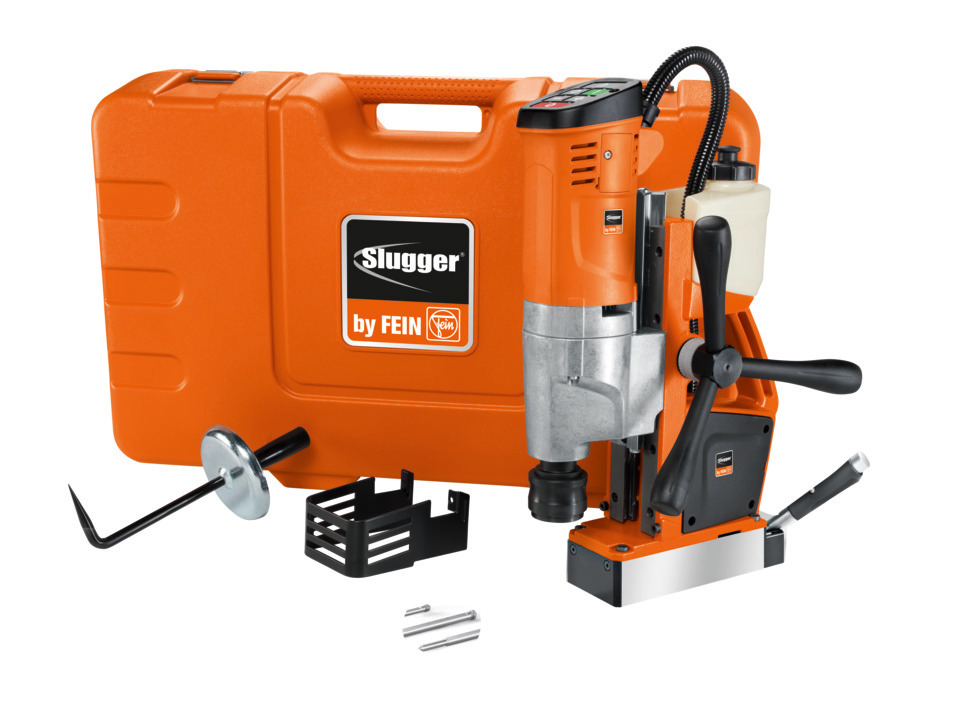

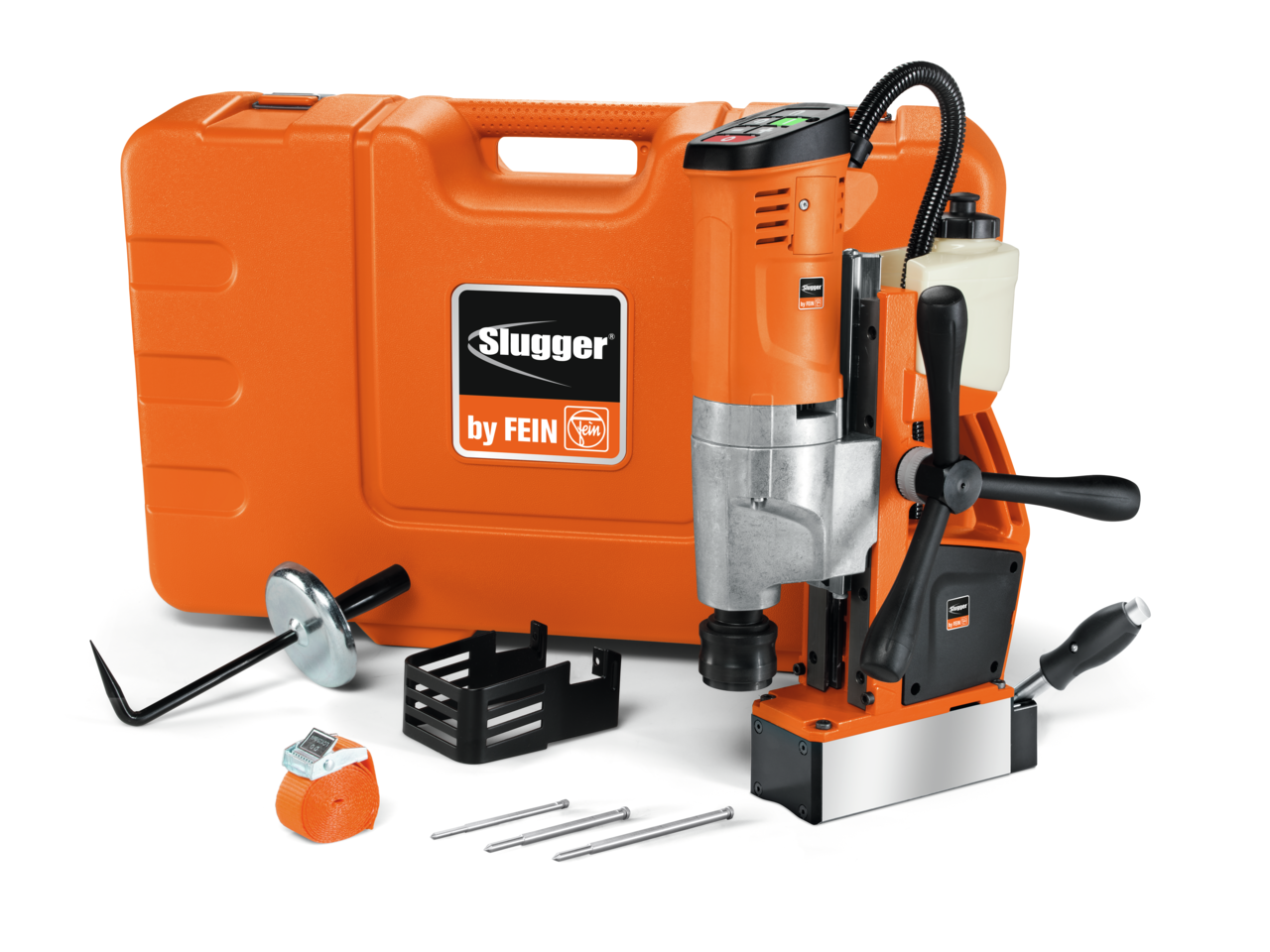

Price includes

  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 3 pilot pins
  • 1 chip guard
  • 1 case

Application

Mag base drilling metal up to 1-3/8 in dia.
well suitable
Twist drills with drill chuck
suitable
Tapping
well suitable
Countersinking
well suitable
Reaming
well suitable
Working one-handed
well suitable
Performing overhead work
well suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Magnet holding force gauge
  • Reversible
  • Electronic speed reduction
  • Memory function
  • Speed-controlled tacho electronics
  • Tip sensor
