JMU 137 MQW Structural Steel HSS Cutter Set 2'' 3/4'' Weldon
Universal magnetic base drill up to 1-3/8'' [35 mm] with accessory set
JMU 137 MQW Structural Steel HSS Cutter Set 2'' 3/4'' Weldon
Universal magnetic base drill up to 1-3/8'' [35 mm] with accessory set

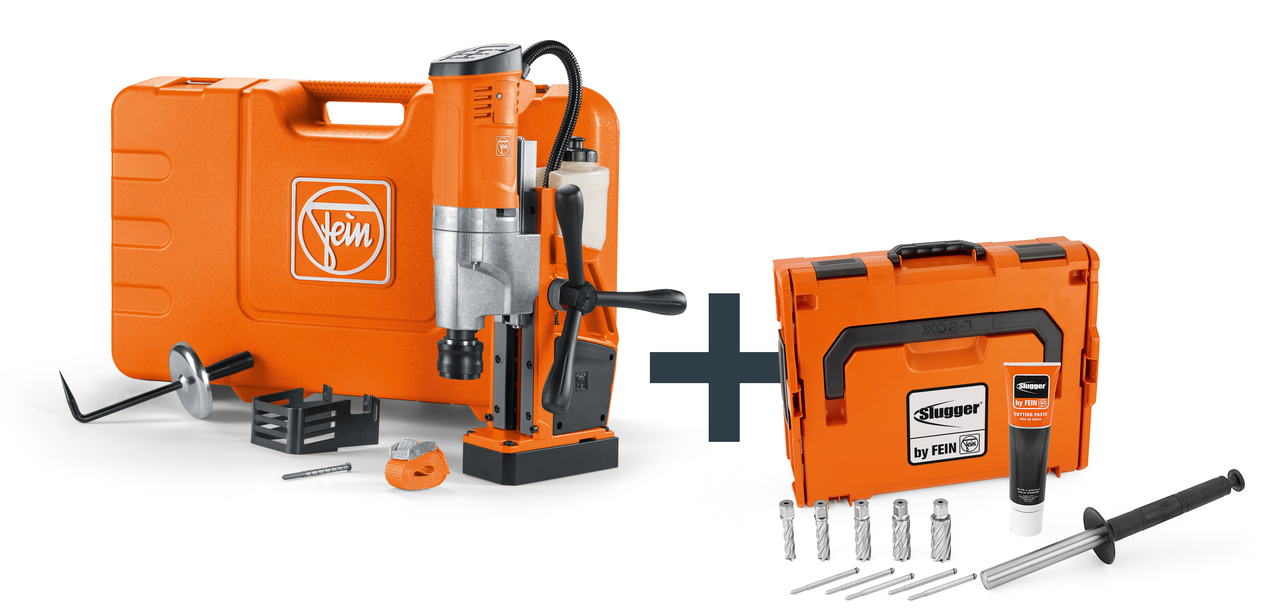

The versatile JMU 137 MQW combined with HSS 2 in cutters and mag drill accessories. Perfect for general steel fabrication and bridge construction.
Product number: 7 270 56 62 09 0
Details
- Magnetic base drill JMU 137 MQW:
- Slugger by FEIN Universal performance class: our most versatile drills for core drilling, twist drilling, tapping, counter sinking and reaming.
- Lightweight design and 1100 W high-performance motor results in impressive power-to-weight ratio.
- 1-3/8" x 2" capacity.
- Annular cutter HSS 2 in: Extremely shock and impact resistant, it is made for rough use in steel construction and assembly. Thanks to tough cutting edges and excellent HSS steel with a hardness of 64 HRC, the cutter also impresses with maximum service life.
- Magbrush: Safely remove metal chips and debris from machinery and work areas using FEIN's magnetic brushes. The Magbrush’s slide action lever quickly demagnetizes the tool, which releases chips for disposal.
- Slugger cutting paste: FEIN's Cutting Paste, used with Slugger cutters, is water-based designed to extend tool life, improve surface finish and reduce heat build-up when drilling.
- Comes with molded plastic carrying case.
Technical data
Technical data
Power consumption
1,100 W
Power output
550 W
Full load speed
130 - 520
Carbide cutter max. dia.
1-3/8 [35] in[mm]
HSS cutter max. dia.
1-3/8 [35] in[mm]
Cutter max. drilling depth
2 [50] (3 [75] ){1056} in[mm]
Twist drill max. dia.
3/4 [18] in[mm]
Cutter holder
3/4" straight shank
Stroke
5-5/16 [135] in[mm]
Magnetic holding force
2248 [10,000] lbs[N]
Cable with plug
13.1 [4] ft[m]
Weight
23.59 [10.70] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
82,3 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
93,3 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
95,9 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
αh,D <2,5 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 magnetic base drill
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 3 centering pins dia. 1/4 x 4 [6.35 x 100] in[mm]
- 1 centering pin dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
- 1 centering pin dia. 3/16 x 3-1/8 [4.75 x 80] in[mm]
- 1 chip guard
- 1 drift
- 1 tool case
- 1 each HSS NOVA 50 annular cutter 50 mm cutting depth (12 / 14 / 16 / 18 / 20 / 22 mm dia.)
- 1 Magbrush
- 1 Jancy Cutting Paste
- 1 L-BOXX 136 for accessories
