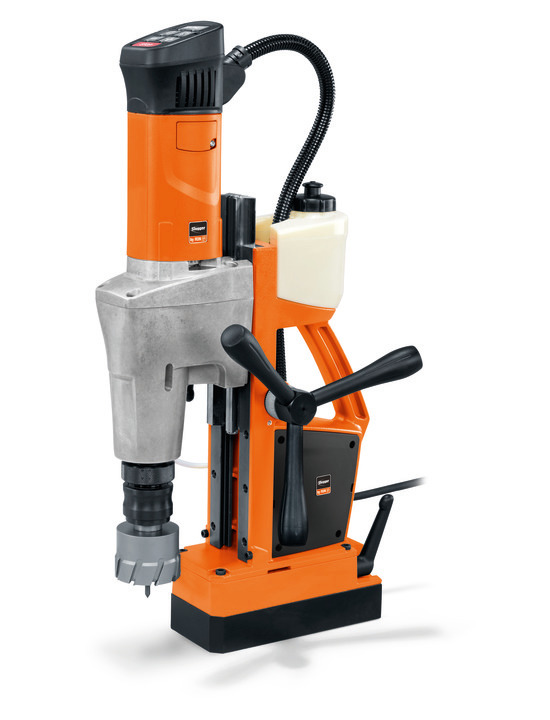

JCM 256 U

Mag Drill unit up to 2-1/2 [65] in[mm]


JCM 256 U
Mag Drill unit up to 2-1/2 [65] in[mm]

High-performance with 2-speed gearbox and outstanding functionality for universal and efficient use in the workshop.

Product number: 7 270 47 61 12 0

JCM 256 U

Add to Shopping Cart

Details

  • Stable speed, even in the toughest applications.
  • Fine drill spindle adjustment for convenient machine alignment.
  • Double drill motor guides enable use of the longest annular cutters.
  • Reversible
  • Electronic speed control.
  • MT3 interface.
  • High magnetic holding force.
  • A Convenient magnetic holding force indicator supports the safe positioning of the tool.
  • Integrated coolant tank ensures high core drill tool life.

Technical data

Technical data
Power consumption
1,300 W
Power output
730 W
Load speed: 1st gear
120 - 240
Load speed: 2nd gear
260 - 520
Tool mount
MT 3
Carbide cutter max. dia.
2-1/2 [65] in[mm]
HSS cutter max. dia.
1-3/4 [45] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
1 [25] in[mm]
Tapping
M 20
Max. countersinking dia.
2 [50] in[mm]
Reaming max. dia.
1 [25] in[mm]
Cutter holder
3/4" straight shank
Cutter change
tool-free
Stroke
5-11/16 [145] in[mm]
Total stroke range
12-3/8 [315] in[mm]
Drill stand adjustment range
1/4 [6] in[mm]
Drill stand angular adjustment
Cable with plug
13.1 [4] ft[m]
Weight
35.05 [15.90] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
81,6 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
92,6 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
95,2 dB
Measurement uncertainty of the measured value KpCpeak
5 dB

Downloads

Manual instruction

PDF 20,32 MB

Download Manual instruction (20,32 MB)

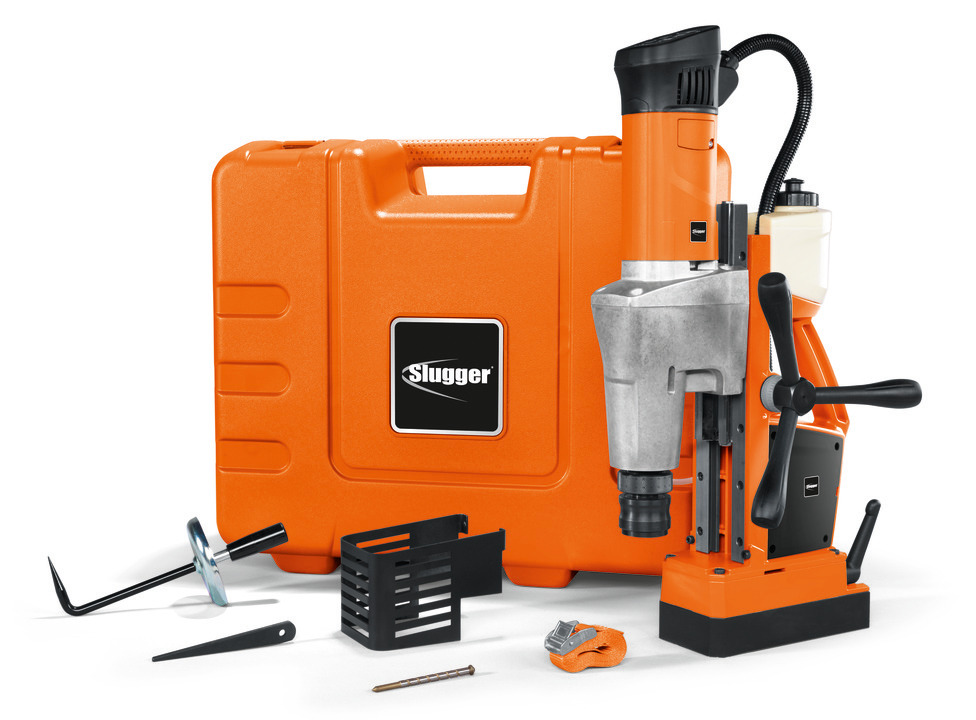

Price includes

  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 1 pilot pin 4 1/8 in (105 mm)
  • 1 chip guard
  • 1 drift
  • 1 case

Application

Mag base drilling metal up to 1-1/2" dia.
well suitable
Mag base drilling metal up to 2 in dia.
well suitable
Mag base drilling metal up to 2 ⁹⁄₁₆ in dia.
well suitable
Twist drilling with drill chuck
suitable
Twist drilling with MT fitting
well suitable
Tapping
well suitable
Countersinking
well suitable
Reaming
well suitable
Performing overhead work
suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Magnet monitor system
  • Magnet holding force display
  • Forward/reverse operation
  • Electronic speed setting
  • Memory function
  • Speed-controlled tacho electronics
