JCM 200 U

Mag Drill unit up to 2 [50] in[mm]


JCM 200 U
Mag Drill unit up to 2 [50] in[mm]

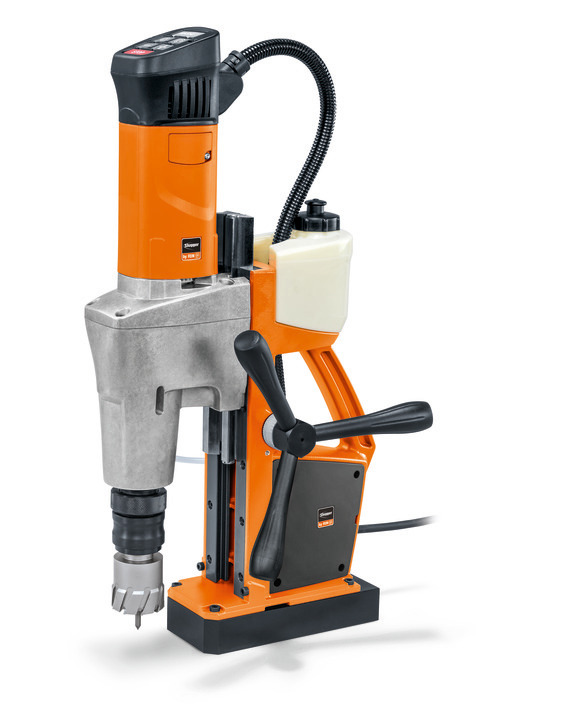

Universal with 2-speed gearbox and outstanding functionality for flexible operation in the workshop and on the construction site.

Product number: 7 270 44 61 12 0

JCM 200 U

Add to Shopping Cart

Details

  • Compact with high functionality for universal use on the construction site and in the workshop.
  • Simple and error-proof control concept in the operator's field of view.
  • Double drill motor guides enable use of the longest annular cutters.
  • Reversible
  • Electronic speed control.
  • High-power motor with stable speed.
  • High magnetic holding force.
  • A Convenient magnetic holding force indicator supports the safe positioning of the tool.
  • Integrated coolant tank ensures high core drill tool life.
  • Hand feed wheel can be mounted on either side.
  • MT3 interface.

Technical data

Technical data
Power consumption
1,200 W
Power output
610 W
Load speed: 1st gear
130 - 260 rpm
Load speed: 2nd gear
260 - 520 rpm
Tool mount
MT 3
Carbide cutter max. dia.
2 [50] in[mm]
HSS cutter max. dia.
1-9/16 [40] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
7/8 [23] in[mm]
Tapping
M 16
Max. countersinking dia.
2 [50] in[mm]
Reaming max. dia.
7/8 [23] in[mm]
Cutter holder
3/4" straight shank
Cutter change
tool-free
Stroke
5-11/16 [145] in[mm]
Total stroke range
12-3/8 [315] in[mm]
Cable with plug
13 [4] ft[m]
Vibration and sound emission values
Sound pressure level LpA
82,1 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
93,1 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
96,2 dB
Measurement uncertainty of the measured value KpCpeak
5 dB

Downloads

Manual instruction

PDF 20,32 MB

Download Manual instruction (20,32 MB)

Price includes

  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 1 pilot pin 4 1/8 in (105 mm)
  • 1 chip guard
  • 1 drift
  • 1 case

Application

Mag base drilling metal up to 1-1/2" dia.
well suitable
Mag base drilling metal up to 2 in dia.
well suitable
Twist drilling with drill chuck
suitable
Twist drilling with MT fitting
well suitable
Tapping
well suitable
Countersinking
well suitable
Reaming
well suitable
Performing overhead work
suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Magnet monitor system
  • Magnet holding force display
  • Forward/reverse operation
  • Electronic speed setting
  • Memory function
  • Speed-controlled tacho electronics
