JME USA 202 M

Endurance magnetic core drill up to 2 [50] in[mm]

New
JME USA 202 M
JME USA 202 M
JME USA 202 M
JME USA 202 M

JME USA 202 M

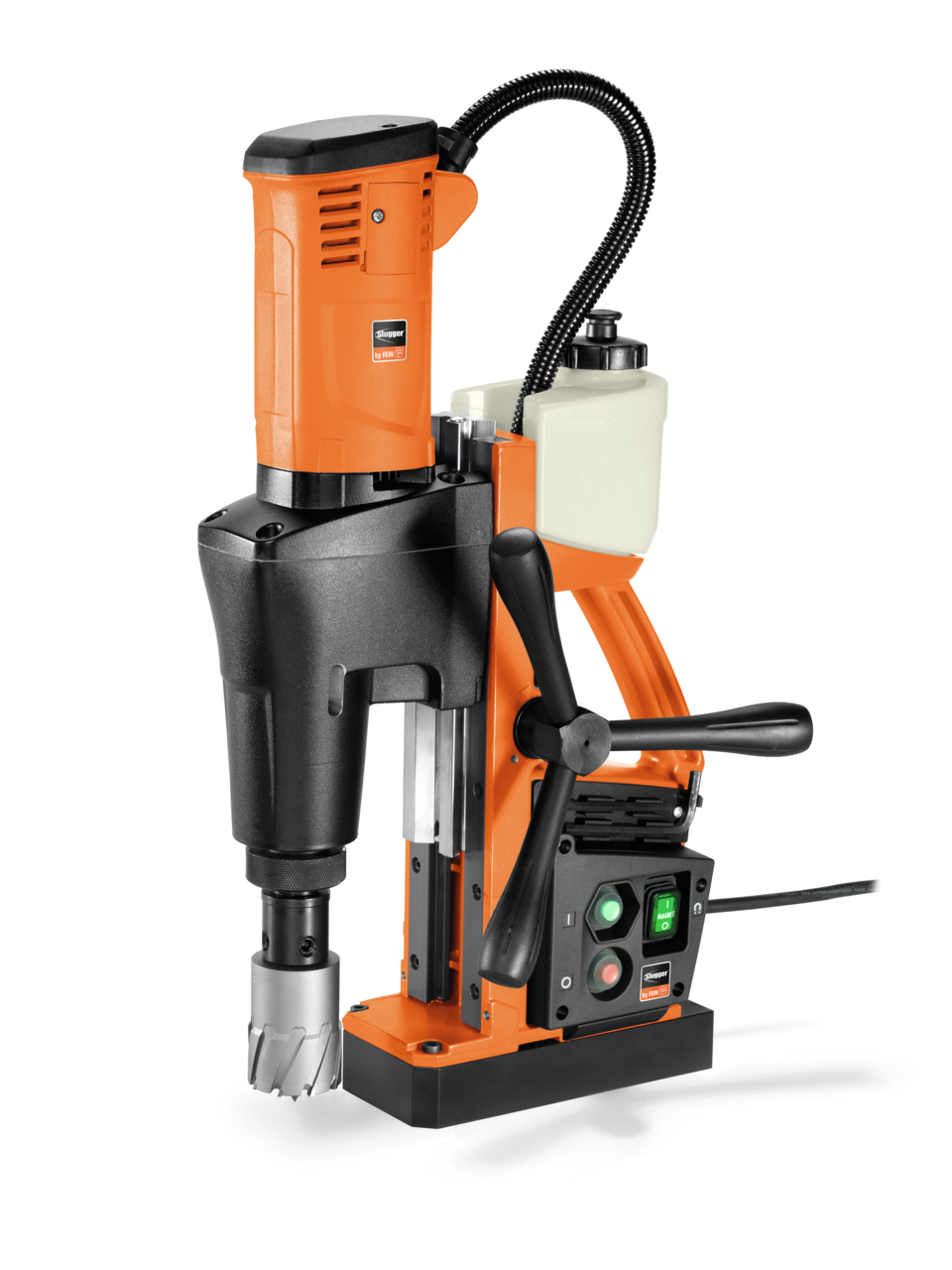

Endurance magnetic core drill up to 2 [50] in[mm]

Lightweight and powerful 2-speed Endurance magnetic base drill with MK3 tool mounting and basic functionality for core drilling and twist drilling in the workshop and at the construction site.

Product number: 7 270 69 61 09 0

JME USA 202 M

Add to Shopping Cart

Details

  • For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
  • Slugger by FEIN high-performance motor with high torque for use with carbide and HSS core drills and extra-large stroke range for twist drilling.
  • Uncompromising service life and work progress for an excellent price/performance ratio.
  • Mechanical 2-speed gearbox.
  • Higher RPM for optimal use with carbide cutters.
  • MT3 tool mounting.
  • High magnetic holding force.
  • Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.
  • Optimum power-to-weight ratio.
  • Integrated coolant tank.
  • Hand feed wheel can be mounted either side.
  • Integrated hexagon socket holder.
  • * optional using accessory.

Technical data

Power consumption
1,280 W
Power output
616 W
Full load speed
260 / 520 rpm
No load speed
350 / 680 rpm
Tool mount
MT 3
Carbide cutter max. dia.
2 [50] in[mm]
HSS cutter max. dia.
2 [50] in[mm]
Cutter max. drilling depth
2 [50] (3 [75] *) in[mm]
Twist drill max. dia.
7/8 [23] in[mm]
Cutter holder
3/4 in straight shank
Stroke
5-5/16 [135] in[mm]
Total stroke range
10-1/4 [260] in[mm]
Magnetic holding force
2810 [12,500] lbs[N]
Magnetic base dimensions
7-11/16 [195] x 3-9/16 [90] in[mm]
Cable with plug
9.8 [3] ft[m]
Weight according to EPTA
30.86 [14.00] lbs[kg]

Downloads

Manual instruction

PDF 34,19 MB

Download Manual instruction (34,19 MB)

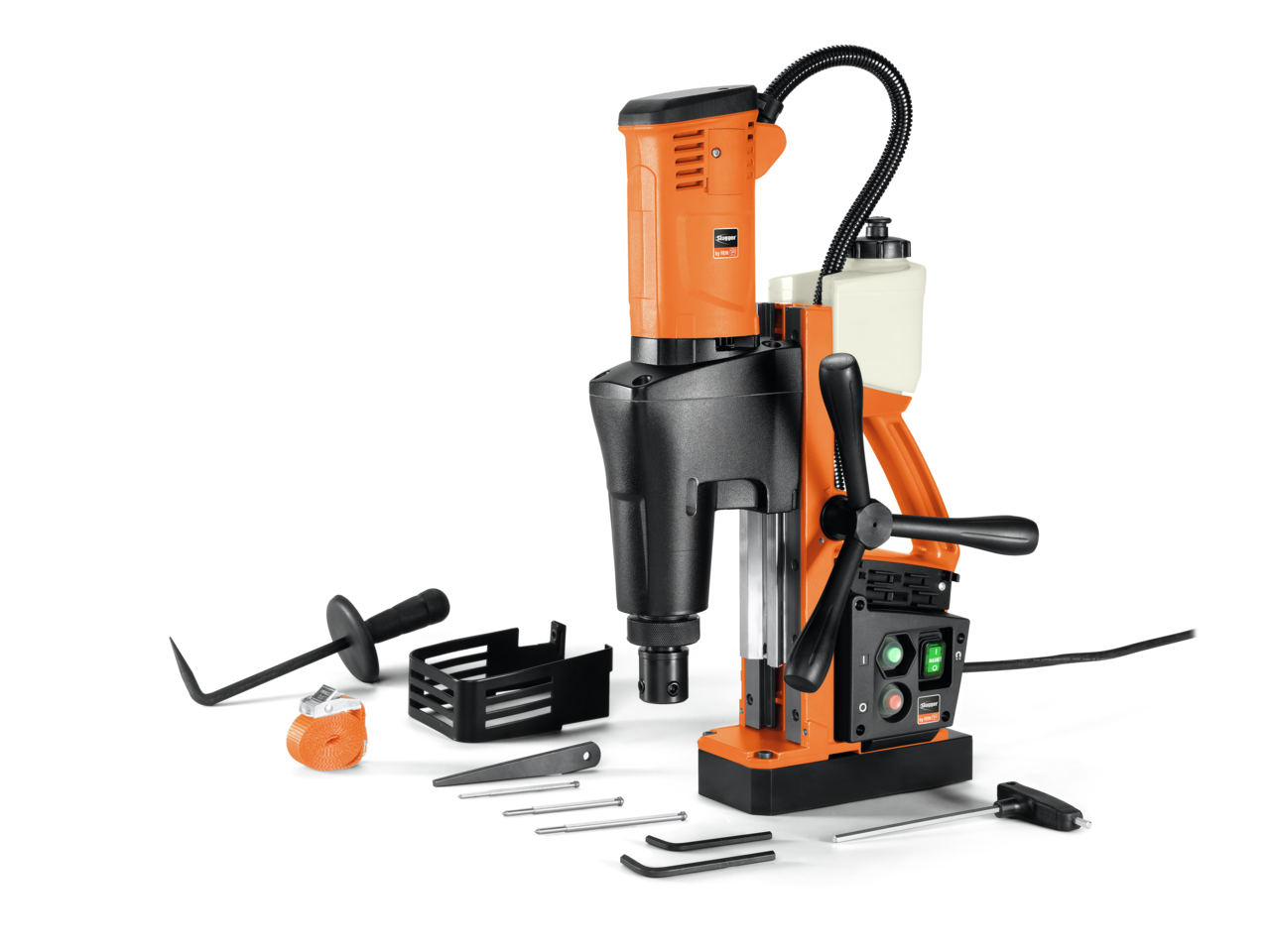

Price includes

  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 1 centering pin dia. 1/4 x 4 [6.35 x 100] in[mm]
  • 1 centering pin dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
  • 1 centering pin dia. 3/16 x 3-1/8 [4.75 x 80] in[mm]
  • 1 chip guard
  • 2 hexagonal socket keys, 5 and 6 mm
  • 1 hexagonal socket keys with T-grip, 5 mm
  • 1 drift
  • 1 case

Application

Mag base drilling metal up to 1-3/8 in dia.
well suitable
Mag base drilling metal up to 2 in dia.
well suitable
Twist drills with drill chuck
well suitable
Spiral drilling with MT fitting
well suitable
Countersinking
suitable
Working one-handed
well suitable
Performing overhead work
suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Hand feed wheel can be mounted on either side
