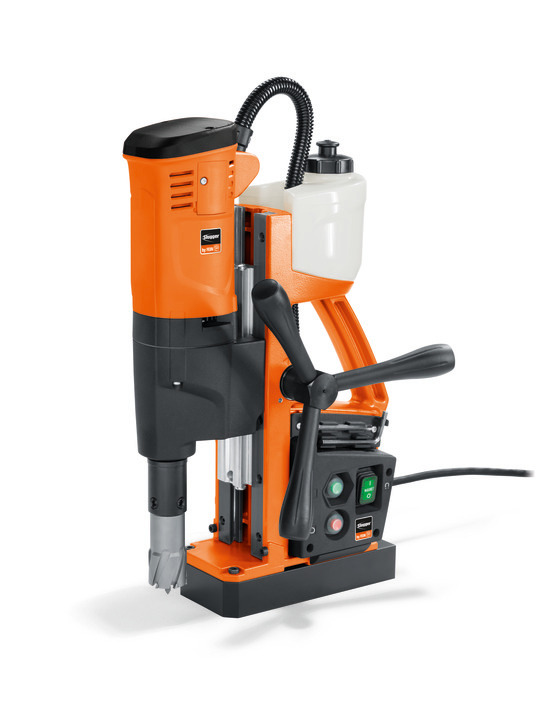

JME Holemaker III

Endurance magnetic base drill up to 1-3/8 in [35 mm]


JME Holemaker III

Endurance magnetic base drill up to 1-3/8 in [35 mm]

The optimal drilling solution with high powered German motor designed for use with Carbide and HSS cutters for toughest jobs and applications.

Product number: 7 270 59 61 09 0

JME Holemaker III

Add to Shopping Cart

Details

  • Extemely wear resistant concept with durable newly designed polyurthane motorhousing for use in industry and manual trades.
  • Extemely lightweight drill yet powerful enough for heaviest drilling applications.
  • Cost effective drill for running with Carbide cutters which offer longer life, higher cutting rate and capable of cutting harder materials. Also running with standard HSS cutters with great results.
  • Optimum power-to-weight ratio.
  • Integrated coolant tank.
  • Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.
  • Pivoting motor cable.
  • Higher RPM for optimal use with carbide cutters.
  • Hand feed wheel can be mounted either side.
  • Integrated hexagon socket holder.

Technical data

Power consumption
1,100 W
Power output
510 W
Full load speed
450 rpm
No load speed
590 rpm
Carbide cutter max. dia.
1-3/8 [35] in[mm]
HSS cutter max. dia.
1-3/8 [35] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
5/8 [16] in[mm]
Cutter holder
3/4 in straight shank
Stroke
5-11/16 [145] in[mm]
Total stroke range
10-1/4 [260] in[mm]
Magnetic holding force
2810 [12,500] lbs[N]
Magnetic base dimensions
7-11/16 [195] x 3-9/16 [90] in[mm]
Cable with plug
8.9 [2.7] ft[m]
Weight according to EPTA
25.79 [11.70] lbs[kg]

Downloads

Manual instruction

PDF 34,19 MB

Download Manual instruction (34,19 MB)

Price includes

  • 1 coolant tank
  • 1 safety strap
  • 2 pilot pins
  • 1 chip guard
  • 2 hexagonal socket keys, 5 and 6 mm
  • 1 hexagonal socket keys with T-grip, 5 mm
  • 1 case

Application

Mag base drilling metal up to 1-3/8 in dia.
well suitable
Twist drills with drill chuck
well suitable
Working one-handed
well suitable
Performing overhead work
well suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable
