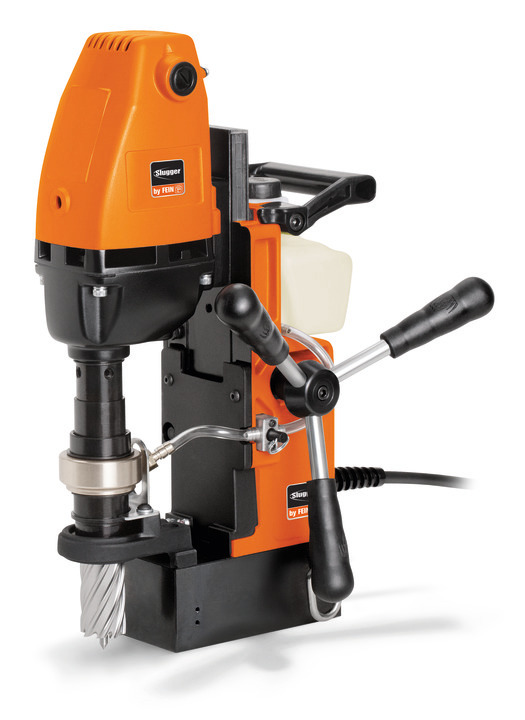

JHM USA 101

Endurance magnetic base drill up to 1-1/2 in [38 mm]


JHM USA 101
Endurance magnetic base drill up to 1-1/2 in [38 mm]

For dimensionally-accurate drilling on the construction site.

Product number: 7 272 52 61 12 4

JHM USA 101

Add to Shopping Cart

Details

  • Uniform-torque motor for demanding core drilling.
  • High concentricity and positive slug ejection due to special bore spindle guides.
  • Solid, massive construction in die-cast aluminum for work under difficult conditions.
  • Integrated coolant tank ensures high core drill tool life.
  • Internal motor cable routing.
  • Accessory handle for easy carrying of tool.
  • Hand feed wheel can be mounted on either side.
  • Smart magnet circuitry will not allow motor to start without sufficient magnetic force.

Technical data

Power consumption
1,050 W
Power output
530 W
Full load speed
330
No load speed
480
HSS cutter max. dia.
1-1/2 [38] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
1/2 [12] in[mm]
Cutter holder
3/4" straight shank
Stroke
2-9/16 [65] in[mm]
Magnetic holding force
2023 [9,000] lbs[N]
Cable with plug
12.5 [3.8] ft[m]
Weight
31.75 [14.40] lbs[kg]

Downloads

Manual instruction

PDF 9,07 MB

Download Manual instruction (9,07 MB)

Price includes

  • 1 case
  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 4 pilot pins
  • 1 allen key 5 mm
  • 1 chip guard
  • 1 carrying handle

Application

Use of HSS cutters
well suitable
Carbide-tipped cutter use
suitable
Mag base drilling metal up to 1-1/2" dia.
well suitable
Twist drilling with drill chuck
suitable
Performing overhead work
well suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Hand feed wheel can be mounted on either side
