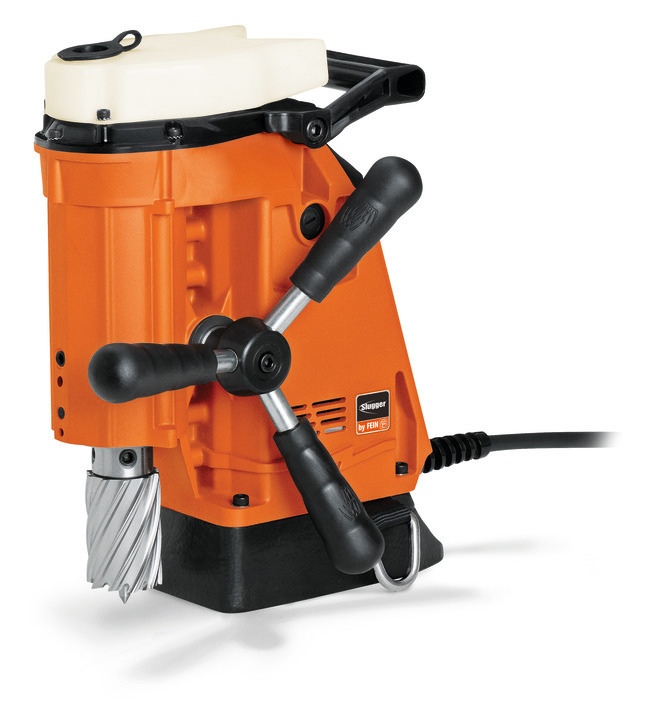

JHM Magforce

Mag Drill unit up to 1-5/8 [40] in[mm]


JHM Magforce

Mag Drill unit up to 1-5/8 [40] in[mm]

Compact with fixed drill motor for work in confined spaces.

Product number: 7 272 53 61 12 7

JHM Magforce

Add to Shopping Cart

Details

  • Extremely compact with ideal power to weight ratio for work at heights and in confined spaces.
  • Hand feed wheel mounts on either side for use in special situations.
  • Internal motor cable routing prevents unintended threading or hanging up on the workpiece.
  • Internal cooling.
  • Solid die-cast aluminum construction.
  • Stationary drill motor.
  • Quill feed spindle eliminates field maintenance and adjustments and provides positive (mechanical) slug ejection.

Technical data

Power consumption
1,100 W
Power output
610 W
Full load speed
280 rpm
No load speed
450 rpm
HSS cutter max. dia.
1-5/8 [40] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Cutter holder
3/4 in straight shank
Stroke
2-9/16 [65] in[mm]
Magnetic holding force
2023 [9,000] lbs[N]

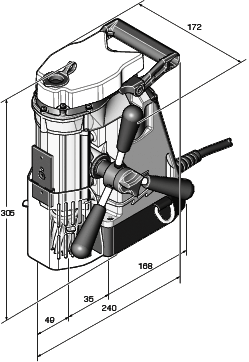

Magnetic base dimensions
6 [152] x 4 [102] in[mm]
Cable with plug
12.5 [3.8] ft[m]
Weight according to EPTA
28.88 [13.10] lbs[kg]

Downloads

Manual instruction

PDF 3,61 MB

Download Manual instruction (3,61 MB)

Price includes

  • 1 case
  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 4 pilot pins
  • 1 allen key 5 mm
  • 1 chip guard

Application

Use of HSS cutters
well suitable
Carbide-tipped cutter use
suitable
Mag base drilling metal up to 1-3/8 in dia.
well suitable
Mag base drilling metal up to 1-9/16 in dia.
well suitable
Working one-handed
well suitable

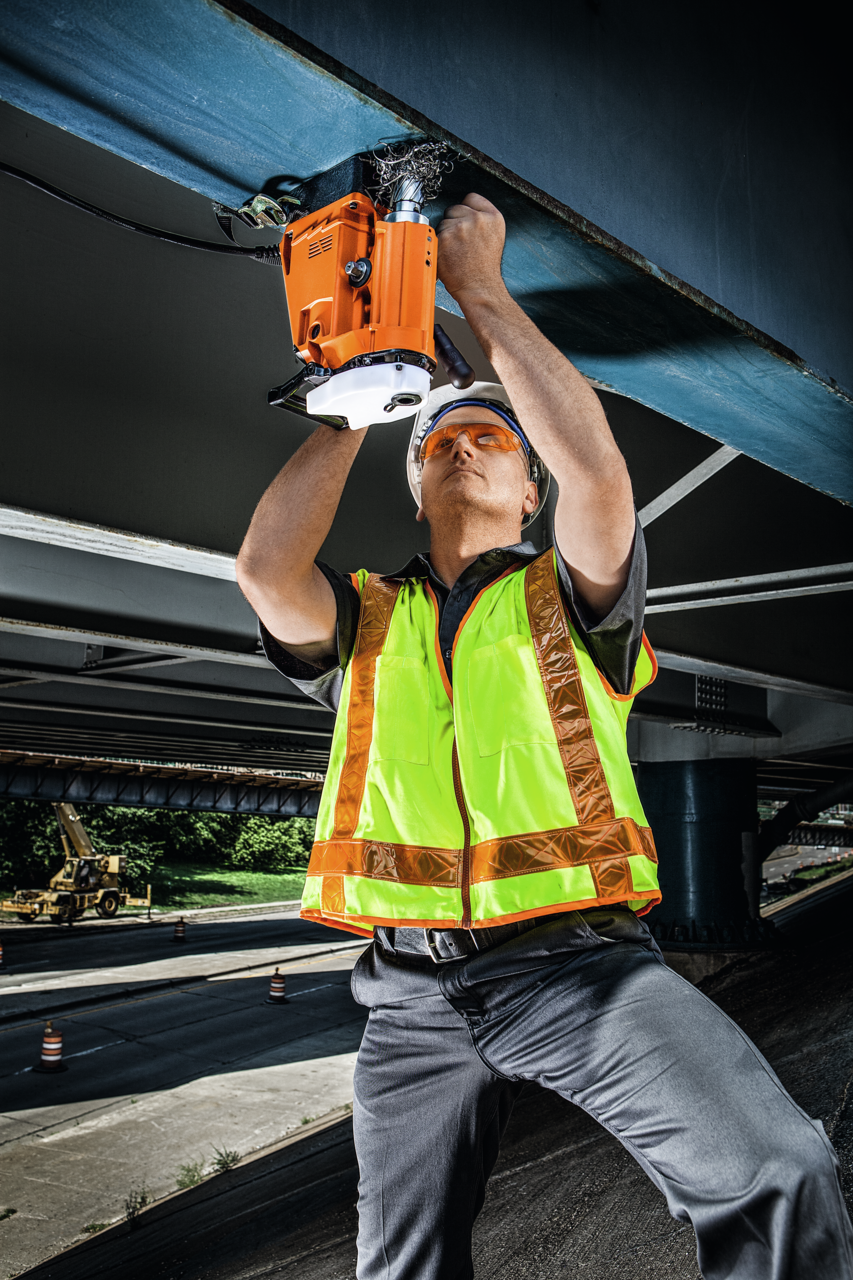

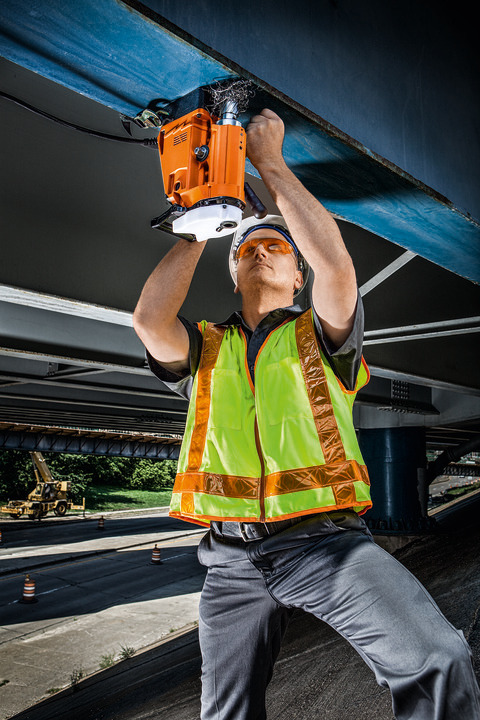

Performing overhead work
well suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable
