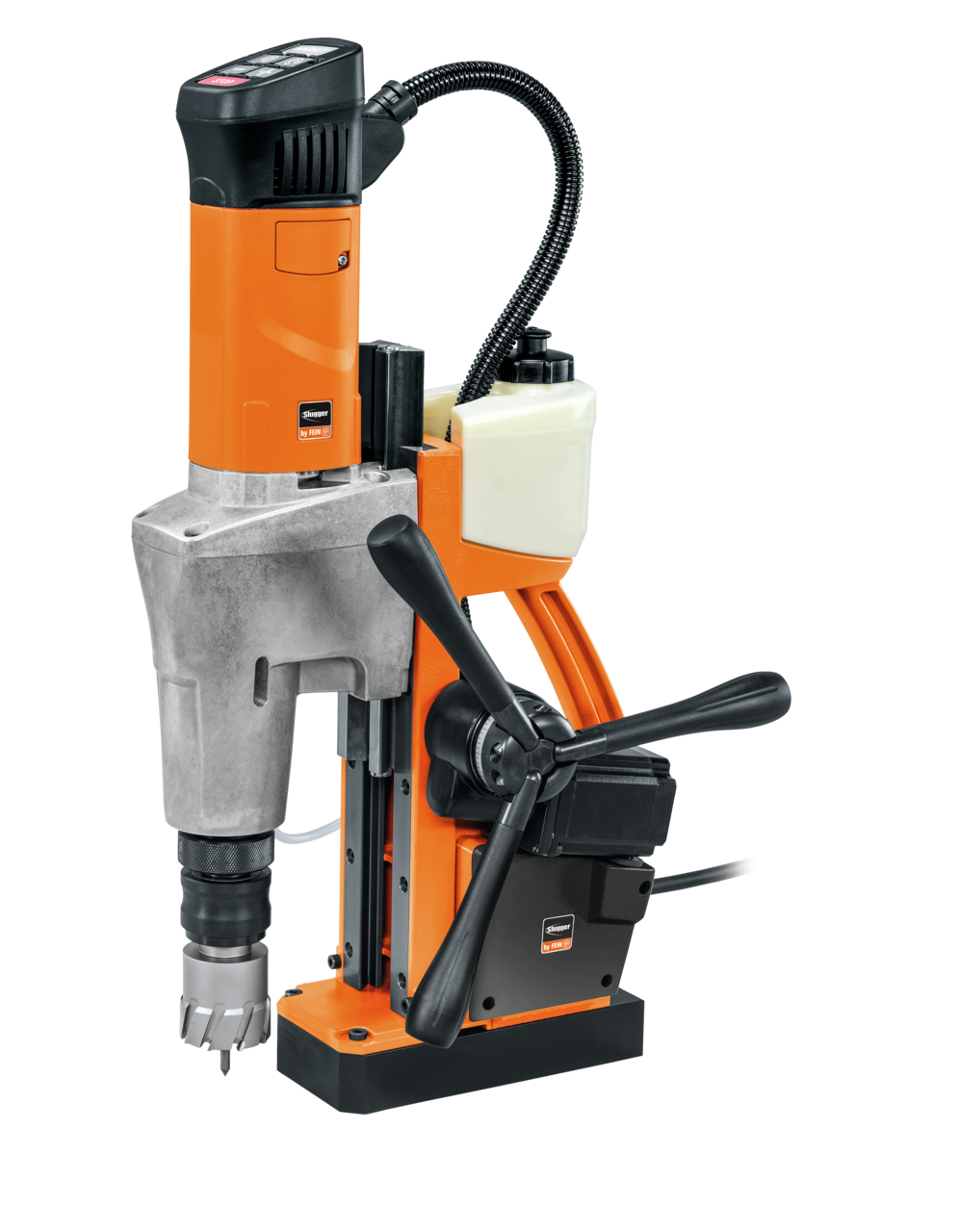

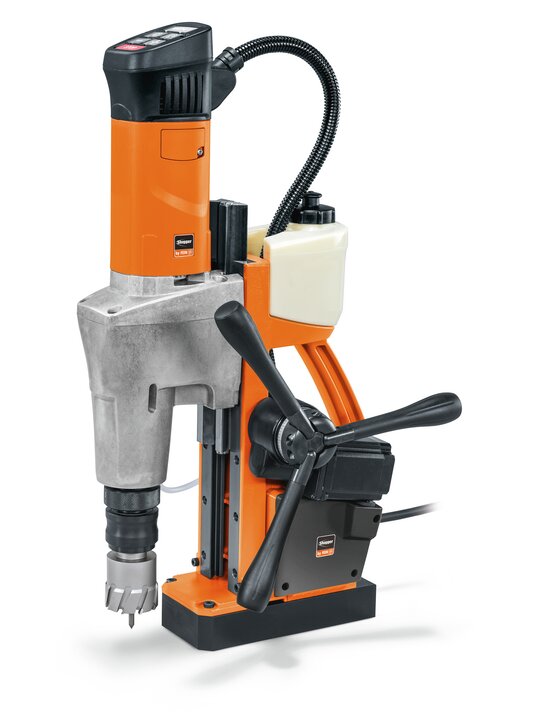

JCM 200 auto

Mag Drill unit up to 2 [50] in[mm]


JCM 200 auto

Mag Drill unit up to 2 [50] in[mm]

Light, smart, fully automatic 2-speed machine. Saves time and expense in the workshop and on the construction site.

Product number: 7 270 46 61 12 0

JCM 200 auto

Add to Shopping Cart

Details

  • Time and cost savings in large volume drilling due to digitally controlled drill feed.
  • Predictable work times on contract and serial work due to repeatable and consistent drilling times.
  • Universal operation, such as tapping in manual machine mode using forward/reverse and the MT3 interface.
  • High-power motor with stable speed.
  • Electronic speed control.
  • High magnetic holding force.
  • Convenient magnetic holding force display.
  • Integrated coolant tank.
  • Motion sensor.
  • Control pads in the field of view.
  • * optional using accessory.
  • ** only in manual machine operation

Technical data

Power consumption
1,200 W
Power output
610 W
Load speed: 1st gear
130 - 260 rpm
Load speed: 2nd gear
260 - 520 rpm
Tool mount
MT 3
Carbide cutter max. dia.
2 [50] in[mm]
HSS cutter max. dia.
1-5/8 [40] in[mm]
Cutter max. drilling depth
2 [50] (3 [75] )* in[mm]
Twist drill max. dia.
3/4 [18] /7/8 [23] ** in[mm]
Tapping
5/8 in [M 16]**
Max. countersinking dia.
2 [50] ** in[mm]
Reaming max. dia.
7/8 [23] ** in[mm]
Cutter holder
3/4 in straight shank
Cutter change
tool-free
Stroke
5-11/16 [145] in[mm]
Total stroke range
12-3/8 [315] in[mm]
Magnetic holding force
2810 [12,500] lbs[N]
Magnetic base dimensions
7-11/16 [195] x 3-9/16 [90] in[mm]
Cable with plug
13.1 [4] ft[m]
Weight according to EPTA
35.71 [16.20] lbs[kg]

Downloads

Manual instruction

PDF 23,81 MB

Download Manual instruction (23,81 MB)

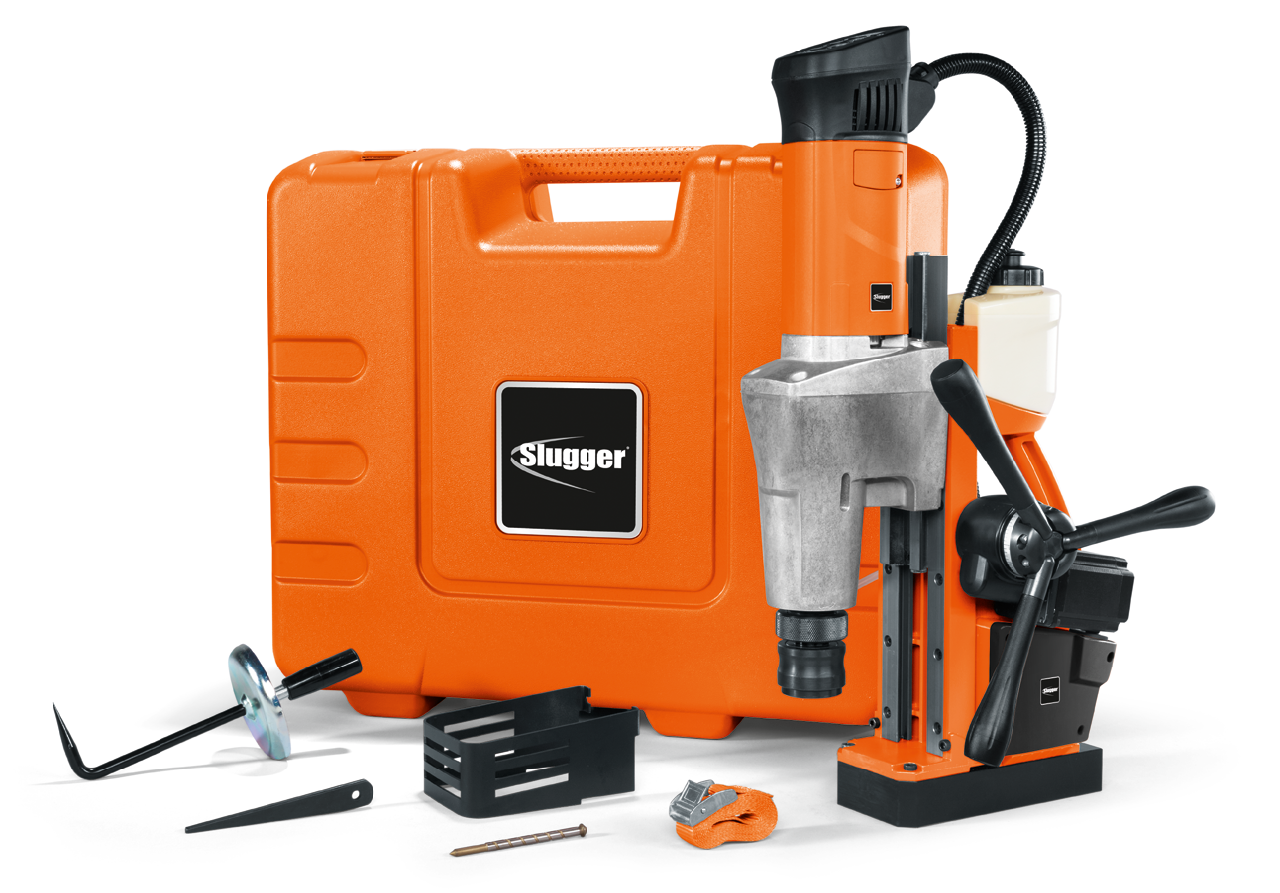

Price includes

  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 1 pilot pin 4 1/8 in (105 mm)
  • 1 drift
  • 1 chip guard
  • 1 case

Application

Mag base drilling metal up to 1-3/8 in dia.
well suitable
Mag base drilling metal up to 2 in dia.
well suitable
Twist drills with drill chuck
suitable
Spiral drilling with MT fitting
well suitable
Tapping
well suitable
Countersinking
well suitable
Reaming
well suitable
Fully automatic drilling
well suitable
Working one-handed
well suitable
Performing overhead work
suitable
Installation work
well suitable
Workshop jobs
well suitable
suitable
well suitable

Product feature

  • Magnet monitor system
  • Magnet holding force gauge
  • Automatic drill feed
  • Reversible
  • Electronic speed reduction
  • Memory function
  • Speed-controlled tacho electronics
  • Tip sensor
