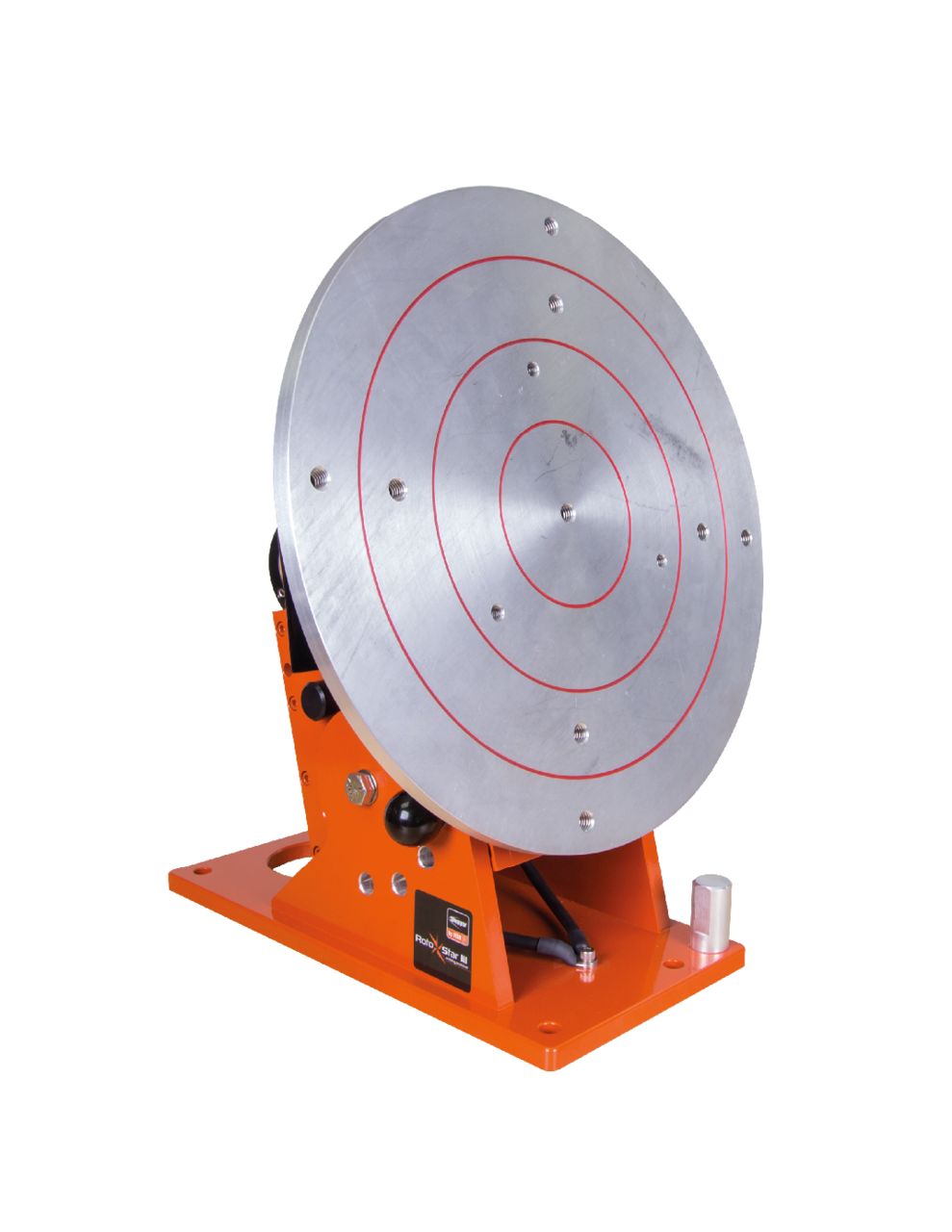

ROTO-STAR III - P
Rotary Welding Positioner
ROTO-STAR III - P
Rotary Welding Positioner
Rotary welding positioner with surface plate for work pieces up to 250 [113] lbs[kg] with variable speed foot pedal and control box.
Product number: 3 13 43 790 25 0
Details
- Provides stable work platform for increased productivity and seamless welds.
- Rotates a full 360 degree at a steady speed to weld safely and quickly.
- Pitch up to a 90 degree angle at 15 degrees increments offering enhanced mobility and functionality.
- Increases safety by eliminating operator fatigue.
- Increases production by reducing handling and by maneuvering of parts.
- Light weight and heavy duty construction.
- Provides stable work area to perfect high quality welds.
Technical data
Current/Voltage
1 x 120 V
Turntable dia.
16 [406] in[mm]
Rotation at 0°
20 [508] in[mm]
Vertical carrying capacity
250 [113.5] lbs[kg]
Horizontal carrying capacity
150 [68] lbs[kg]
Internal chuck dia.
2-1/2 [64] in[mm]
Spindle speed
0-8 rpm
Tilt adjustment
0-90°
Grounding output
300 Amp
Weight
90 [41] lbs[kg]
Downloads
Price includes
- 1 chuck
- 1 variable speed foot pedal
- 1 control box
