ROTO-STAR I

Rotary Welding Positioner

ROTO-STAR I

ROTO-STAR I

Rotary Welding Positioner

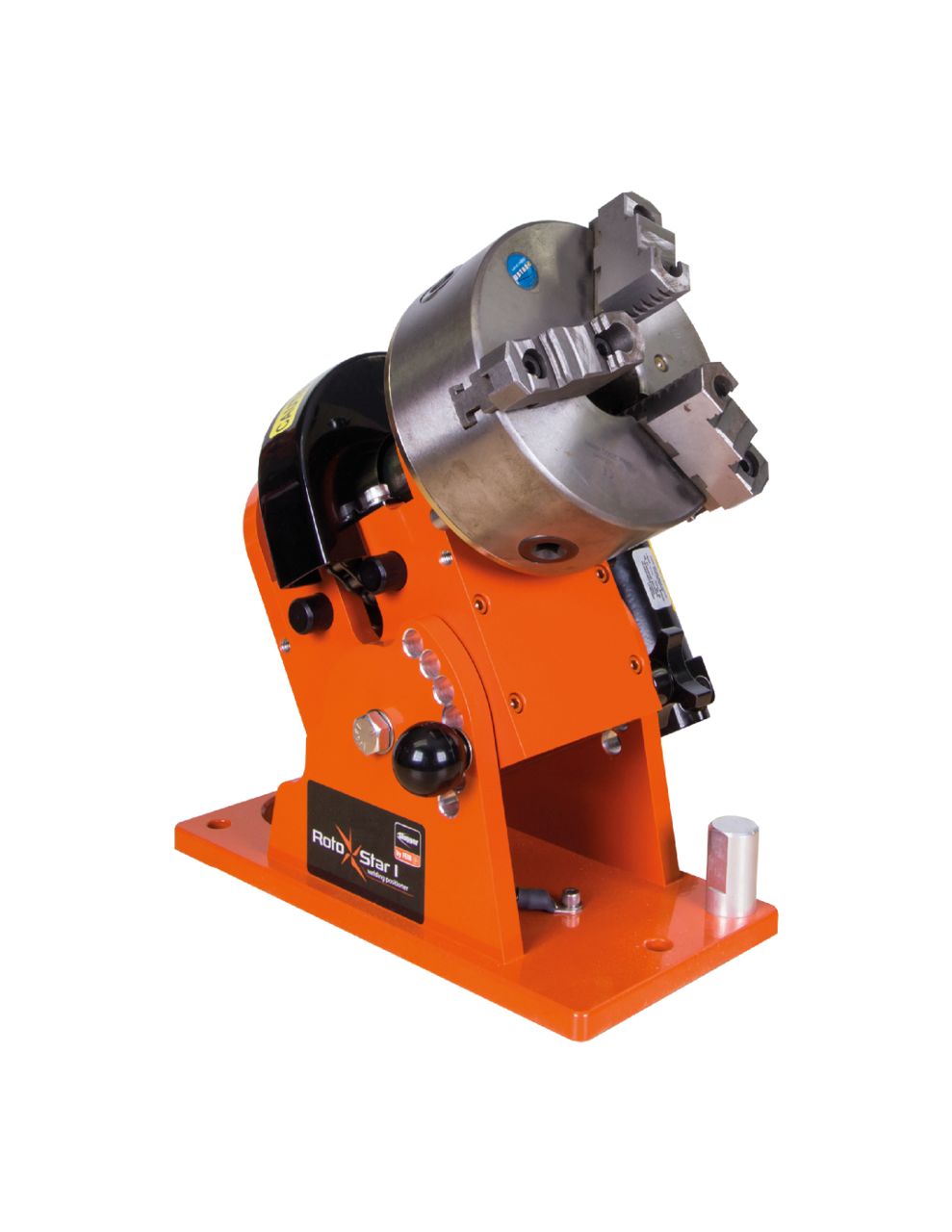

Rotary welding positioner with chuck for work pieces up to 200 [90] lbs[kg] and 3-1/2 [89] in[mm] diameter with variable speed foot pedal and control box.

Product number: 3 13 43 790 13 0

ROTO-STAR I

Add to Shopping Cart

Details

  • Provides stable work platform for increased productivity and seamless welds.
  • Rotates a full 360 degree at a steady speed to weld safely and quickly.
  • Pitch up to a 90 degree angle at 15 degrees increments offering enhanced mobility and functionality.
  • Increases safety by eliminating operator fatigue.
  • Increases production by reducing handling and by maneuvering of parts.
  • Light weight and heavy duty construction.
  • Provides stable work area to perfect high quality welds.
  • Optional rotary 12 [305] in[mm] surface plate.

Technical data

Current/Voltage
1 x 120 V
Chuck
6 [150] in[mm]
Rotation at 0°
16 [406] in[mm]
Vertical carrying capacity
200 [90.5] lbs[kg]
Horizontal carrying capacity
100 [45.5] lbs[kg]
Internal chuck dia.
1-1/2 [38] in[mm]
Spindle speed
0-10 rpm
Tilt adjustment
0-90°
Grounding output
300 Amp
Weight
59.52 [27] lbs[kg]

Downloads


Price includes

  • 1 chuck
  • 1 variable speed foot pedal
  • 1 control box
