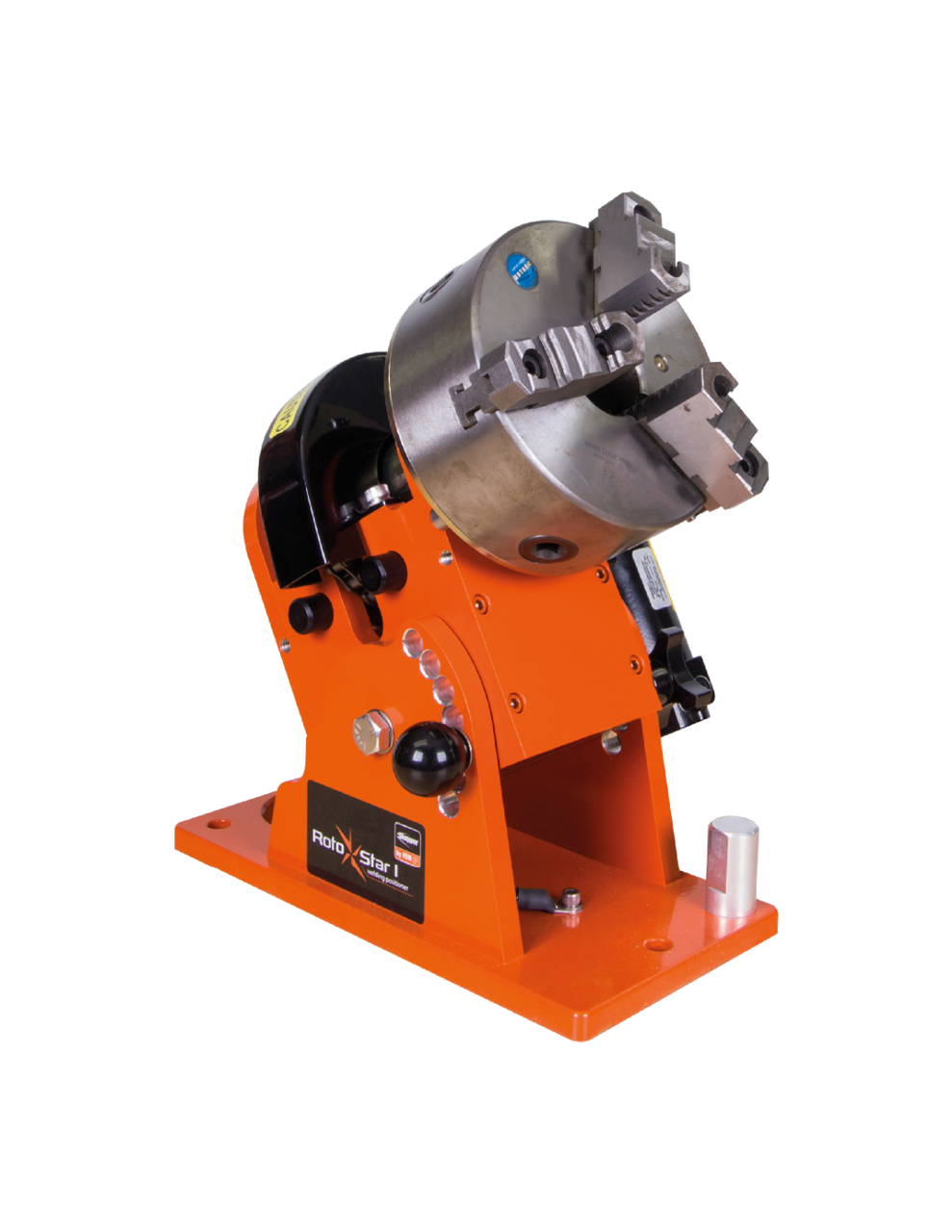

ROTO-STAR I
Rotary Welding Positioner
ROTO-STAR I
Rotary Welding Positioner
Rotary welding positioner with chuck for work pieces up to 200 [90] lbs[kg] and 3-1/2 [89] in[mm] diameter with standard foot pedal and control box.
Product number: 3 13 43 790 03 0
Details
- Provides stable work platform for increased productivity and seamless welds.
- Rotates a full 360 degree at a steady speed to weld safely and quickly.
- Pitch up to a 90 degree angle at 15 degrees increments offering enhanced mobility and functionality.
- Increases safety by eliminating operator fatigue.
- Increases production by reducing handling and by maneuvering of parts.
- Light weight and heavy duty construction.
- Provides stable work area to perfect high quality welds.
- Optional rotary 12 [305] in[mm] surface plate.
- Optional variable speed foot pedal and with control box.
Technical data
Current/Voltage
1 x 120 V
Chuck
6 [150] in[mm]
Rotation at 0°
16 [406] in[mm]
Vertical carrying capacity
200 [90.5] lbs[kg]
Horizontal carrying capacity
100 [45.5] lbs[kg]
Internal chuck dia.
1-1/2 [38] in[mm]
Spindle speed
0-10 rpm
Tilt adjustment
0-90°
Grounding output
300 Amp
Weight
60 [27] lbs[kg]
Downloads
Price includes
- 1 chuck
- 1 standard foot pedal
- 1 control box
