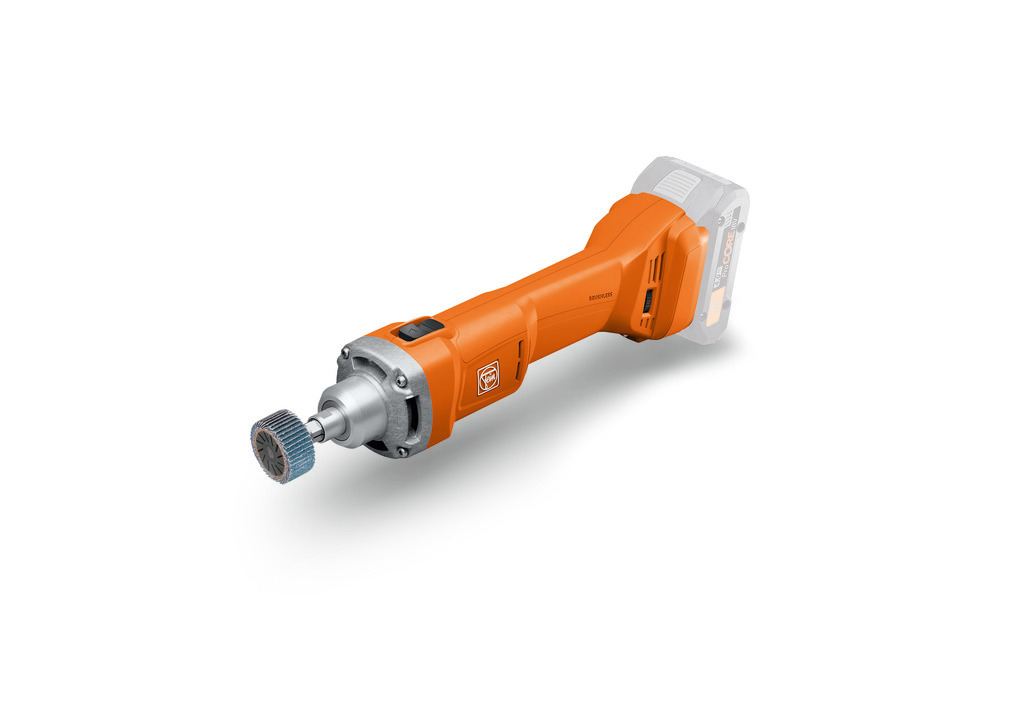

AGSZ 18-280 BL AS
Cordless die grinder
AGSZ 18-280 BL AS
Cordless die grinder
Dust-resistant and powerful compact cordless die grinder for effective cutting, sanding, deburring and milling work.
Product number: 7 123 04 61 09 0
Details
- Guarantees the highest service life with the next generation of brushless FEIN PowerDrive motors. The completely closed motor housing protects the motor against aggressive ceramic and mineral dusts.
- Ideal for any application. Optimal speeds, matched to many grinding materials. Variable speed to match grinding wheel RPM requirements.
- High-performance. 30% higher degree of efficiency than comparable universal motors with 1,100 watts of input power.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
- Smooth, vibration-free operation with the independently mounted motor, isolated from the housing and enhanced by four additional dampers.
- Extensive user protection through soft start, restart protection and electronic overload protection.
- Innovative collets with wrap around collar for workpiece protection and to prevent the wrench slipping when changing tools.
- Low-fatigue working with its slim grip, compact design and low weight with good balance.
- Dust-protected, separate motor electronics in the grip area.
- Compatible with all CORE 18 V AMPShare batteries and chargers, for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless tools.
- Well lit work area thanks to the integrated LED lights.
- Perfectly equipped for any job with our L-BOXX system.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Motor
brushless
No load speed
9,000 - 28,000
Grinding wheel for max. Ø
2 [50] in[mm]
Collet for max. Ø
1/4 [8] in[mm]
Milling machine max. dia.
1/2 [12] in[mm]
Weight without battery
2.98 [1.35] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
83 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
94 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
97 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh,SG (Ø 50mm) 9,0 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
αh,SG (Ø 25mm) 4,7 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 collet Ø 1/4 in [6 mm]
- Spanner size 3
- Spanner SW17
- 1 plastic carrying case (L-BOXX 238)
Application
Product feature
- POWERtronic tacho electronics
- Soft-start
- Restart protection
- Jam monitoring
- Electronic overload protection
- Electronic speed selection
