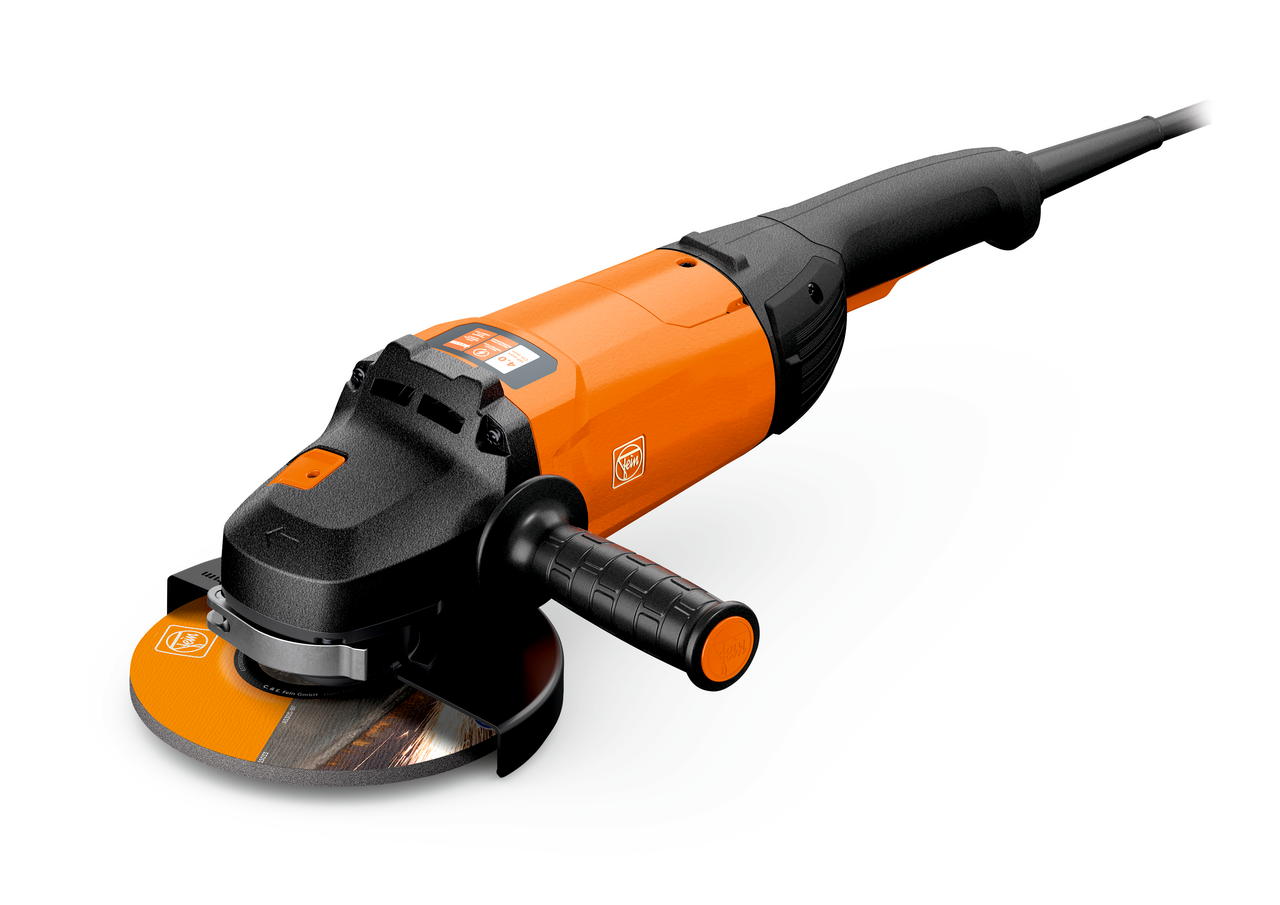

AlphaGrind LG 22-180 angle grinder
Angle grinder with 2,200 W | Ø 7 in
AlphaGrind LG 22-180 angle grinder
Angle grinder with 2,200 W | Ø 7 in
Designed for heavy-duty grinding and cutting work, with ergonomic FEIN anti-vibration handle. Suitable for concrete, optimized for metal.
Product number: 7 225 14 60 12 0
Details
- Maximum performance with 2,200 W of power. Built for aggressive grinding and cutting applications, especially when using highly abrasive ceramic discs.
- Built for durability in metal with over 400 hours of continuous operation and advanced metal dust protection. LongLife Auto-Stop carbon brushes (150+ hours) and a service-friendly design reducing maintenance and downtime.
- Low vibration levels of 4.8 m/s² thanks to the FEIN anti-vibration handle.
Technical data
Technical data
Voltage range
110 - 120 V
Power consumption
2,200 W
Power output
1,500 W
Switch
lock‑on switch
Motor
Brushed
No load speed
8,500 rpm
Cutting depth
1-3/4 [44] in[mm]
Grinding wheel Ø
7 [180] in[mm]
Mounting thread
5/8-11
Cable
13 [4] m
Weight
12.13 [5.50] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
96,3 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
104,3 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
110,4 dB
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 1 αhv 3-way
4,8 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
2,7 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 Angle grinder
- 1 grinding guard 7 [180] in[mm]
- 1 cutting guard 7 [180] in[mm]
- 1 Anti-vibration handle
- 1 Inner flange
- 1 clamping nut
Application
Product feature
- Soft-start
- Anti-vibration handle
- Tool-free safety guard adjustment
- LongLife Auto-Stop carbon brushes
- Restart protection
- Dust protection filter
