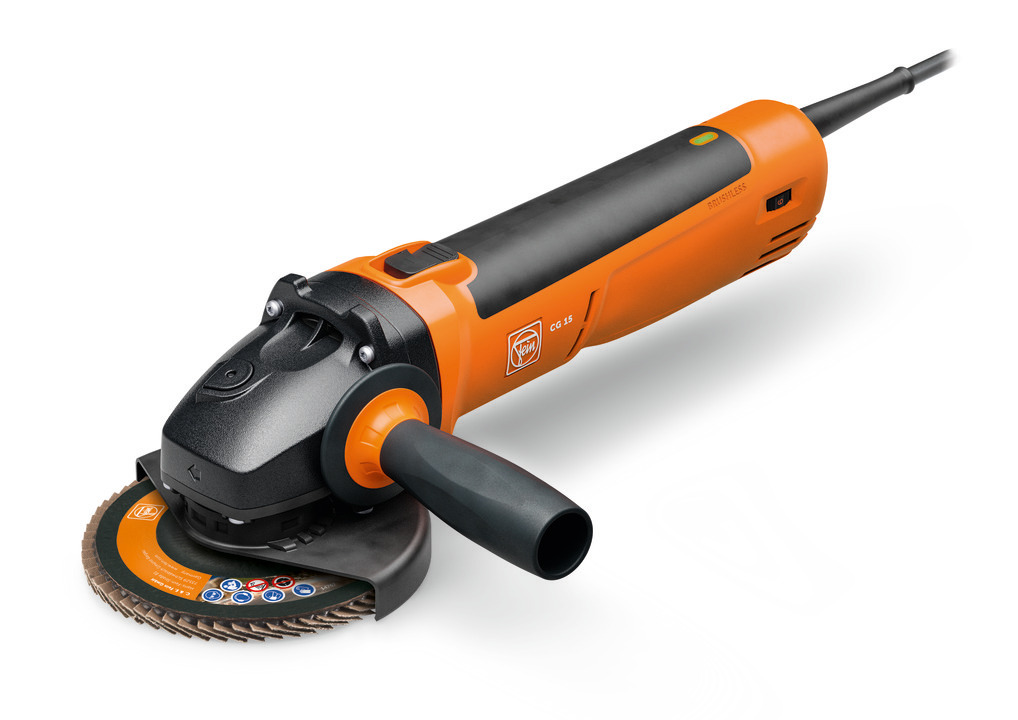

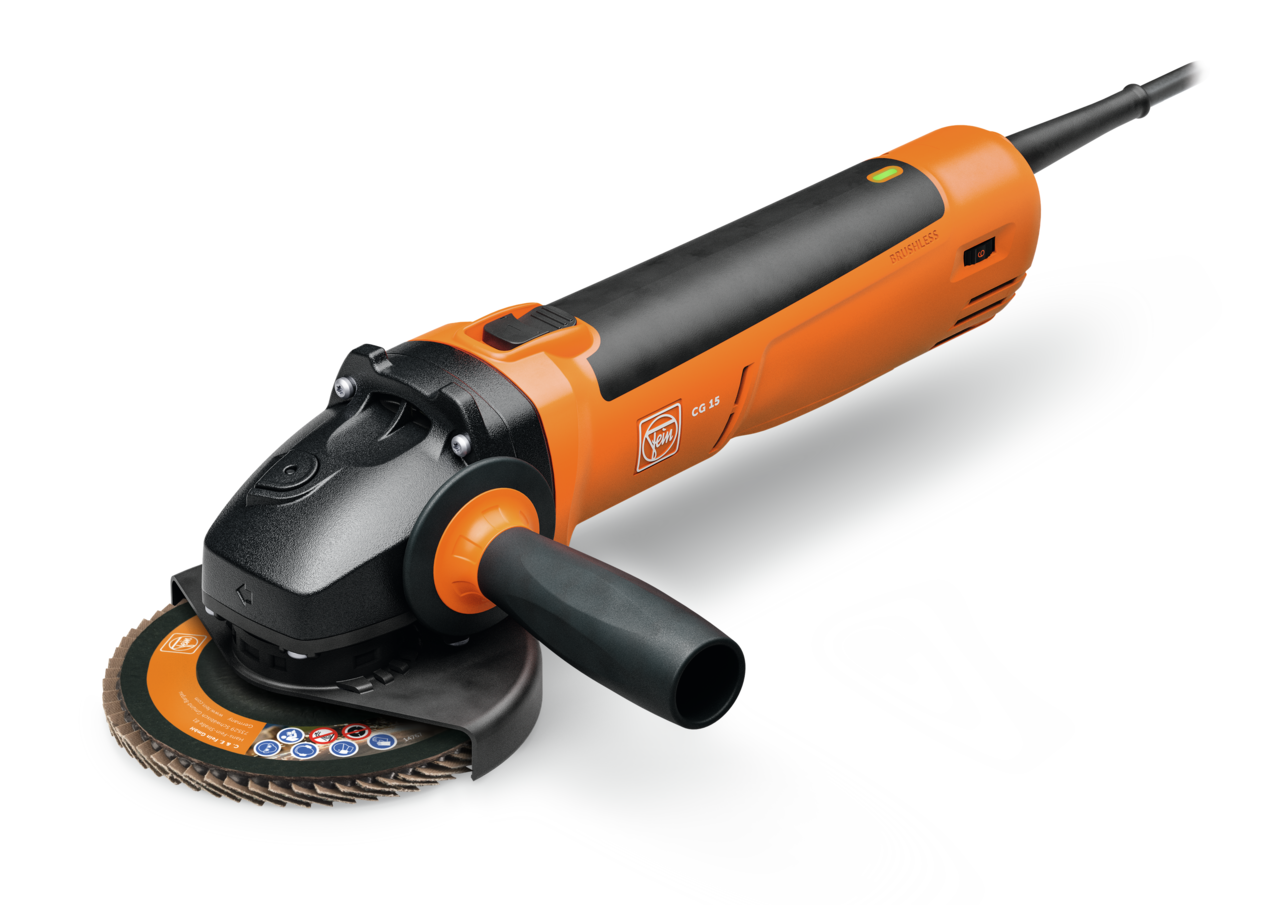

CG 15-125 BL Inox
Compact Angle Grinder Ø 5 in
CG 15-125 BL Inox
Compact Angle Grinder Ø 5 in
Dustproof, powerful, low-maintenance and durable compact angle grinder with brushless FEIN PowerDrive motor for effective grinding, cutting and deburring work in heavy-duty environments for stainless steel processing.
Product number: 7 222 86 60 12 0
Details
- Unmatched durability with the brushless FEIN PowerDrive motor, featuring a fully sealed housing and isolated motor electronics for peak longevity.
- Built to withstand aggressive ceramic and mineral dust, the sealed FEIN PowerDrive motor reduces downtime and maintenance costs, delivering unstoppable performance and longevity.
- Maximum user safety with soft start, restart prevention, kick back protection, electronic overload protection and a brake system.
- Motor cooling and temperature monitoring.
- A weight of only 5.0 [2.3] lbs[kg] at an output power of 1,050 W for an outstanding weight-to-performance ratio.
- Includes a rapid-clamping nut for the tool-free changeover of abrasive in seconds.
- Perfect ergonomics, its slim grip, compact build, and lightweight feel offer outstanding balance.
- 13 ft, HO7 industrial cable.
Technical data
Technical data
Power consumption
1,500 W
Power output
1,050 W
No load speed
2,800 - 7,000
Grinding wheel Ø
5 [125] in[mm]
Elastic backing pad Ø
5 [125] in[mm]
Mounting thread
5/8-11 in
Cable with plug
13.1 [4] ft[m]
Weight
5.07 [2.30] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
86 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
97 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
101 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
4,2 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
2,1 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads

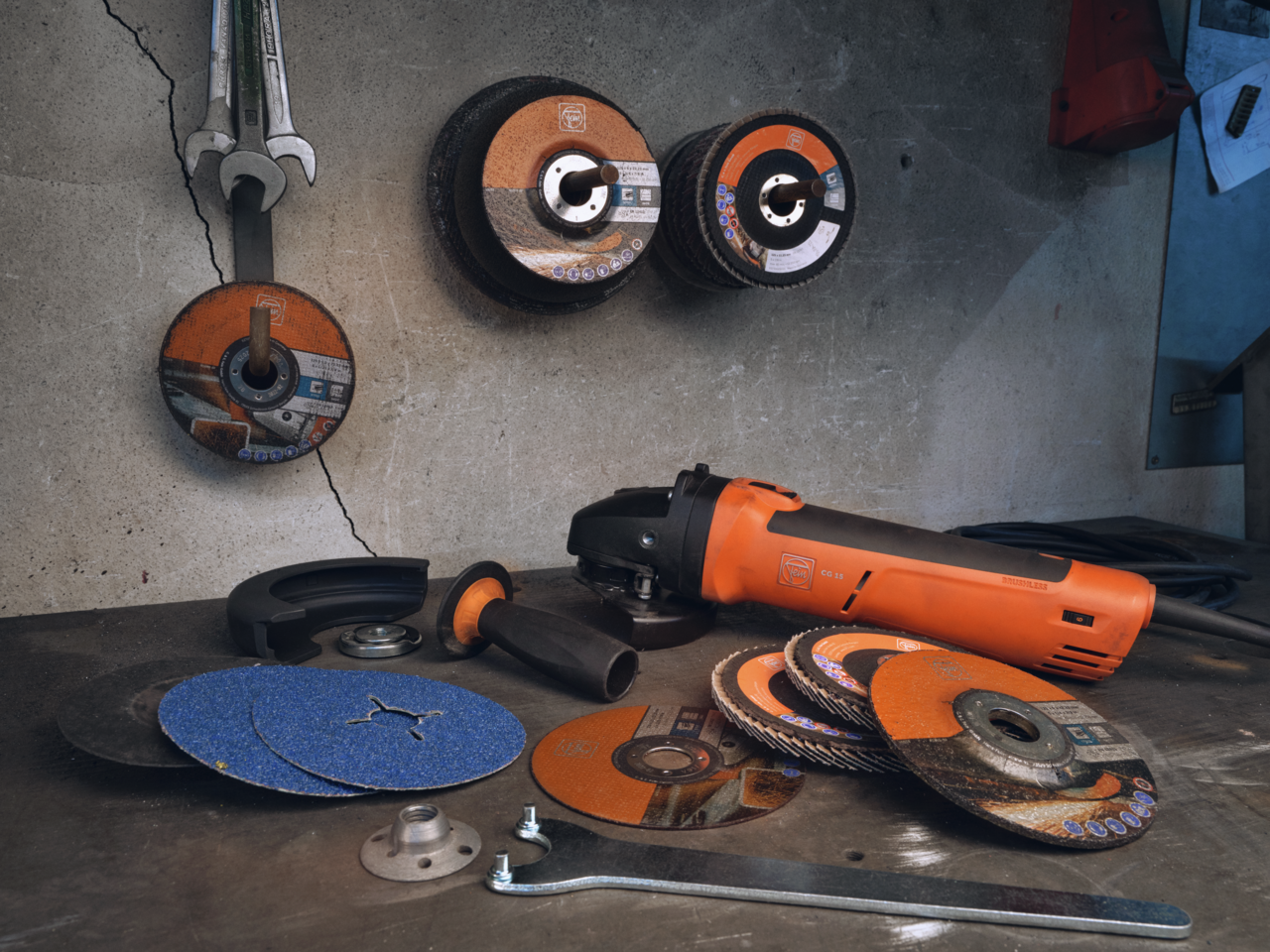

Price includes
- 1 guard
- 1 tool-free quick-action clamping nut
- 1 anti-vibration handle
- 1 wrench
Application
Product feature
- Brake
- Soft-start
- Restart protection
- Jam monitoring
- Electronic overload protection
- Electronic speed selection
- Kickback control
