CG 15-125 BL

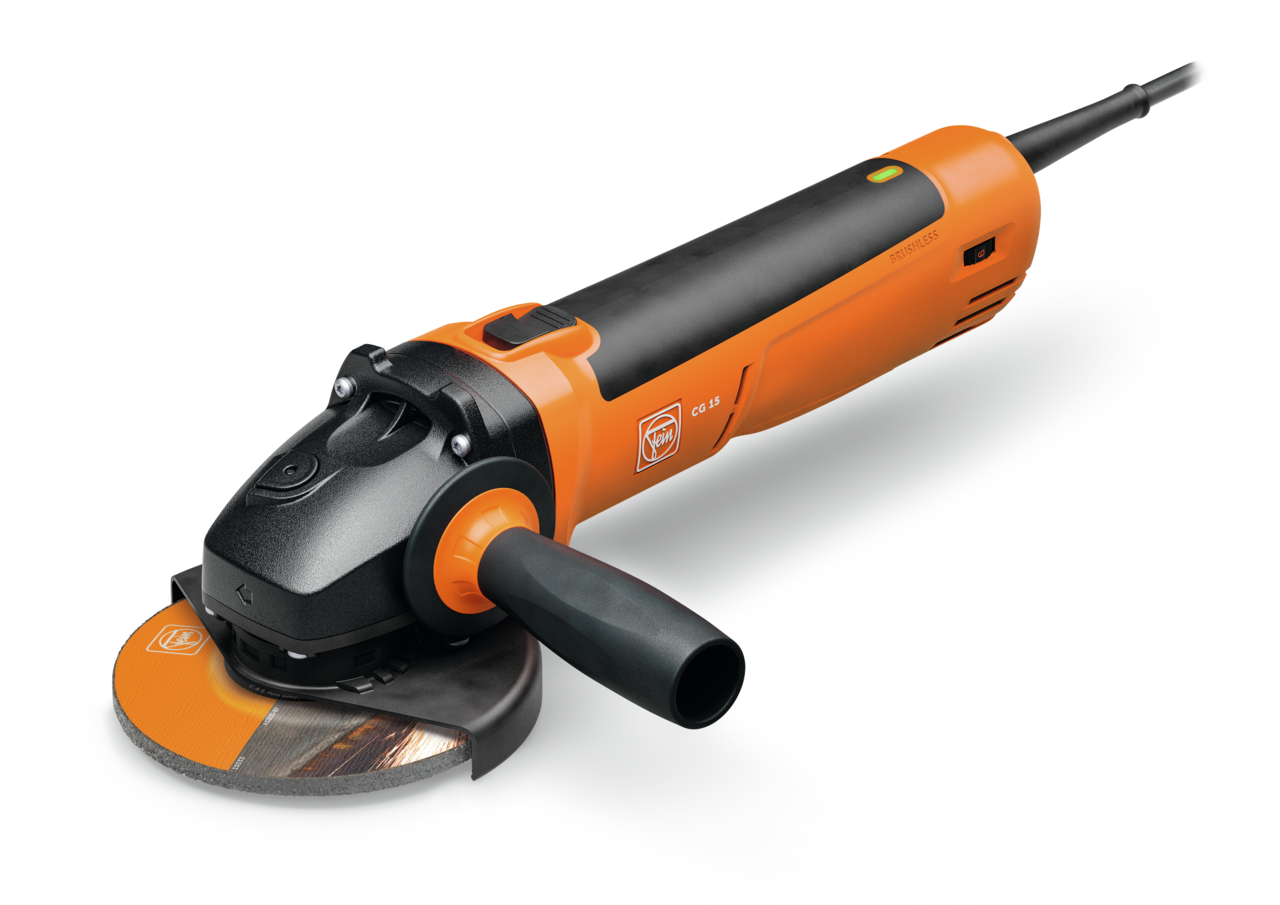

Compact Angle Grinder Ø 5 in

CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL
CG 15-125 BL

CG 15-125 BL
Compact Angle Grinder Ø 5 in

Dustproof, powerful, low-maintenance and durable compact angle grinder with brushless FEIN PowerDrive motor for effective grinding, cutting and deburring work in heavy-duty environments.

Product number: 7 222 67 60 12 0

CG 15-125 BL

Add to Shopping Cart

Details

  • Unmatched durability with the brushless FEIN PowerDrive motor, featuring a fully sealed housing and isolated motor electronics for peak longevity.
  • Built to withstand aggressive ceramic and mineral dust, the sealed FEIN PowerDrive motor reduces downtime and maintenance costs, delivering unstoppable performance and longevity.
  • Maximum user safety with soft start, restart prevention, kick back protection, electronic overload protection and a brake system.
  • Motor cooling and temperature monitoring.
  • A weight of only 5.07 [2.3] lbs[kg] at an output power of 1,050 W for an outstanding weight-to-performance ratio.
  • Includes a rapid-clamping nut for the tool-free changeover of abrasive in seconds.
  • Perfect ergonomics, its slim grip, compact build, and lightweight feel offer outstanding balance.
  • 13 ft, HO7 industrial cable.

Technical data

Technical data
Power consumption
1,500 W
Power output
1,050 W
No load speed
3,800 - 9,000
Grinding wheel Ø
5 [125] in[mm]
Elastic backing pad Ø
5 [125] in[mm]
Mounting thread
5/8-11 in
Cable with plug
13.1 [4] ft[m]
Weight
4.85 [2.20] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
86 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
97 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
102 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
5,1 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
1,7 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 9,22 MB

Download Manual instruction (9,22 MB)

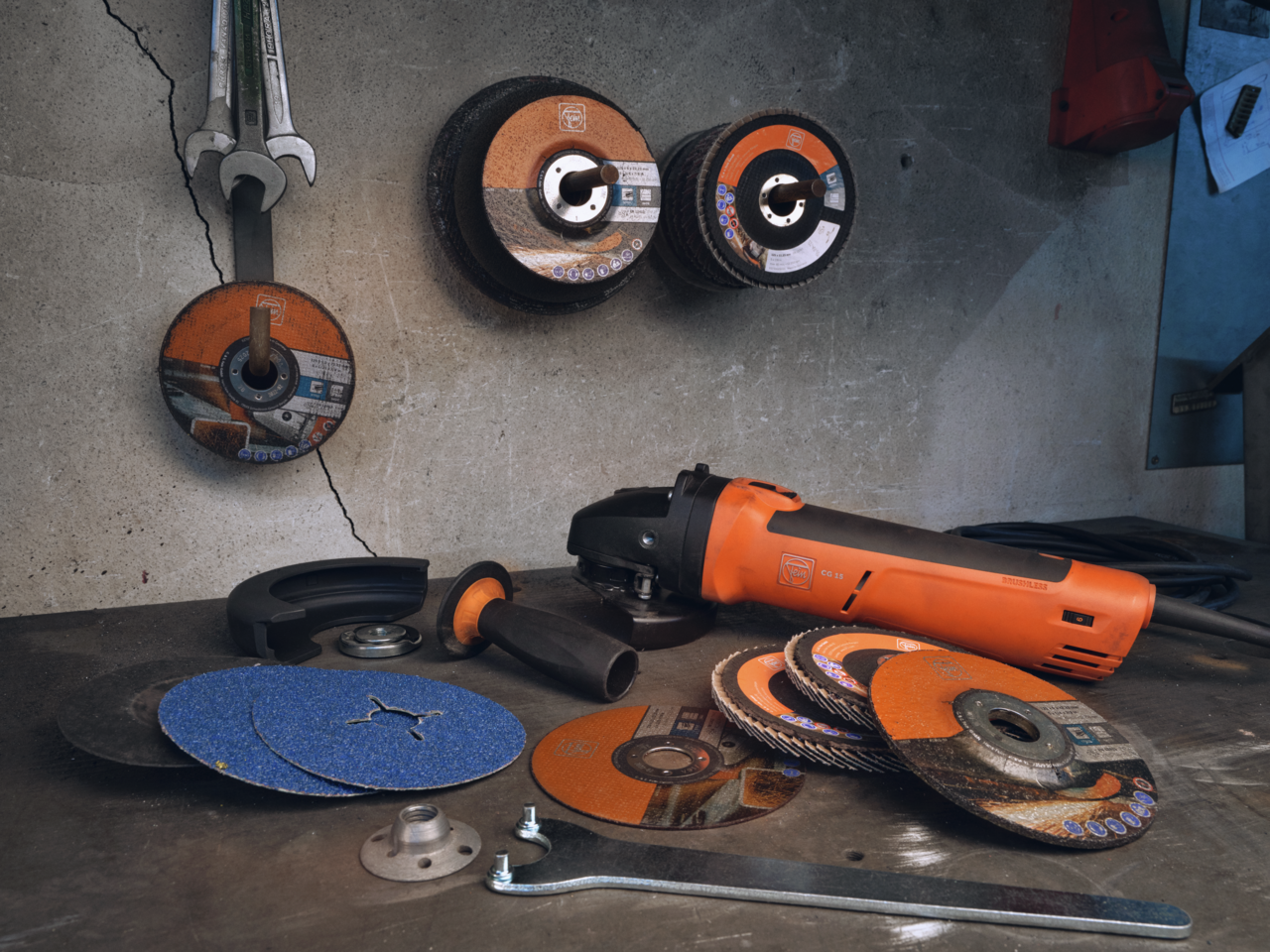

Price includes

  • 1 guard
  • 1 tool-free quick-action clamping nut
  • 1 anti-vibration handle
  • 1 wrench

Application

Material removal
well suitable
Deburring
suitable
Cutting
well suitable
Brushing
well suitable
suitable
well suitable

Product feature

  • Brake
  • Soft-start
  • Restart protection
  • Jam monitoring
  • Electronic overload protection
  • Electronic speed selection
  • Kickback control
