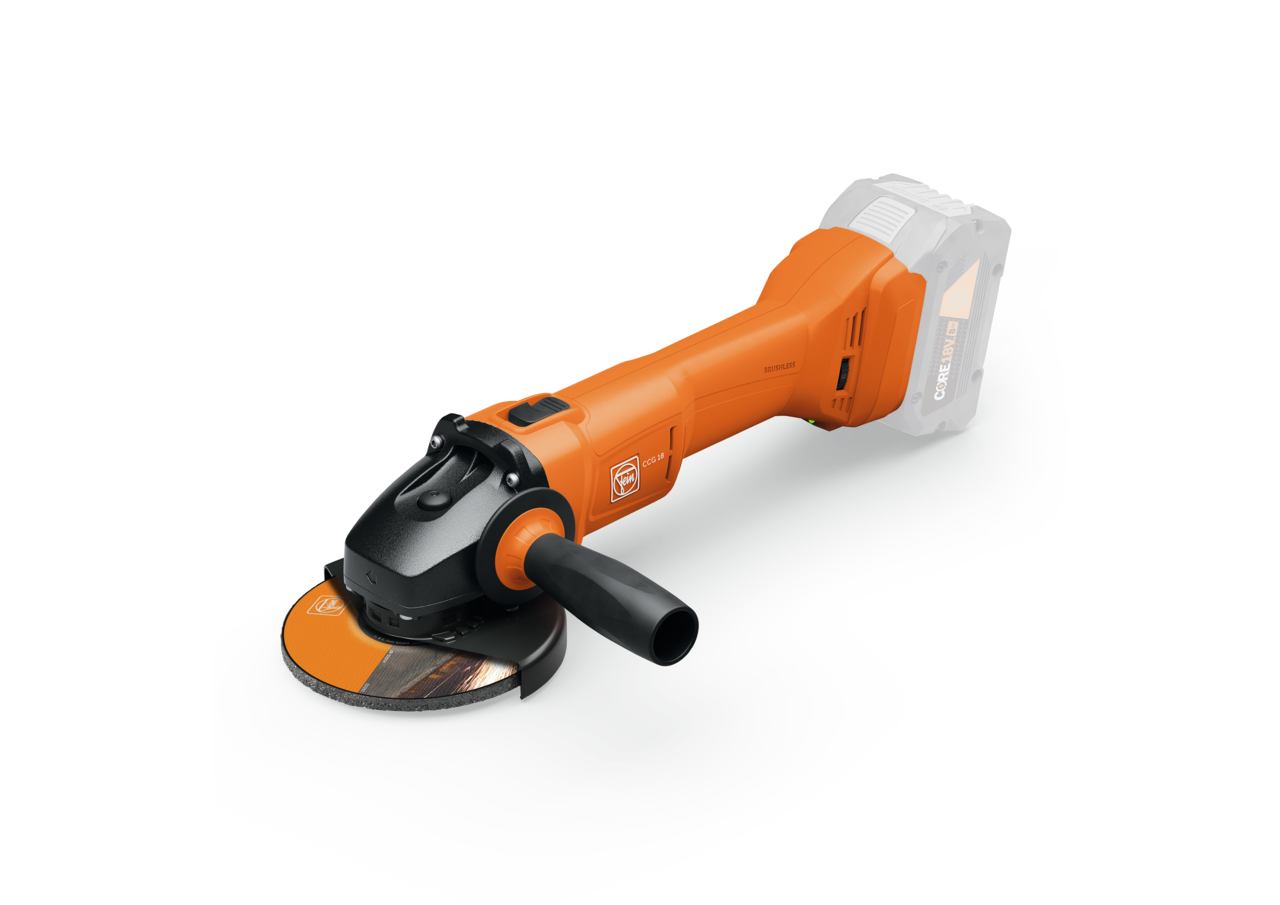

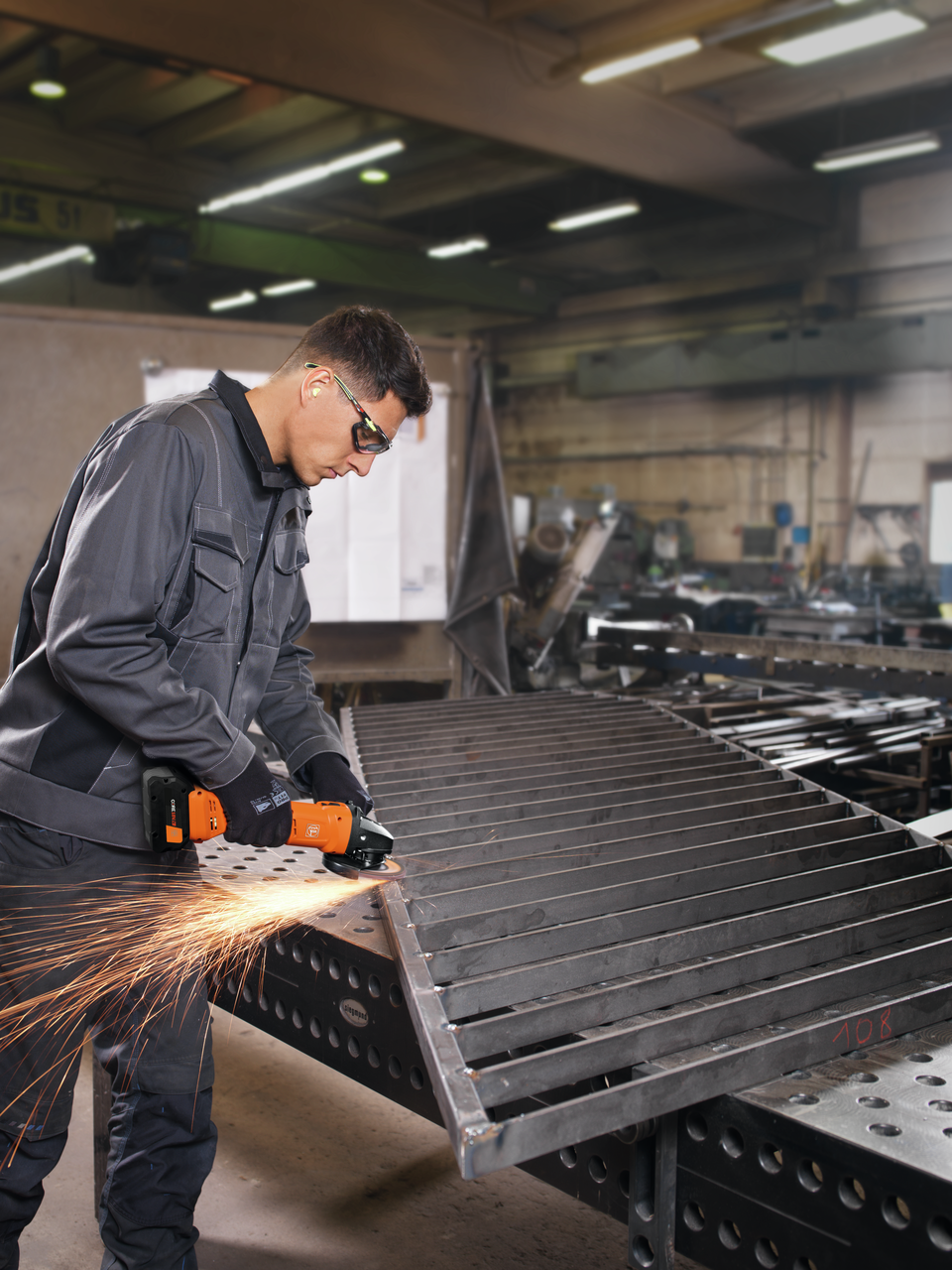

CCG 18-125-10 AS
Cordless angle grinder, 5 [125] in[mm] dia.
CCG 18-125-10 AS
Cordless angle grinder, 5 [125] in[mm] dia.
Dust-resistant and powerful cordless angle grinder for effective cutting, grinding and deburring work in installation use.
Product number: 7 122 02 60 12 0
Details
- Guarantees the highest service life with the next generation of brushless FEIN PowerDrive motors. The completely closed motor housing protects the motor against aggressive ceramic and mineral dusts.
- Ideal for any application. Optimal speeds, matched to many grinding materials. Variable speed to match grinding wheel RPM requirements.
- High-performance. 30% more efficient than comparable universal motors with 1,080 watts of input power.
- Delivers the same power as an equivalent 1,080-watt corded angle grinder.
- Maintenance-free motor with innovative cooling fins for optimal heat dissipation including temperature monitoring.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
- CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
- Smooth, vibration-free operation with the independently mounted motor, isolated from the housing and enhanced by four additional dampers.
- Maximum user safety with soft start, restart prevention, electronic overload protection and a brake system.
- Low-fatigue working with its slim grip, compact design and low weight with good balance.
- Dust-protected, separate motor electronics in the grip area.
- Compatible with all CORE 18 V AMPShare batteries and chargers, for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless tools.
- Quick setup with the tool-free adjustable safety guard and fast-clamping nut for maximum efficiency.
- Well lit work area thanks to the integrated LED lights.
Technical data
Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Motor
brushless
No load speed
2,500 - 8,500
Grinding wheel Ø
5 [125] in[mm]
Elastic backing pad Ø
5 [125] in[mm]
Mounting thread
5/8-11 in
Weight without battery
4.41 [2.00] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
86 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
97 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
99 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
4,7 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
1,4 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 guard
- 1 tool-free quick-action clamping nut
- 1 anti-vibration handle
- 1 wrench
Application
Product feature
- Brake
- POWERtronic tacho electronics
- Soft-start
- Restart protection
- Jam monitoring
- Electronic overload protection
- Electronic speed selection
