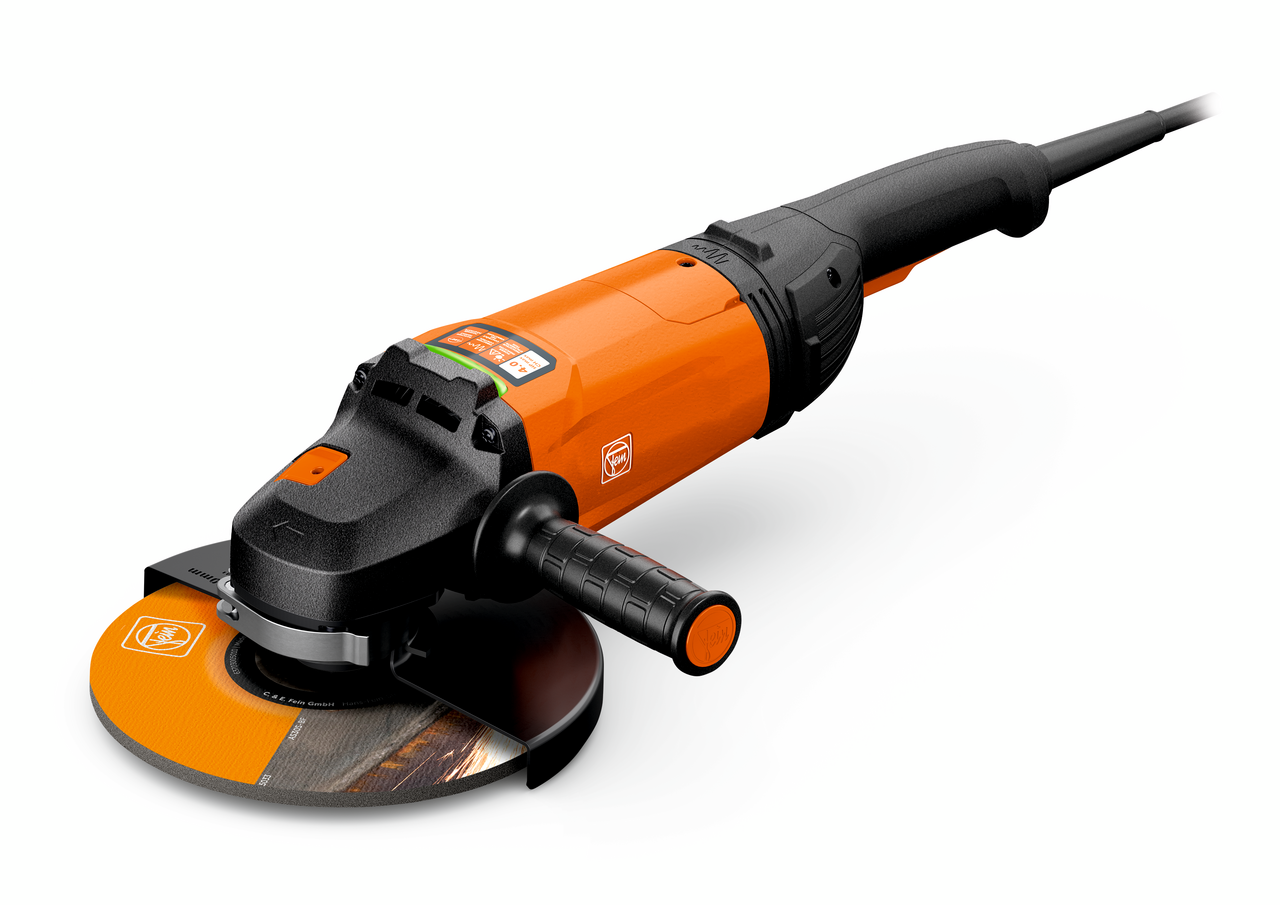

AlphaGrind LG 24-230 D Pro angle grinder
Angle grinder with 2,400 W | Ø 9 in
AlphaGrind LG 24-230 D Pro angle grinder
Angle grinder with 2,400 W | Ø 9 in
Designed for the toughest grinding and cutting jobs. Engineered to last up to 2x longer than comparable grinders.
Product number: 7 225 16 60 12 0
Details
- Maximum performance with 2,400 W of power. Built for aggressive grinding and cutting applications, especially when using highly abrasive ceramic discs.
- Durable brushes and strong motor protection with dust filtering help extend service intervals.
- FEIN Power Indicator: A built-in LED gives you instant status updates, clearly displaying operational readiness, temperature load, and any safety shutoffs like restart protection or kickback control.
- Ergonomics and safety: Features a flexibly adjustable 180° rotating handle as well as drop-stop and anti-kickback functions.
Technical data
Technical data
Voltage range
110 - 120 V
Power consumption
2,400 W
Power output
1,600 W
Switch
deadman switch
Motor
Brushed
No load speed
6,600 rpm
Cutting depth
2-3/4 [69] in[mm]
Grinding wheel Ø
9 [230] in[mm]
Mounting thread
5/8-11
Cable
13 [4] m
Weight
13.67 [6.20] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
95,6 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
103,6 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
109,9 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
7,1 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Vibration value 2 αhv 3-way
4,4 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 Angle grinder
- 1 grinding guard 9 [230] in[mm]
- 1 cutting guard 9 [230] in[mm]
- 1 Anti-vibration handle
- 1 Inner flange
- 1 clamping nut
- 1 spanner wrench
Application
Product feature
- Soft-start
- FEIN Power Indicator (LED)
- Anti-vibration system
- 180° rotatable handle
- Drop-stop function
- Tool-free safety guard adjustment
- Restart protection
- Electronic overload protection
- Kickback control
- Dust protection filter
