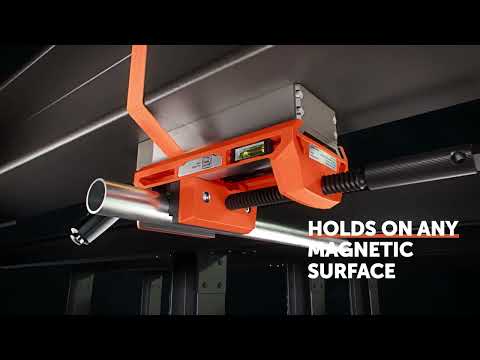

FEIN VersaMAG Vise Set
Magnetic vise with a jaw width of 4 [100] in[mm].
FEIN VersaMAG Vise Set
Magnetic vise with a jaw width of 4 [100] in[mm].
Compact and powerful permanent magnet with vise for the tool-free clamping of various components on magnetic surfaces.
Product number: 9 07 01 004 02 0
Details
- A powerful, portable vise: FEIN VersaMAG is compact and its narrow permanent magent adapts to any workstation.
- Work safely with a wide range of options for use.
- Modular system: The unique modular system ensures a secure hold in a variety of work situations and can always be extended with the required accessories.
- The vise has a clamping range of 4-1/4 [108] in[mm] and a jaw width of 4 [100] in[mm].
- Interchangeable clamping jaws in various heights for clamping larger materials such as sheet metal and pipes.
- With an innovative two-rotor system, up to 1,754 lbf holding force for secure clamping to all magnetic surfaces – even in the thin sheet range [from 5/32[4] in[mm] thickness].
- Clamping in tight spaces or level vertical surfaces? With its compact design and extra-narrow permanent magnets, challenging job sites are made a lot easier.
- Precise alignment of the permanent magnets with the aid of 30% pre-magnetization.
- Secure clamping of components for further processing with different power tools, e.g. angle grinders, screw guns, saws, MULTIMASTER, etc.
Technical data
Jaw height
1-9/16 [40]
Jaw width
3-15/16 [100]
Magnetic holding force
1754 [7,800] lbs[N]
Magnetic base dimensions
8-3/8 [212] x2-3/4 [70] in[mm]
Weight
15.98 [7.25] lbs[kg]
Downloads
Price includes
- 1 permanent magnet
- 1 mounting plate
- 1 VersaMAG magnetic vise
- 1 Allen key 3 mm
- 1 safety strap
