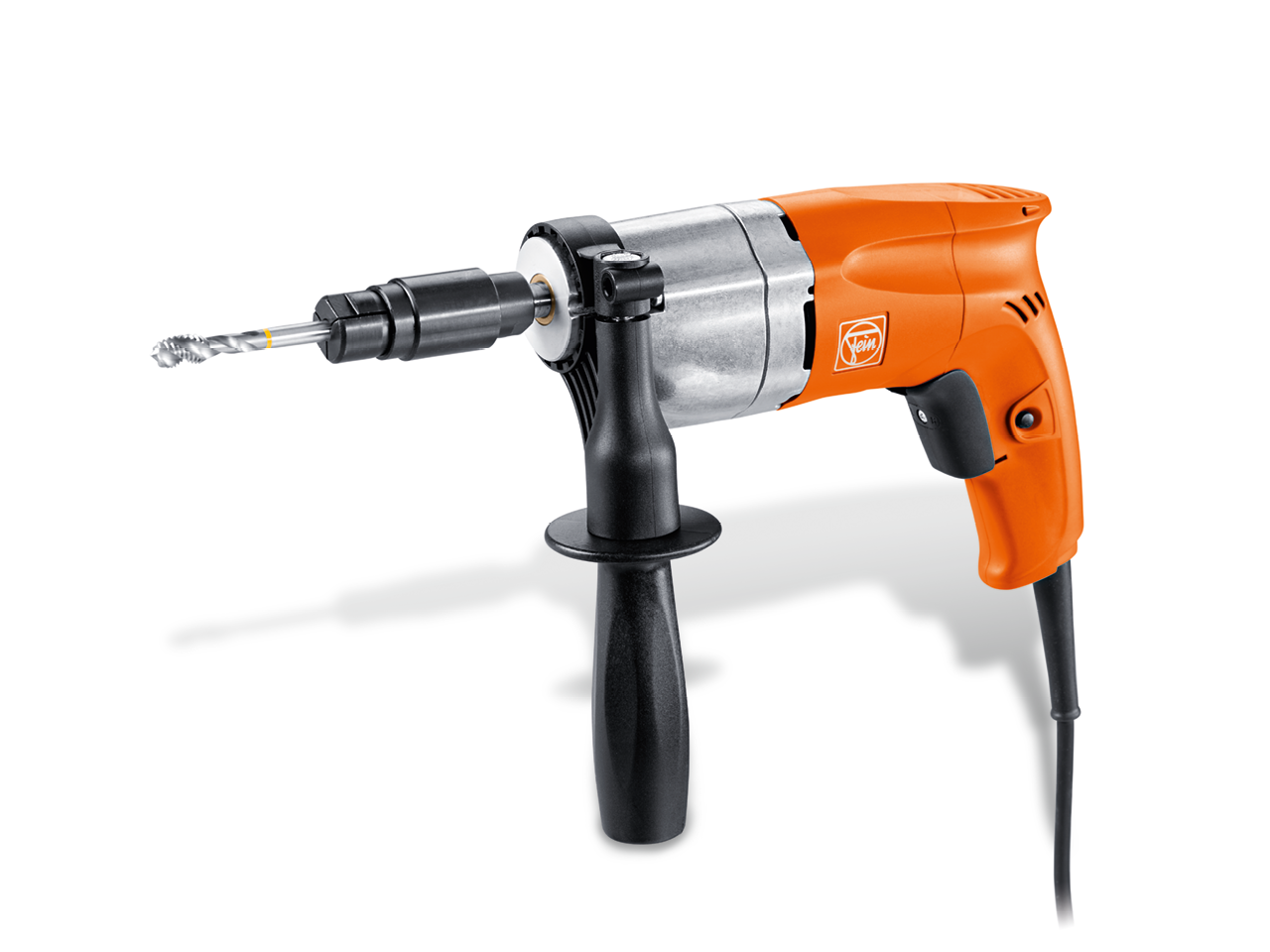

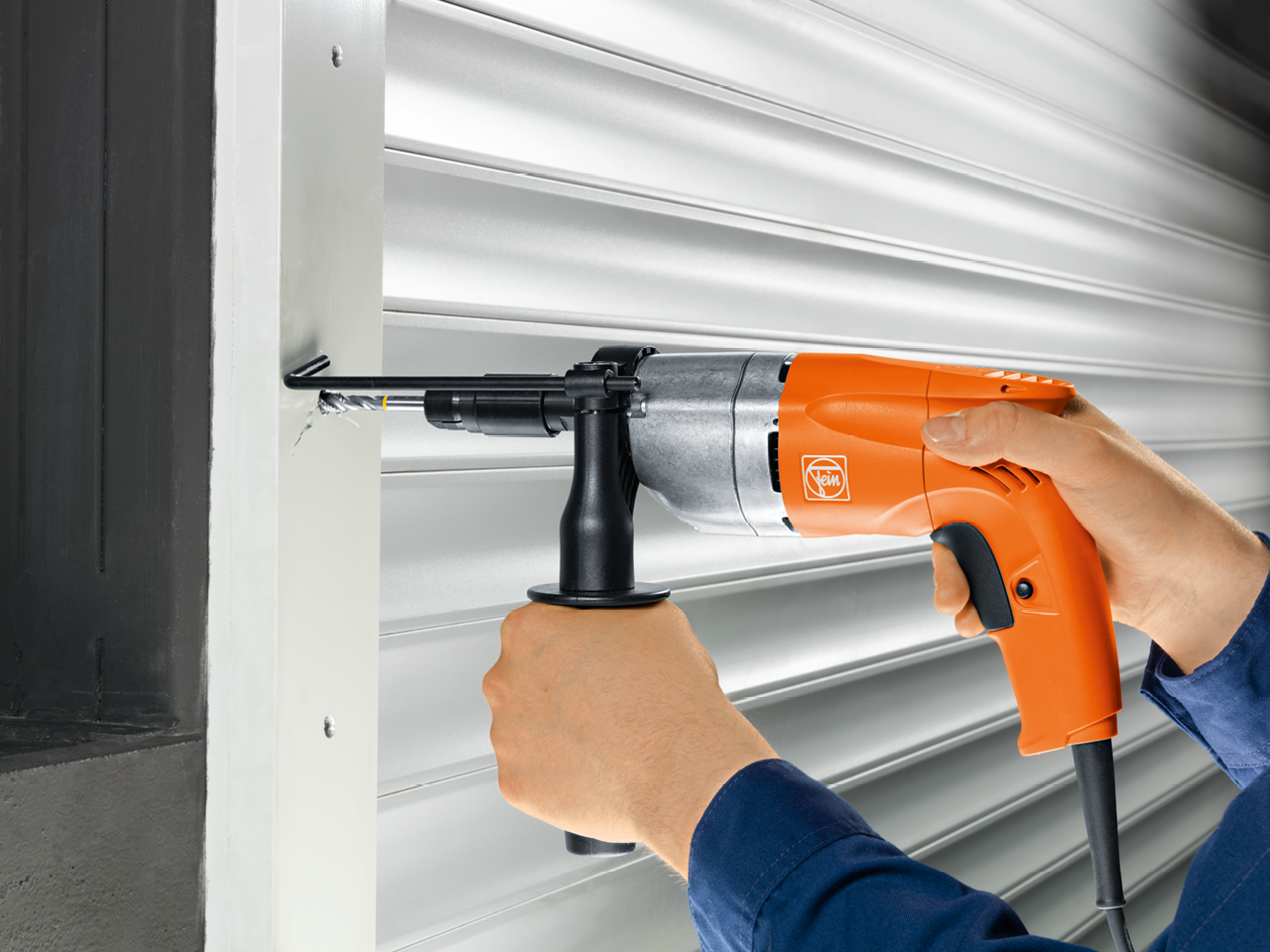

Tapper up to 3/8 in (M10)

Fast, precise tapper with reversing gear for shorter working times.

Product number: 7 209 38 60 09 0

GWP 10

Add to Shopping Cart

Details

  • Exceptional speed due to reversing gear for automatic rotation reversal when withdrawing the drill spindle from the threaded hole. Fast, 680 rpm return for shorter cycle times.
  • Outstanding precision due to a tight connection of drill shaft and tapping chuck using a B12 tapered mount for high accuracy. Accurate tapper mounting in the tapping chuck for best work results.
  • FEIN ergonomic grip applies the feed pressure directly along the tapping axis with the guiding hand ideally positioned.
  • FEIN stable speed high-performance motor.
  • Width across corners only 29/32 in (23 mm).
  • Metal gear head.
  • Torsion-free, barrel-type motor housing.

Technical data

Technical data
Power consumption
450 W
Power output
250 W
No-load speed in reverse
- 1,000 rpm
Load speed when cutting
- 450 rpm
Load speed in reverse
- 680 rpm
Torque at maximum output power
186 [21] in/lbs[Nm]
Stall/ blocking torque
469 [53] in/lbs[Nm]
Thread in steel up to
3/8 in [M 10]
Thread in stainless steel
3/8 in [M 10]
Cone at drill shaft
B 12
Clamping neck
1-3/4 [43] in[mm]
Minimum clearance
7/8 [23] in[mm]
Cable with plug
16.4 [5] ft[m]
Weight according to EPTA
3.53 [1.60] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
82 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
93 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
96 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
3,0 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²

Downloads

Manual instruction

PDF 3,48 MB

Download Manual instruction (3,48 MB)

Price includes

  • 1 handle
  • delivery scope without tapping chuck.
