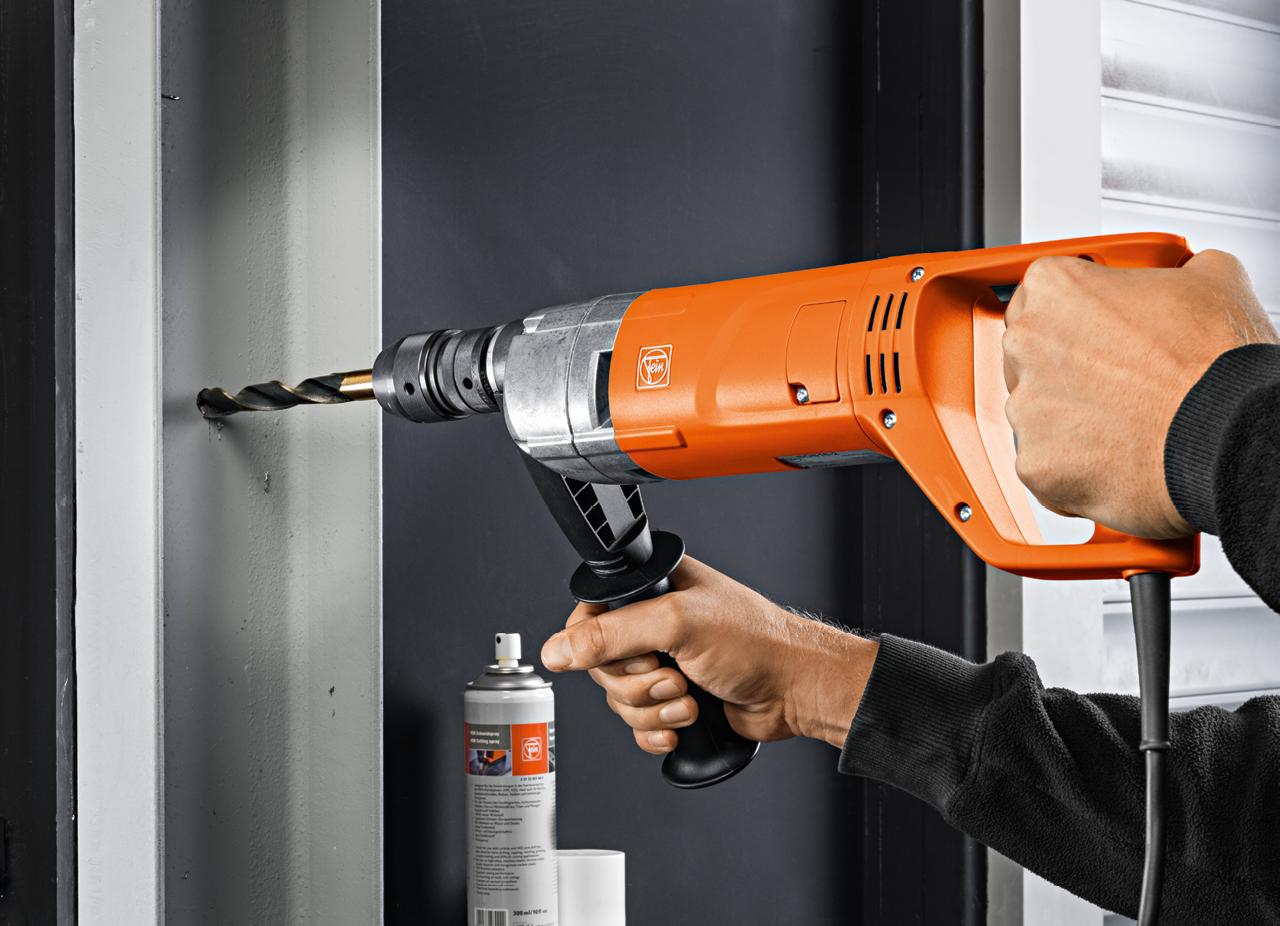

BOS 16
Rotary drill up to 16 mm
BOS 16
Rotary drill up to 16 mm
High-performance drill with speed adjustment for flexible operation in metal construction.
Product number: 7 205 47 60 09 0
Details
- Optimum speed for larger diameters and therefore increased productivity through greater machine efficiency.
- FEIN high performance motor with excellent speed stability for steady drilling progress in practically every application.
- Torsion-free, barrel-type motor housing with metal gear head for superb service life.
- Forward/reverse running and electronic speed preselection.
- Speed-controlled tacho electronics.
- Precision metal 3-jaw chuck.
- High concentricity.
- Retracting chuck jaws.
- Spade handle for optimal power transfer.
- Electronic start.
- ** Torque slip clutch.
Technical data
Technical data
Power consumption
1,200 W
Power output
680 W
Full load speed
0 - 520
No load speed
0 - 520
Torque at maximum output power
443 [50] in/lbs[Nm]
Stall/ blocking torque
443 [50] ** in/lbs[Nm]
Chuck capacity
1/8 [3] - 5/8 [16] in[mm]
Twist drill diameter capacity in steel
5/8 [16] in[mm]
Capacity in stainless steel Ø
3/4 [16] in[mm]
Capacity in light alloy Ø
3/4 [20] in[mm]
Hole-dia, steel hole saws
3-1/4 [80] in[mm]
Holesaw diameter capacity in wood
1-31/32 [50] in[mm]
Tapping
M 12
Max. countersinking dia.
1-1/4 [31] in[mm]
Drill shaft thread
1/2 in-20 UNF
Minimum clearance
1-1/16 [27] in[mm]
Cable with plug
13.1 [4] ft[m]
Weight
7.72 [3.50] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
83,4 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
91,4 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
97,5 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3-way
αh,D 2.4 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²
Downloads
Price includes
- 1 Supra SKE single-collar, metal fast-acting 3-jaw chuck
- 1 handle
Application
Product feature
- Forward/reverse operation
- Electronic start
- Speed preselection
- Torque slip clutch
