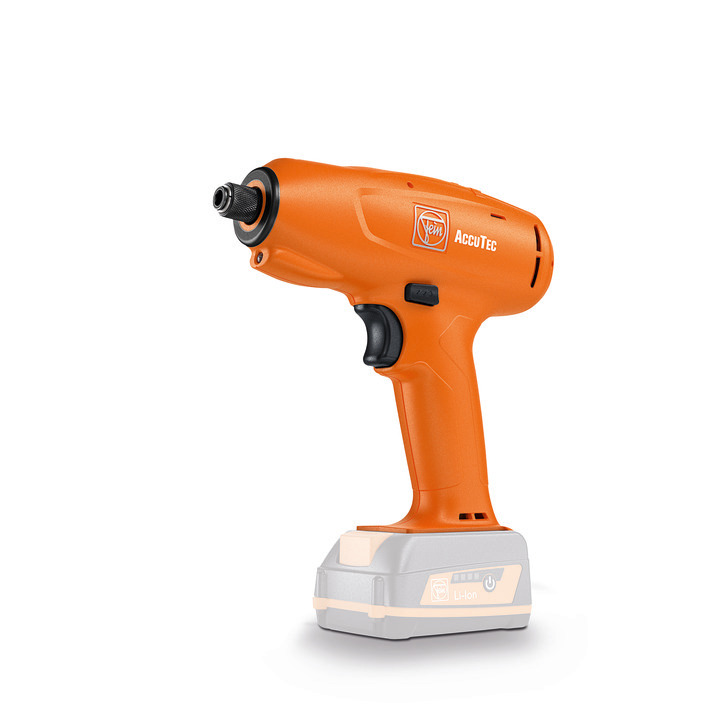

ASM 18-3 PC
Precision cordless screwdriver, mid-mounted handle, up to 27 [3] in/lbs[Nm]
ASM 18-3 PC
Precision cordless screwdriver, mid-mounted handle, up to 27 [3] in/lbs[Nm]
Parameterisable cordless screwdriver with mechanical shut-off clutch for industrial use.
Product number: 7 112 77 60 09 0
Details
- Process-capable according to ISO 5393, VDI/VDE 2647, CmK value > 1.67 at ± 10% (based on 6 Sigma).
- For soft and hard screwdriving applications.
- Programmable parameters (up to 5 increments): speed, direction of rotation, angle of rotation, torque threshold, time.
- Adjustable error criteria prevent manipulation of the screwdriving process.
- Infinitely variable speed setting.
- Forward / reverse running can be parameterized.
- Brushless motor with 30% greater efficiency and long service life.
- High speed stability for constant work progress.
- Full resilience in continuous operation up to maximum drive torque.
- Extra-short construction for use in narrow spaces.
- Low-fatigue working with slim grip and good balance.
- Optimized air guide: Air does not blow onto hand or in face.
- Extra-large, bright signal unit (OK / NOK).
- Optimal screwdriving site illumination.
- Wear-free accelerator switch.
- Tool color-coded via coding rings.
- Attachment option for hanger (balancer).
- Integrated screw counter for setting maintenance interval.
- Tool with storage battery charging status indicator (can be set).
- MultiVolt-interface. Cordless tool can be used with all FEIN li-ion batteries (12-18 V).
Technical data
Battery voltage
18 V
Battery interface
MultiVolt
Torque range
4 [0.5] - 27 [3] in/lbs[Nm]
No load speed
110 - 1,200 rpm
Tool mount
1/4 in Hexagon socket
Weight without battery
1.76 [0.80] lbs[kg]
Downloads
Price includes
- Delivery does not include battery, charger or torque wrench.
