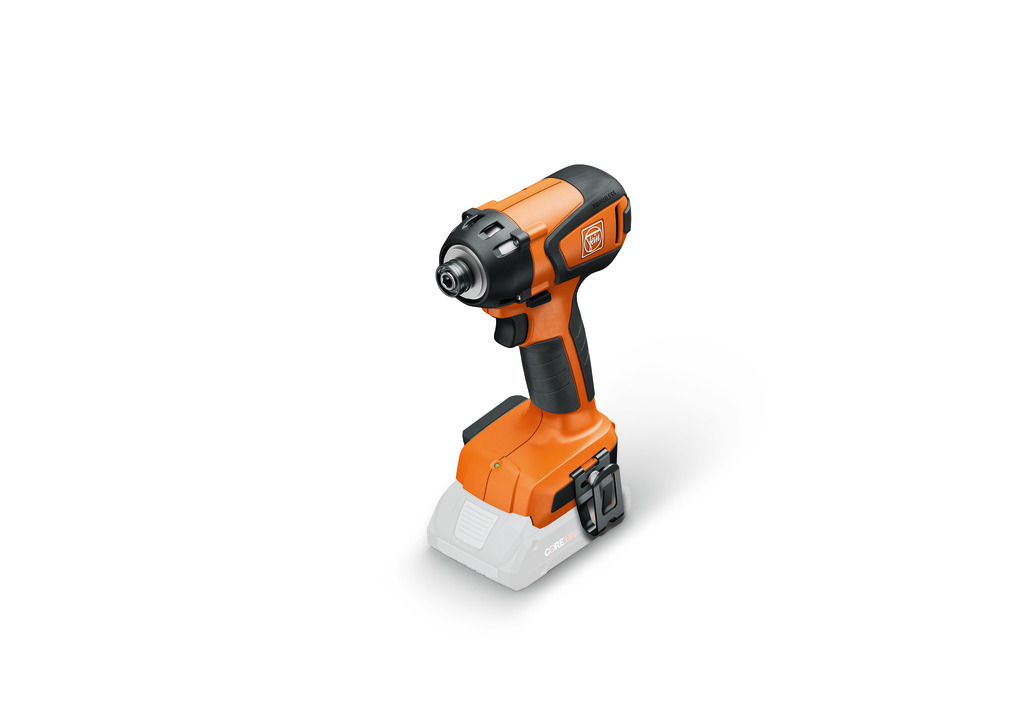

Cordless Impact Driver

Up to max. 1859 in/lbs with brushless motor and 6 torque settings. For universal screw applications including self-drilling screws.

More Details

Product number: 7 115 11 61 09 0

Buy Demonstration
Buy Demonstration

ASCD 18-200 W4 AS

Add to Shopping Cart

Details

  • Extreme precision: the ASCD 18-200 W4 AS with 6 electronic torque settings.
  • Brushless FEIN PowerDrive motor with 30% greater efficiency and life.
  • 1/4" hexagonal tool mount.
  • 10% higher torque in reverse.
  • Robust, solid metal impact gearbox.
  • Compact design.
  • Drives up to 700 11/16" [M18] screws with one battery charge (CORE 18 V 4 Ah).
  • Comes with a magnetic bit holder and belt clip.
  • Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.
  • COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
  • State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
  • CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
  • Perfectly equipped for any job with our L-BOXX system.

Technical data

Technical data
Battery voltage
18 V
Battery compatibility
Li-ion / CORE 18 V Li-ions
Battery interface
18 V AMPShare
Motor
brushless
No load speed
0 - 1 500
Impacts per minute
0 - 3 000
Max. torque
1859 [210] in/lbs[Nm]
Torque steps
6
Tool mount
1/4 in Hexagon socket
Wood screw dia.
3/8 [8] x 7-7/8 [200] in[mm]
Weight without battery
2.65 [1.20] lbs[kg]
Vibration and sound emission values
Sound pressure level LpA
96,1 dB
Measurement uncertainty of the measured value KpA
3 dB
Sound power level LWA
104,1 dB
Measurement uncertainty of the measured value KWA
3 dB
Peak sound value LpCpeak
118,1 dB
Measurement uncertainty of the measured value KpCpeak
3 dB
Vibration value 1 αhv 3-way
αh 13,4 m/s²
Measurement uncertainty of the measured value Kα
1,5 m/s²

Downloads

Product datasheet

PDF

Download Product datasheet (0,00 B)

Manual instruction

PDF 9,81 MB

Download Manual instruction (9,81 MB)

Price includes

  • 1 belt clip
  • 1 magnetic bit holder
  • 1 tool case (L-BOXX 136)
